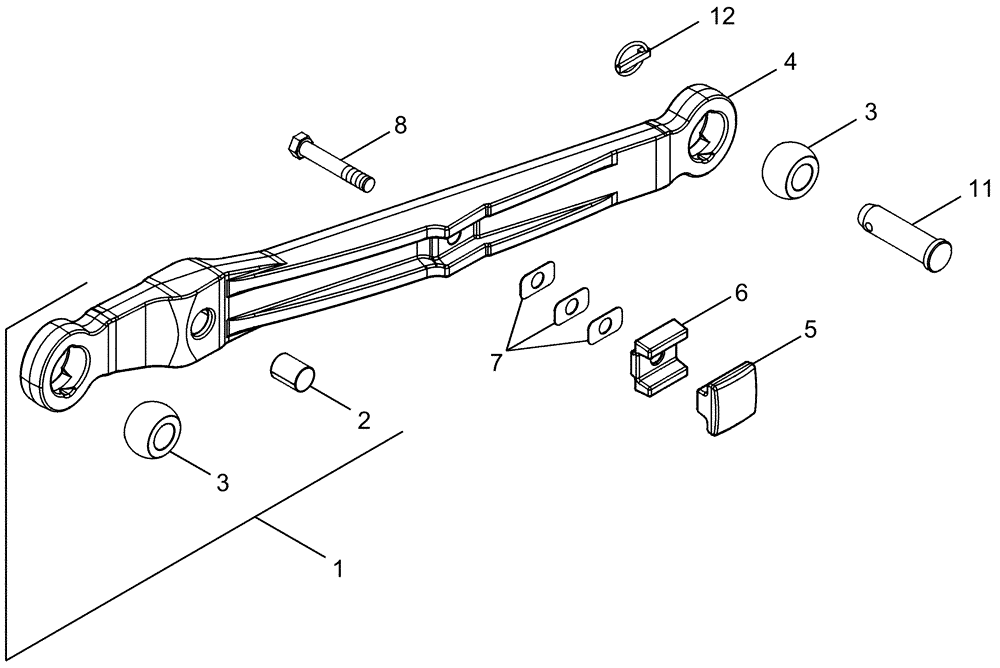

Запчасти Case IH MAGNUM 255 (09-49) - HITCH - LOWER LIFT LINKS (09) - CHASSIS/ATTACHMENTS

1

320473A1

LOWER LINK

Short Draft Arms, 970 mm (38 in) Center To Center, Inc. 2 - 4

2шт.

4

NSS

NOT SOLD SEPARAT

Arm

1шт.

2

237443A1

BUSHING,34.96mm ID x 38.9mm OD x 50mm L

1шт.

3

231298A1

BALL JOINT

2шт.

5

283291A4

BUMPER

2шт.

6

281805A4

SPACER

2шт.

7

238141A2

SHIM

6шт.

8

607-20120

BOLT,Hex, M20 x 120mm, Cl 10.9

2шт.

11

A75028

PIN,36.45mm OD x 138mm L

2шт.

Without Draft Control

1шт.

12

378704A1

LOCK PIN

2шт.
