Запчасти Case IH MAGNUM 255 (09-42) - HITCH - SUPPORTS AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS

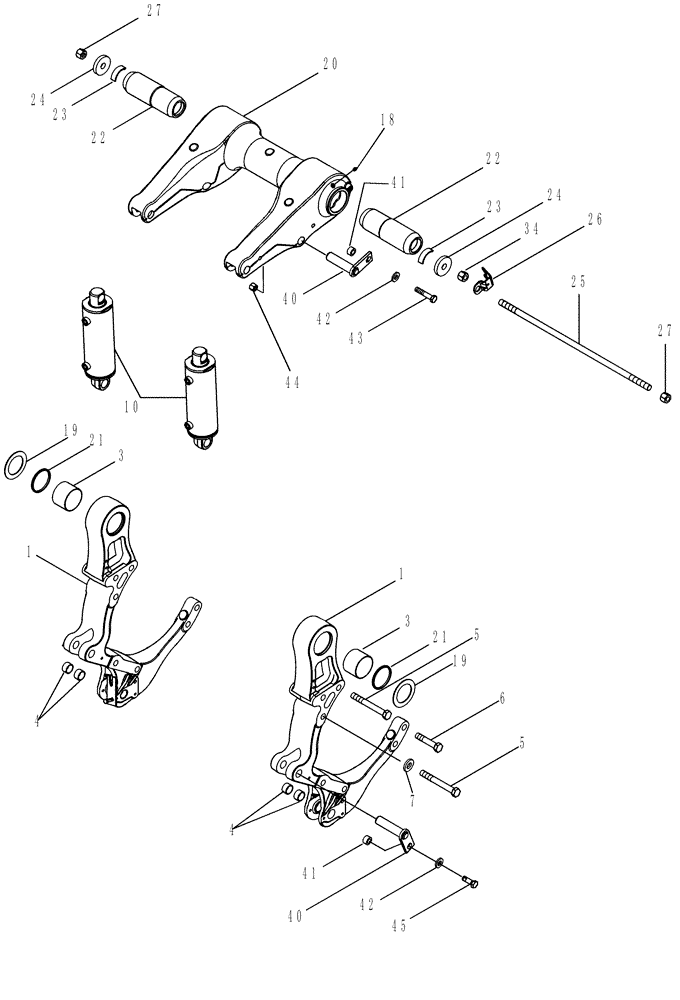

Схема запчастей Case IH MAGNUM 255 - (09-42) - HITCH - SUPPORTS AND ROCKSHAFT (09) - CHASSIS/ATTACHMENTS
24
27
6
26
7
24
25
23
18
41
42
4
40
20
19
3
21
4
22
40
43
23
44
22
5
42
3
34
5
41
1
1
19
10
21
27
45

Артикул

Название

Примечание

Количество

1

302887A5

BRACKET

2шт.

3

222355A1

BUSHING,100.25mm ID x 106.11mm OD x 75mm L

1шт.

4

1960223C1

BUSHING,37.15mm ID x 43.09mm OD x 24mm L

2шт.

5

828-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

10шт.

6

828-24120

BOLT,Hex, M24 x 3 x 120mm, Cl 10.9

4шт.

7

896-16024

WASHER,26mm ID x 56mm OD x 6mm Thk

2шт.

10

87542725

CYLINDER,Double Acting, 63.5mm Rod, 260.4mm Stroke

95 mm ID x 111 mm OD x 260 mm Stroke, Part Number Stamped on Cylinder

2шт.

See Figure 08-24

1шт.

10

87542725R

REMAN-HYD CYLINDER

MAGNUM 255 TRACTOR (EMERGING MARKET) (1/06)

2шт.

10

87542725C

CORE-HYD CYLINDER

Return Number

2шт.

18

219-16

LUBE NIPPLE,5/16" NPTF

2шт.

19

87572476

WASHER

Wear, Rocker Arm

2шт.

20

87308708

HITCH BRACKET

1шт.

21

222354A1

SEAL

4шт.

22

251386A1

PIN,99.98mm OD x 299mm L

2шт.

23

220598A3

SNAP RING

6шт.

24

220599A2

WASHER

2шт.

25

220600A2

ROD

1шт.

26

241889A3

BRACKET

1шт.

27

832-10424

NUT,M24 x 3, Cl 8

2шт.

34

829-1424

NUT,M24, Cl 10

1шт.

40

391415A1

PIN,34.91mm OD x 154mm L

4шт.

41

414675A1

SPACER

4шт.

42

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

43

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

2шт.

44

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

45

806-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

2шт.

Выбрано товаров: 27
