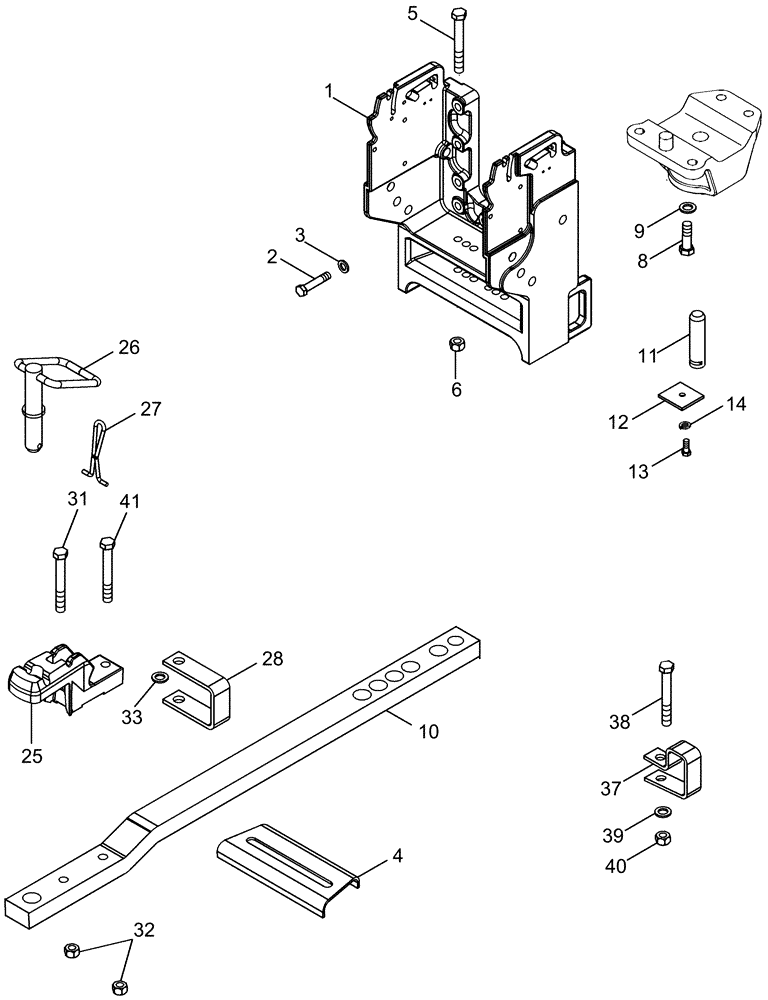

Запчасти Case IH MAGNUM 255 (09-41) - DRAWBAR AND HAMMERSTRAP - STANDARD (09) - CHASSIS/ATTACHMENTS

1

251788A3

FRAME,Hitch

1шт.

2

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

10шт.

3

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

4

238495A3

PLATE

1шт.

5

827-16160

BOLT,Hex, M16 x 2 x 160mm, Cl 10.9

2шт.

6

832-10416

NUT,M16 x 2, Cl 8

2шт.

7

87680423

BRACKET

1шт.

8

828-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9

4шт.

9

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

10

87358323

SWINGING DRAWBAR

50 mm

1шт.

11

1982103C1

PIN,34.87mm OD x 140mm L

1шт.

12

67828C1

RETAINER

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

25

275055A3

TOW HOOK,247.65mm L x 76.2mm W x 44.45mm Thk, 92mm Offset

1шт.

26

275056A3

HITCH PIN,31.75mm OD x 200mm L

1шт.

27

232617A1

LATCH

1шт.

28

449666A1

SUPPORT ASSY.

1шт.

31

827-20140

BOLT,Hex, M20 x 2.5 x 140mm, Cl 10.9

1шт.

32

829-1420

NUT,M20, Cl 10

2шт.

33

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

1шт.

37

348405A2

SUPPORT

1шт.

38

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

39

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

1шт.

40

829-1420

NUT,M20, Cl 10

1шт.

41

827-20130

BOLT,Hex, M20 x 2.5 x 130mm, Cl 10.9

1шт.
