Запчасти Case IH MAGNUM 255 (09-39) - AIR CONDITIONING - DUCTS (09) - CHASSIS/ATTACHMENTS

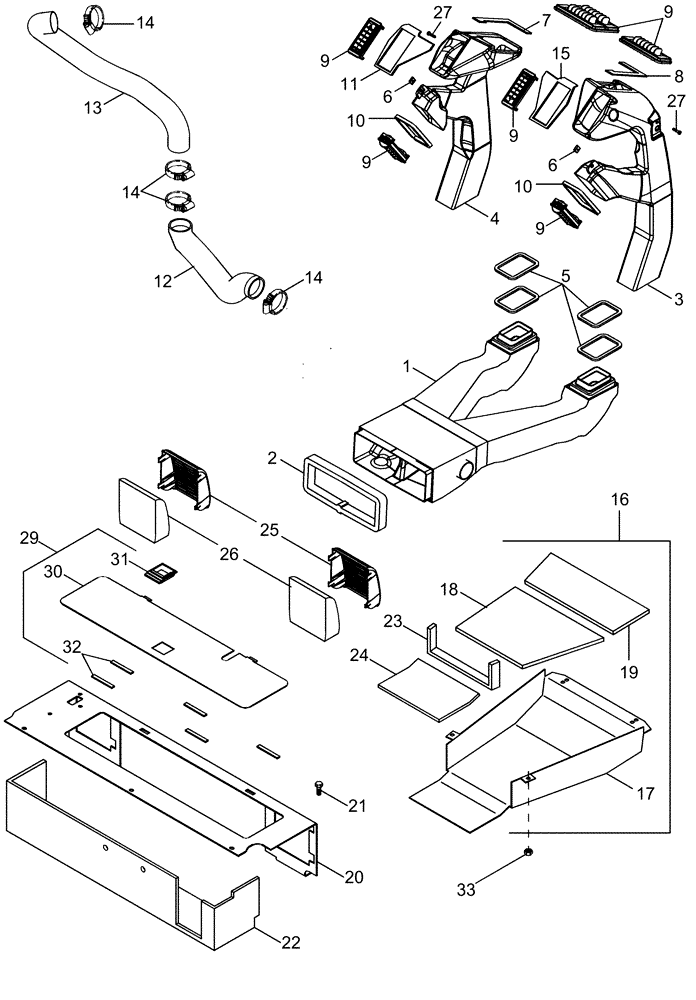

Схема запчастей Case IH MAGNUM 255 - (09-39) - AIR CONDITIONING - DUCTS (09) - CHASSIS/ATTACHMENTS
33
12
10
2
29
18
9
26
25
14
6
9
7
22
11
1
5
27
9
13
21
19
9
24
4
27
15
14
8
17
9
32
16
20
31
6
14
10
3
30
23

Артикул

Название

Примечание

Количество

1

87308202

DUCT

main supply, Inc. 2

1шт.

2

326665A1

SEALING STRIP,51mm W x 889mm L x 8mm Thk

1шт.

3

84162547

DUCT

Right Hand

1шт.

4

87310029

DUCT

Left Hand

1шт.

5

87452817

GASKET

Front Supply Duct

4шт.

6

131-839

SPRING NUT,U, #10-16, Panel type

2шт.

7

87310033

GASKET

Duct Defrost, LH

1шт.

8

87310034

GASKET

Duct Defrost, RH

1шт.

9

363882A1

VENT

7шт.

10

87456015

GASKET

Foot Louver

2шт.

11

87310035

GASKET

Duct Face Louver, LH

1шт.

12

256331A2

HOSE

Left Hand

1шт.

13

303732A1

TUBE

Left Hand

1шт.

14

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

4шт.

15

87310036

GASKET

Duct Face Louver, RH

1шт.

16

87377042

PAN

Duct, Inc. 17, 18, 19, 23 and 24

1шт.

17

NSS

NOT SOLD SEPARAT

PAN, Duct

1шт.

18

87451616

FOAM INSULATION

Duct Pan

1шт.

19

87451617

FOAM INSULATION

Duct Pan, Front

1шт.

20

87323828

EXTENSION

1шт.

21

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

5шт.

22

84158539

FOAM INSULATION

1шт.

23

87451618

SEALING STRIP,576.8mm L

Duct Pan

1шт.

24

87307956

FOAM INSULATION

Duct Pan, Rear

1шт.

25

301180A3

VENT (AIR)

2шт.

26

293615A1

FILTER

2шт.

27

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

2шт.

29

87442171

COVER

Inc. 30 - 32

1шт.

30

87442170

COVER

1шт.

31

406718A1

LATCH

1шт.

32

412425A1

SEAL

5шт.

33

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

Выбрано товаров: 32
