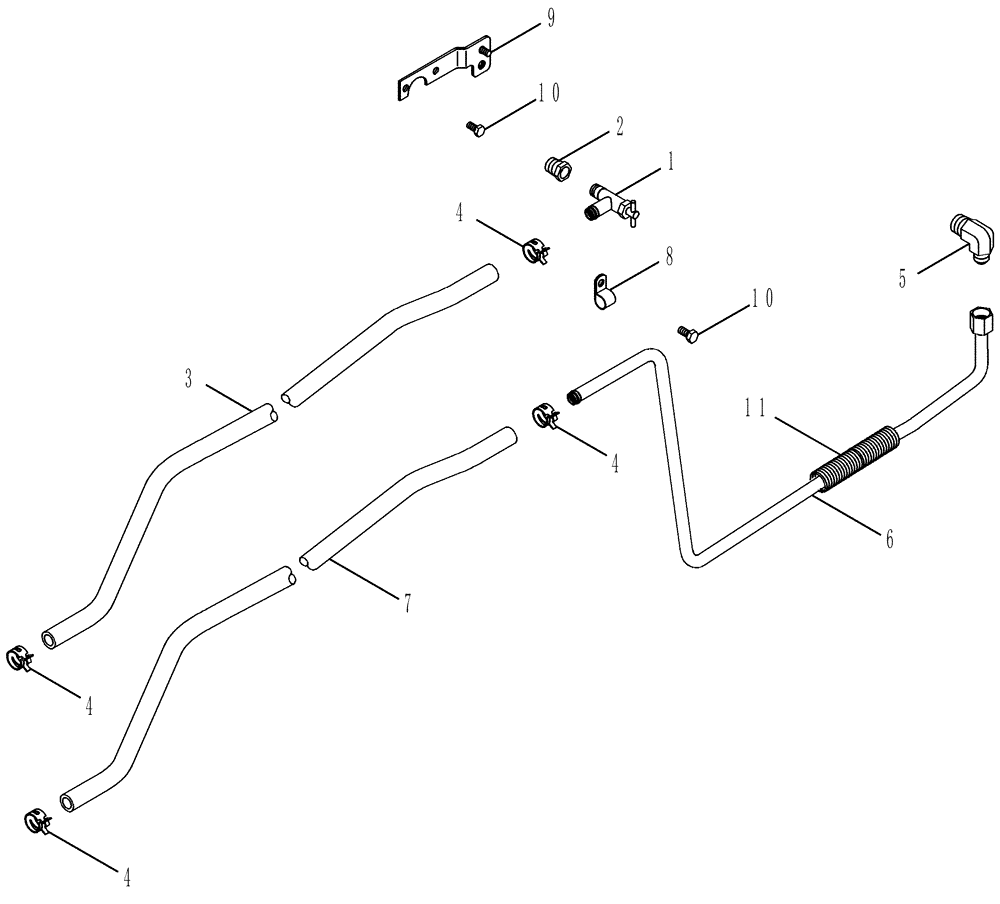

Запчасти Case IH MAGNUM 255 (09-35) - HEATER SYSTEM (09) - CHASSIS/ATTACHMENTS

1

301803R1

SHUT-OFF VALVE

1шт.

2

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

3

1974656C1

HEATER HOSE,15.50 mm ID x 1956.00 mm

Heater Supply

1шт.

Cut From 97252C1

1шт.

4

1954736C1

HOSE CLAMP,#24

4шт.

5

87429524

ELBOW

1шт.

6

84159642

HEATER TUBE,15.90 mm OD

Heater Return

1шт.

7

1500341C2

HEATER HOSE,15.50 mm ID x 2019.00 mm

Heater Supply

1шт.

Cut From 97252C1

1шт.

8

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

9

87421281

BRACKET

1шт.

10

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

11

87723153

CONDUIT

27 ID x 460 mm (1 in ID x 18 in)

1шт.
