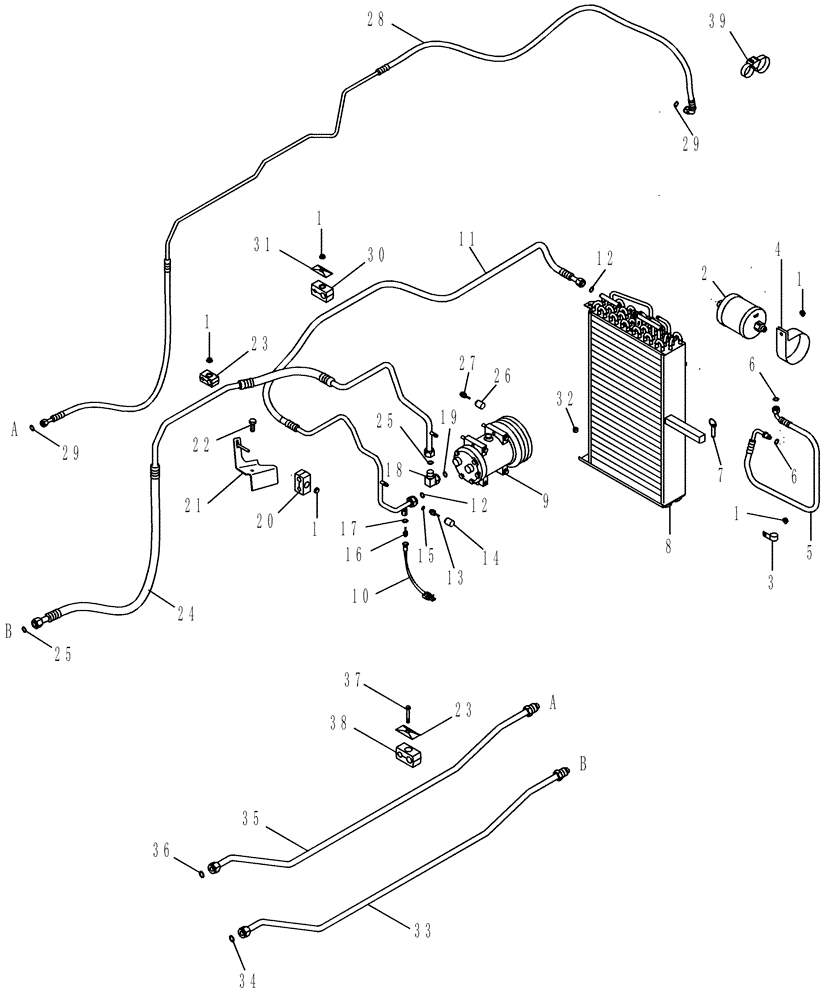

Запчасти Case IH MAGNUM 255 (09-34) - AIR CONDITIONING - CONDENSER (09) - CHASSIS/ATTACHMENTS

1

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

5шт.

2

295006A1

RECEIVER-DRYER

HFC - 134a

1шт.

3

516-22158

CLAMP,J, 11/16" Insul, 5/16" Bolt

1шт.

4

87361944

CLAMP

Receiver - Dryer

1шт.

5

87312057

A/C HOSE,7.9mm ID x 864mm L

Condenser to Dryer, Inc. 6

1шт.

6

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

2шт.

7

86017630

HITCH PIN,9.53mm OD x 50.55mm L

1шт.

8

87360035

CONDENSER

Condenser and Fuel

1шт.

9

86993463

AIRCOND. COMPRESSOR

1шт.

9

86993463GV

AIRCOND. COMPRESSOR

Value

1шт.

9

86993463R

REMAN-A/C COMPRESSOR

Inc.- 4 Cross Bolt Mounting Lugs, w/6 In. OD Pulley For 8 Rib Poly-V Belt

1шт.

9

86993463C

CORE-A/C COMPRESSOR

Return Number

1шт.

10

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

11

87361937

HOSE ASSY.

Discharge, Inc. 12 - 17

1шт.

12

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

13

414082A1

CORE

1шт.

14

414080A1

CAP,M10 x 0.75 x 22.35mm L, Black

1шт.

15

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

16

1250594C2

CORE

1шт.

17

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16

1шт.

18

429210A1

ELBOW

Inc. 19

1шт.

19

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

20

109619A1

CLAMP

1шт.

21

87756816

BRACKET

AC Shield

1шт.

22

86512421

CARRIAGE BOLT,Sq Nk, M8 x 60mm, Cl 8.8

2шт.

23

428385A1

SPECIAL CLAMP

CLAMP

2шт.

24

87361940

HOSE ASSY.

Suction, Inc. 25 - 27

1шт.

25

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

2шт.

26

414081A1

CAP,M8 x 1 x 17.3mm OD x 21.1mm L

1шт.

27

414083A1

VALVE

1шт.

28

87376704

HOSE ASSY.

Inc. 29

1шт.

29

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

2шт.

30

255212A1

CLAMP

1шт.

31

1347127C1

PLATE

2шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

33

87377036

HOSE ASSY.

Suction, Inc. 34

1шт.

34

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16

1шт.

35

87377035

HOSE ASSY.

Inc. 36

1шт.

36

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

1шт.

37

779-14645

SELF-TAP SCREW,Hex, M6.3 x 1.8 x 45mm

SCREW M6.3 x 45

1шт.

38

384870A1

PLATE

1шт.

39

86991000

CLAMP

1шт.
