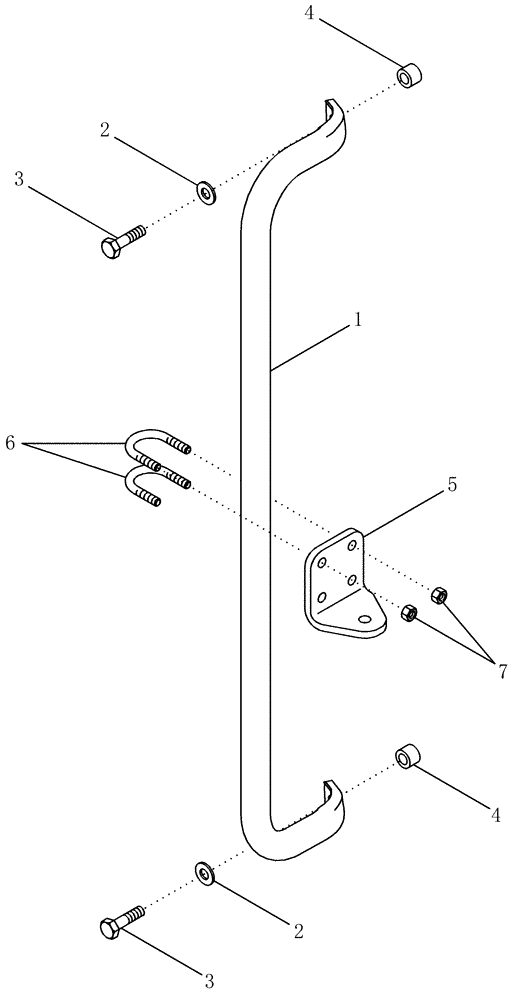

Запчасти Case IH MAGNUM 255 (09-32) - MONITOR MOUNTING - CAB A POST (09) - CHASSIS/ATTACHMENTS

1

369275A1

TUBE

1шт.

2

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

3

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

4

371838A1

SPACER,9.5mm ID x 19.1mm OD x 10mm Thk

2шт.

5

87530660

BRACKET

1шт.

6

87526197

U-BOLT,1/4" - 20 x 1", Round, 1-1/8" W, 2" L

1/4 in

2шт.

7

425-104

NUT,1/4"-20, Cl 5

4шт.
