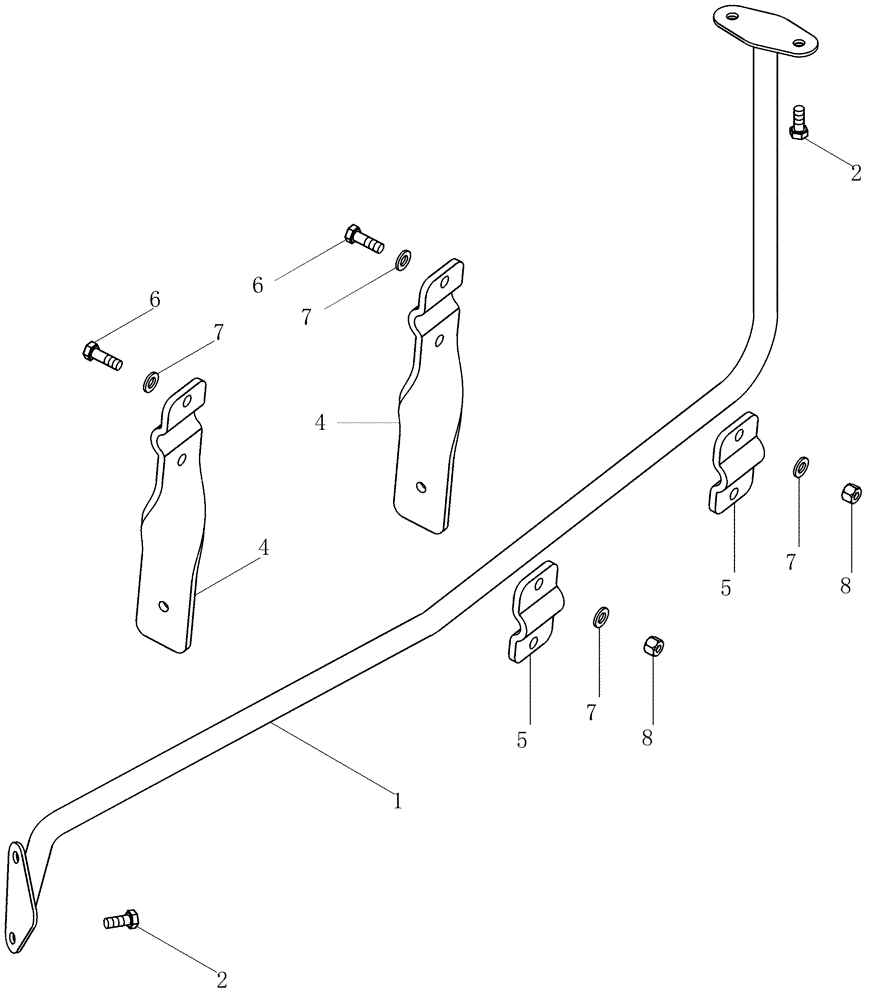

Запчасти Case IH MAGNUM 255 (09-31) - MONITOR MOUNTING - CAB ROOF (09) - CHASSIS/ATTACHMENTS

1

87439072

MOUNT

1шт.

2

863-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

4шт.

4

103213A1

HOLDER

2шт.

5

103226A1

CLAMP

2шт.

6

514-633

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

7

256402A1

SPECIAL WASHER,9mm ID x 16mm OD x 1.6mm Thk

9 x 17 x 1,6 mm

8шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.
