(09-28) - SUSPENSION ASSEMBLY - SEAT

Запчасти Case IH MAGNUM 255 (09-28) - SUSPENSION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS

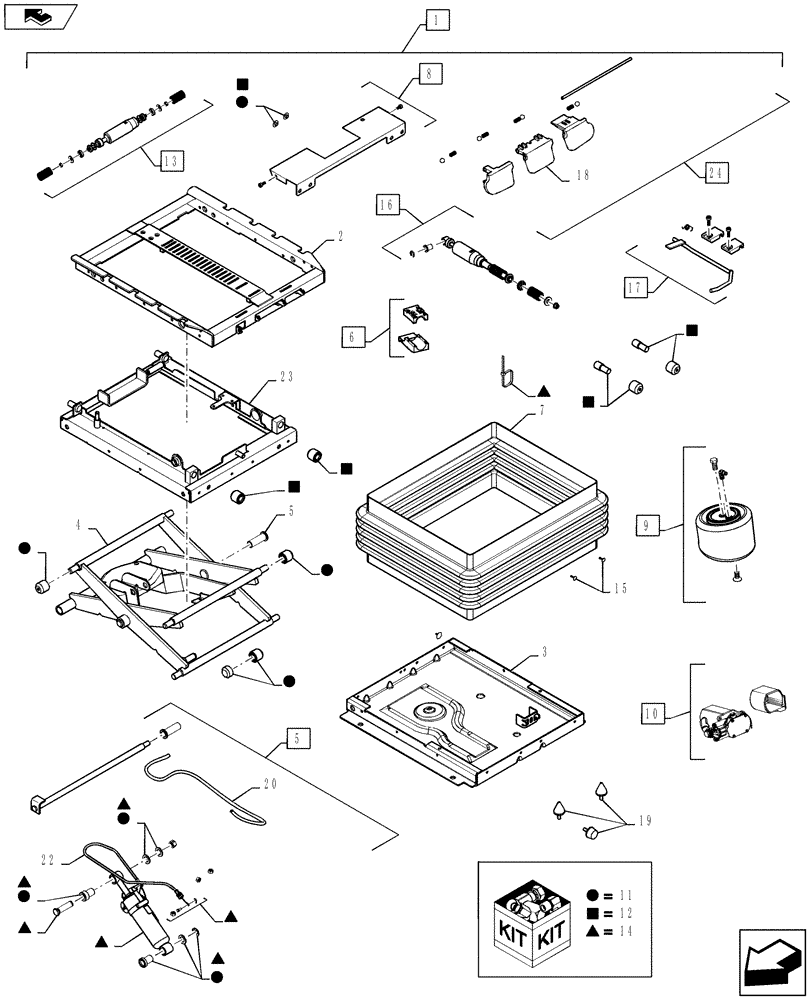

Схема запчастей Case IH MAGNUM 255 - (09-28) - SUSPENSION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS
5
14
17
13
14
1
10
16
2
9
22
12
24
6
11
14
5
19
11
14
12
11
7
12
3
12
12
20
11
12
14
18
11
4
15
11
8
14
12
11
14
11
14
11
14
23
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87395380

SUSPENSION

Inc. 2 - 24

1шт.

2

87395392

HOUSING

Upper

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

1шт.

5

302033A1

SHAFT

1шт.

6

87347944

SERVICE KIT

Harness, Not Shown

1шт.

See Figure 09-27

1шт.

7

87347943

SERVICE KIT

Suspension Boot

1шт.

8

302029A2

PLATE

1шт.

9

333279A2

KIT

Air Spring

1шт.

10

87347951

SERVICE KIT

Air Compressor

1шт.

11

87347945

BEARING ASSY

Suspension Bearing And Rollers

1шт.

12

87347946

SERVICE KIT

Isolator Rollers

1шт.

13

87395394

SERVICE KIT

Lateral Isolator Shock Absorber

1шт.

14

447956A1

KIT

Suspension Shock Absorber

1шт.

15

333659A1

PACKAGE,SERVICE

Boot Pin

1шт.

16

87395395

KIT

Fore And Aft Shock Absorber

1шт.

17

373470A1

PACKAGE,SERVICE

Fore And Aft Isolator Control

1шт.

18

373473A1

PACKAGE,SERVICE

Lateral Isolator Control

1шт.

19

333295A1

BUMPER

Suspension Bumper

1шт.

20

87396231

SERVICE KIT

Tube And Fitting

1шт.

21

333296A1

SERVICE KIT

Fore And Aft Isolator Shock Block, Not Shown

1шт.

22

87347955

CABLE

Suspension Shock Cable

1шт.

23

87395393

HOUSING

1шт.

24

373469A1

PACKAGE,SERVICE

Knobs, Suspension

1шт.
