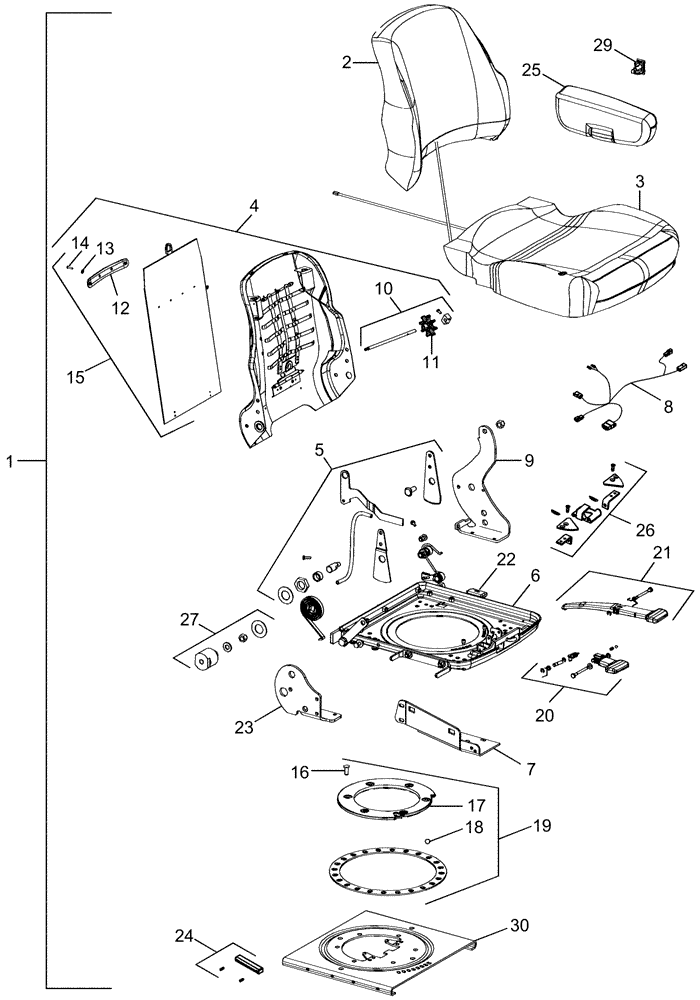

Запчасти Case IH MAGNUM 255 (09-27) - CUSHION ASSEMBLY - SEAT (09) - CHASSIS/ATTACHMENTS

1

87347872

SEAT ASSY.

Cloth, Inc. 1 - 30, 34, 35

1шт.

2

373476A1

CUSHION

Cloth

1шт.

3

87347893

SEAT CUSHION

Cloth, Inc. 34

1шт.

4

86994155

ASSEMBLY

Backrest, Inc. 10, 15

1шт.

5

86994165

SEAT ACCESSORY

Recliner Kit, Inc. 22

1шт.

6

NSS

NOT SOLD SEPARAT

PAN, Seat

1шт.

7

86994157

BRACKET

Console Mount, Front

1шт.

8

87347944

SERVICE KIT

HARNESS, Seat and Suspension

1шт.

9

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

10

87308130

SEAT BACK ADJUST DEV

Lumbar

1шт.

11

87037462

SEAT BACK ADJUST DEV

Lumbar

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT, Manual Holder

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, 1/8 x 23/64 x 3/64

4шт.

14

NSS

NOT SOLD SEPARAT

RIVET, Pop, 1/8

4шт.

15

86994172

SERVICE KIT

Operators Manual, Cloth, Inc. 12, 13, 14

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT, Swivel Retainer

6шт.

17

NSS

NOT SOLD SEPARAT

RETAINER, Swivel

1шт.

18

NSS

NOT SOLD SEPARAT

BALL, 1/2

24шт.

19

87347936

SERVICE KIT

Swivel, Inc. 16, 17,18

1шт.

20

87347942

SERVICE KIT

Swivel Control; Does Not Include Control Cable, Order Seat Top Assy

1шт.

21

87347941

SERVICE KIT

Slide Control

1шт.

22

87416475

KNOB

Recliner Control

1шт.

23

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

24

302016A1

PACKAGE,SERVICE

Slide Pucks

1шт.

25

87347939

SERVICE KIT

Armrest, Left Hand, Cloth

1шт.

26

87347934

LATCH

Slide

1шт.

27

87396230

BUSHING

KIT,Console

1шт.

29

87347940

ROCKER SWITCH

Air Control

1шт.

30

87347956

SERVICE KIT

Swivel

1шт.
