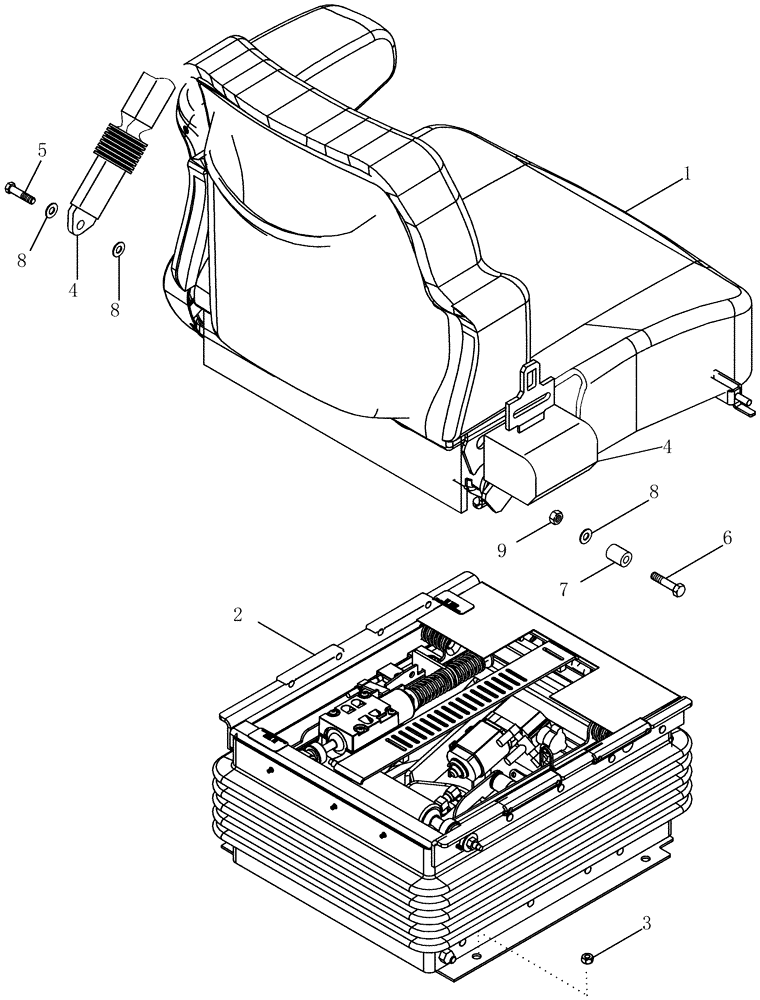

Запчасти Case IH MAGNUM 255 (09-26) - SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

87454957

SEAT ASSY.

Cloth, Inc. 1 - 9

1шт.

1

87347872

SEAT ASSY.

Cloth

1шт.

See Figure 09-27

1шт.

2

87395380

SUSPENSION

1шт.

See Figure 09-28

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

4

444877A1

SAFETY BELT ,50.8mm W x 1737.86mm L

1шт.

5

806-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

1шт.

6

806-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9

1шт.

7

87313413

TUBE SPACER

1шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

9

829-1312

NUT,M12 x 1.75, Cl 10

1шт.
