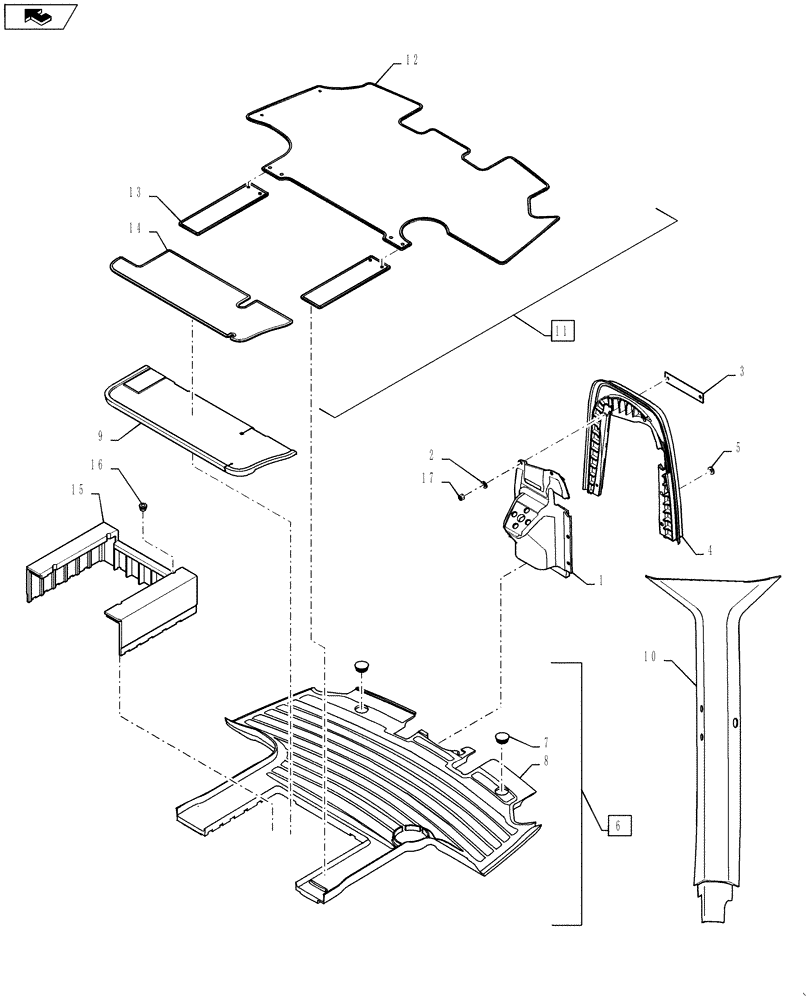

Запчасти Case IH MAGNUM 255 (09-22) - CAB - FLOOR MAT AND INSULATION (09) - CHASSIS/ATTACHMENTS

1

446820A2

PARTITION

Firewall, Inner

1шт.

2

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

1шт.

3

446824A2

STRAP

1шт.

4

87447761

COVER

Firewall, Outer

1шт.

5

495-81121

WASHER,.344" x 1 1/2" x .060"

2шт.

6

84137774

FLOOR MAT

Inc. 6

1шт.

7

281848A1

PLUG

2шт.

8

NSS

NOT SOLD SEPARAT

Mat, Floor

1шт.

9

87442168

COVER

Shelf

1шт.

10

355098A1

TRIM PANEL

1шт.

11

87417637

FLOOR MAT

Inc. 12 - 14

1шт.

12

87417636

FLOOR MAT

Front

1шт.

13

357074A1

CARPET

Side

2шт.

14

357075A1

CARPET

Shelf

1шт.

15

254325A3

SKIRT

1шт.

16

182220A1

GROMMET

If Equipped

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.
