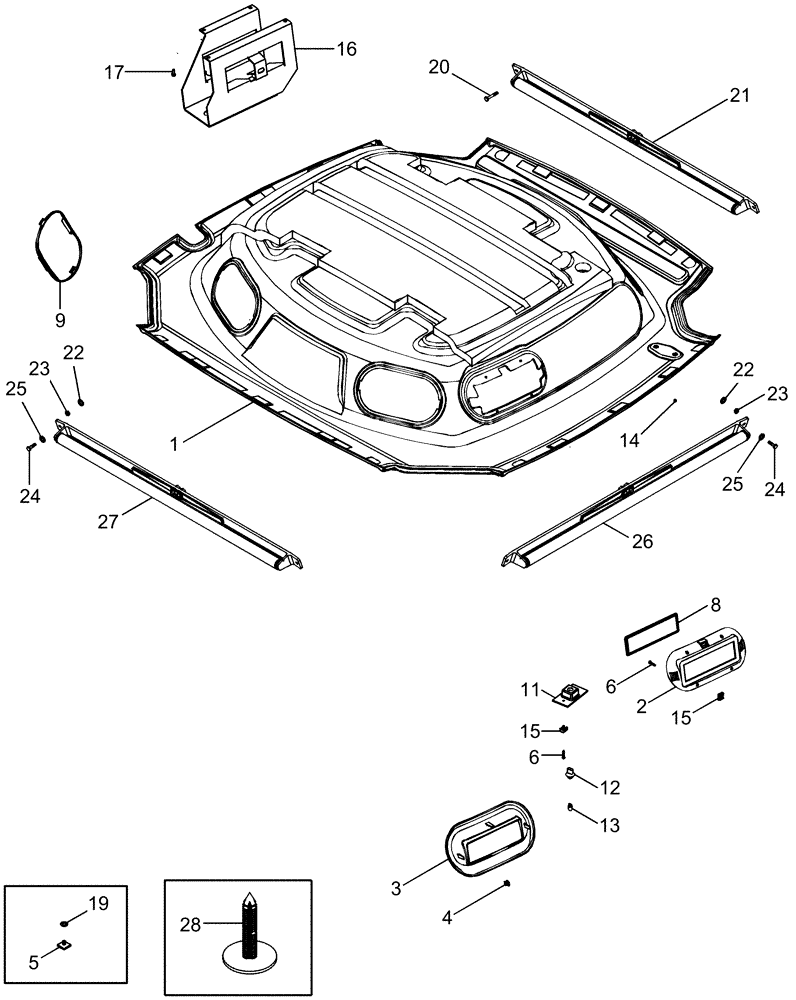

Запчасти Case IH MAGNUM 255 (09-21) - CAB - HEADLINER, STANDARD TRIM (09) - CHASSIS/ATTACHMENTS

1

87427663

ROOF LINING

1шт.

2

358790A1

MOUNT

Radio

1шт.

3

358772A1

BEZEL

1шт.

4

278316A2

CLIP

3шт.

5

87313359

FASTENER

12шт.

6

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

6шт.

8

1535219C1

COVER

Without Radio

1шт.

9

358683A1

GRILLE

Speaker Cover

4шт.

11

368143A1

LAMP

Inc. 12, 13

1шт.

12

107329C1

WIRE HARNESS

1шт.

13

D71346

TAIL LAMP,12V

1шт.

14

292675A1

PLUG

2шт.

15

442244A1

SPRING NUT

6шт.

16

428264A5

BRACKET

1шт.

17

758-5

SELF-TAP SCREW,Hex Hd, M5.5 x 15

4шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

20

780-14625

SELF-TAP SCREW,Hex Hd, M6.3 x 25

2шт.

21

87668030

VISOR, SUN

Front

1шт.

22

87033737

WASHER,9mm ID x 28mm OD x 3mm Thk

4шт.

23

87450324

NUT

4шт.

24

87030526

SCREW,Pan, #10 - 32 x 1"

4шт.

25

195-81034

WASHER,0.2" ID x 0.47" OD x 0.05" Thk

4шт.

26

87668031

VISOR, SUN

Right Hand Side

1шт.

27

87668032

VISOR, SUN

Rear

1шт.

28

87441605

FASTENER

Plug Side and Rear Sun Visor Holes

4шт.
