Запчасти Case IH MAGNUM 255 (09-20) - MIRRORS - ASN Z7RZ01152 (09) - CHASSIS/ATTACHMENTS

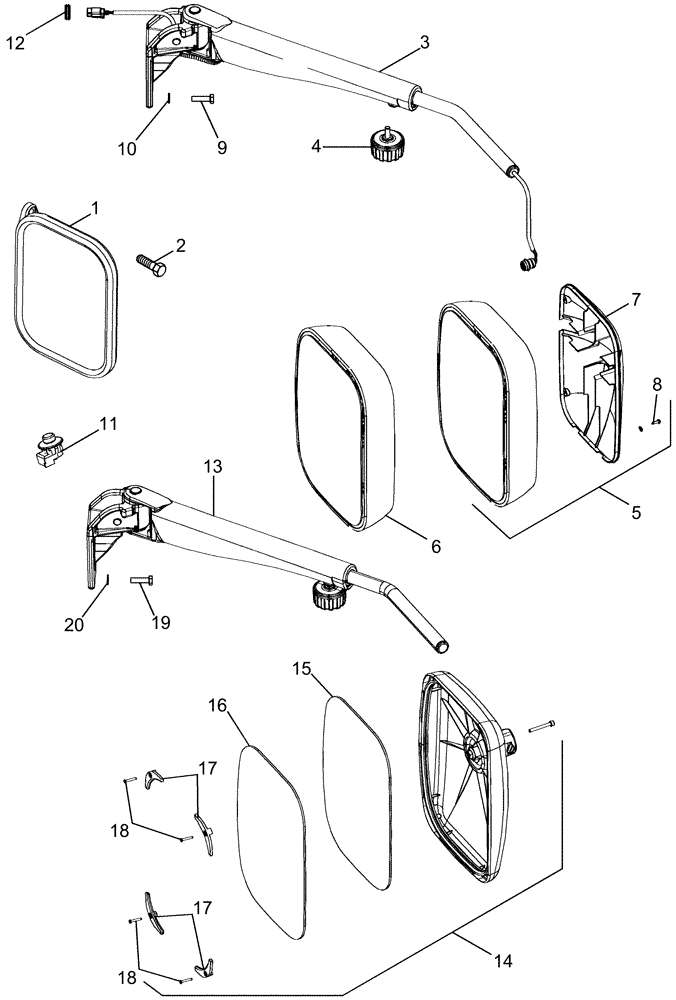

Схема запчастей Case IH MAGNUM 255 - (09-20) - MIRRORS - ASN Z7RZ01152 (09) - CHASSIS/ATTACHMENTS
17
18
14
9
18
20
3
2
16
8
1
12
19
7
15
4
13
11
6
5
17
10

Артикул

Название

Примечание

Количество

1

82036480

MIRROR

Interior

1шт.

2

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

2шт.

3

87350490

SUPPORT ASSY.

Right Hand, Remote Control, Inc. 4 (Shown)

1шт.

3

87350491

MIRROR ARM

Left Hand, Remote Control, Inc. 4

1шт.

4

87365131

KNOB

1шт.

5

87350492

RH MIRROR,238mm x 328mm

Right Hand Remote Control (Shown)

1шт.

5

87350493

LH MIRROR,238mm x 328mm

Left Hand Remote Control

1шт.

6

87531093

REPLACEMENT MIRROR

1шт.

7

87531075

COVER

Right Hand (Shown)

1шт.

7

87578865

COVER

Left hand

1шт.

8

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

8шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

11

280627A1

SWITCH, MIRROR ADJUS

Remote Control

1шт.

12

182045A1

GROMMET

2шт.

13

87350488

SUPPORT

Right Hand, Manual, Inc. 4 (Shown)

1шт.

13

87350489

MIRROR ARM

Left Hand, Manual, Inc. 4

1шт.

14

87350494

MIRROR ASSY.,240mm x 329mm

Manual, Inc. 15 - 18

2шт.

15

324437A1

REPLACEMENT MIRROR

1шт.

16

82035218

MIRROR,300mm x 200mm

Lens, Acrylic

1шт.

17

87531094

BRACKET

Manual, Mirror head

4шт.

18

15902707

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 19mm

4шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

6шт.

20

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

Выбрано товаров: 24
