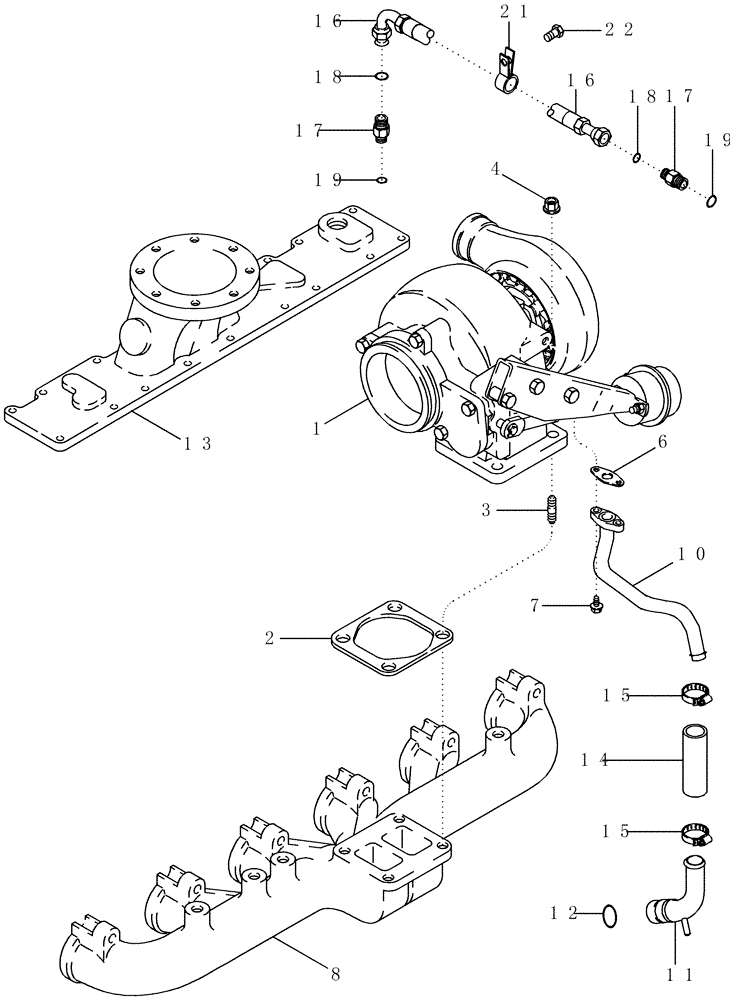

Запчасти Case IH MAGNUM 255 (02-13) - TURBOCHARGER SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

Turbocharger Assy

1шт.

See Figure 02-14

1шт.

2

J755843

GASKET,0.5mm Thk

1шт.

3

J818823

STUD

M10 x 40

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J937706

GASKET,0.79mm Thk

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

87405601

MANIFOLD

1шт.

See Figure 02-12

1шт.

10

86993028

TUBE,0.875" OD

1шт.

11

J931973

TUBE,0.875" OD

1шт.

12

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

13

J926044

COVER

1шт.

See Figure 02-12

1шт.

14

J286499

HOSE

76 mm (3 in)

1шт.

15

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

16

J282159

FLEXIBLE HOSE

1шт.

17

J922789

HYD CONNECTOR

Inc. 18, 19

2шт.

18

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

21

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1/2 ID

1шт.

22

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.
