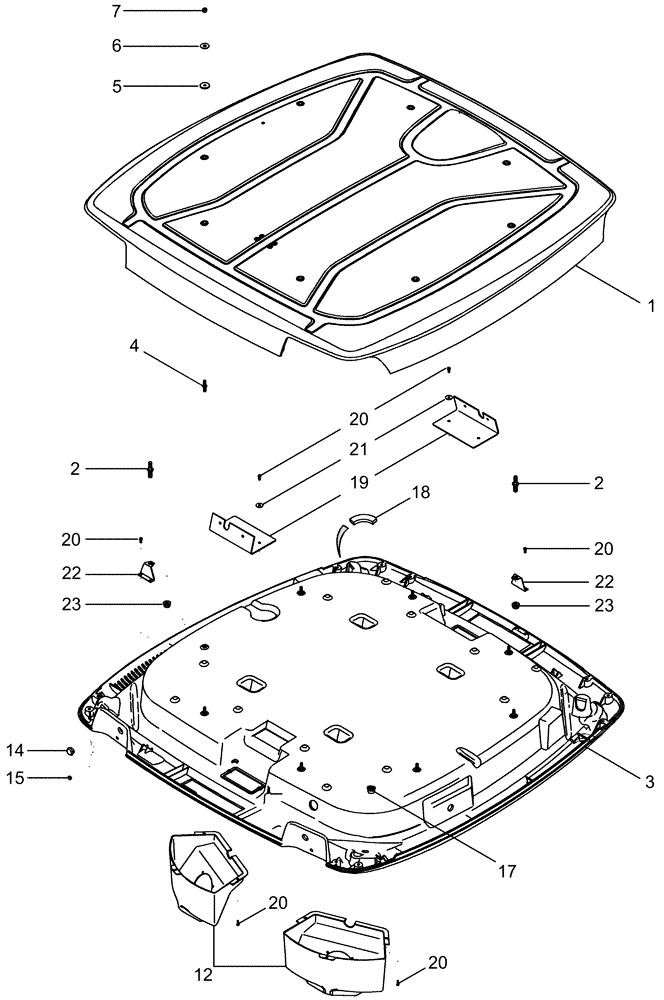

Запчасти Case IH MAGNUM 255 (09-12) - CAB - ROOF (09) - CHASSIS/ATTACHMENTS

1

433973A4

ROOF

Upper

1шт.

2

449901A1

STUD,M8 x 1.25 x 37.5mm OAL

2шт.

3

87419087

ROOF

Lower, Inc. 4, 19 - 22

1шт.

4

84322608

STUD

8шт.

5

221429A2

SPACER

8шт.

6

495-81140

WASHER,13/32" x 1 1/4" x .060"

8шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

12

433800A1

HOUSING

Speaker Cover

4шт.

14

353-411

PLUG,Dome, 1.000" hole, Nylon

2шт.

15

353-425

PLUG,0.437 Hole OD

7/16 in dia

2шт.

17

182220A1

GROMMET

1шт.

18

365219A1

FOAM INSULATION

1шт.

19

401110A2

BRACKET

2шт.

20

758-5

SELF-TAP SCREW,Hex Hd, M5.5 x 15

20шт.

21

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

22

449074A1

BRACKET

2шт.

23

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.
