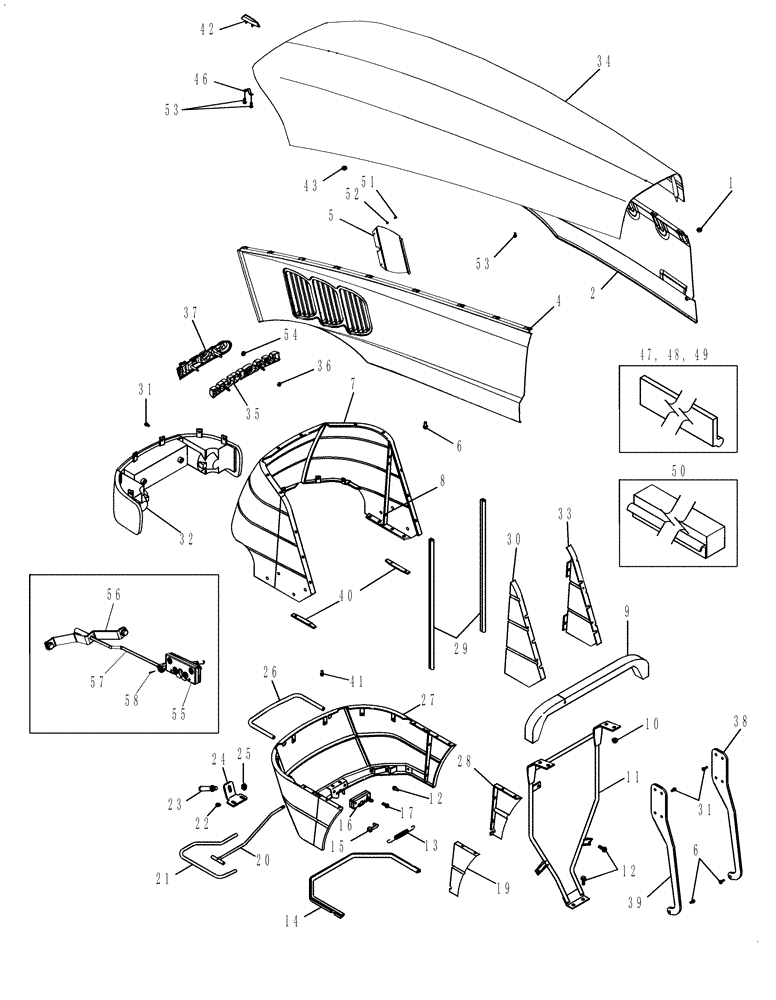

Запчасти Case IH MAGNUM 255 (09-08) - HOOD - TILTING (09) - CHASSIS/ATTACHMENTS

1

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

18шт.

2

87531726

PANEL

Hood Right Hand Side, Inc. 3 ,51 ,52

1шт.

3

87325986

GUARD

Right Hand, (Not Shown)

1шт.

4

87531725

PANEL

Hood Left Hand Side, Inc. 5 ,51 ,52

1шт.

5

87325983

GUARD

Left Hand

1шт.

6

844-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

10шт.

7

87565202

GRILLE

Upper Right

1шт.

8

369929A1

FASTENER

12шт.

9

87325973

INSULATOR

Hood

1шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

11

87685353

SUPPORT

1шт.

12

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

6шт.

13

87455797

TENSION SPRING

Latch

1шт.

14

87374635

RUBBER SEAL,1235mm L

Lower Grille

1шт.

15

86987940

CLEVIS PIN

, Serial Range: -ZARZ01218

1шт.

16

87454541

LATCH

Assembly, Hood Release, Serial Range: -ZARZ01218

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

19

87369357

INSULATING PANEL

PANEL, Lower Left

1шт.

20

87595777

ROD

Latch, Serial Range: -ZARZ01218

1шт.

21

87617635

HANDLE

Hood Lift

1шт.

22

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

6шт.

23

301081A1

BOLT

Striker

1шт.

24

87312069

STRIKER PLATE

1шт.

25

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

1шт.

26

87617634

HANDLE

Hood

1шт.

27

87617632

GRILLE

Lower

1шт.

28

87369358

INSULATING PANEL

Lower Right

1шт.

29

87340054

RUBBER SEAL,949mm L

Side

2шт.

30

87369354

PANEL

Upper Left

1шт.

31

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

24шт.

32

REF

INSTRUCTION

HEADLAMPS

1шт.

See Figure 04-22

1шт.

33

87369355

PANEL

Upper

1шт.

34

87327547

PANEL

Hood Upper, Inc. 42 - 45

1шт.

35

87456423

EMBLEM

MAGNUM

1шт.

36

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

37

87716230

EMBLEM

CASE-IH

1шт.

38

87385055

BRACKET

Support, RH

1шт.

39

87385054

BRACKET

Support, LH

1шт.

40

87367909

WEAR STRIP

2шт.

41

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

10шт.

42

87353799

GUIDE

Hood Sight

1шт.

43

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

46

87497514

SELF-TAP SCREW

Grille Mounting

2шт.

47

87394270

SEALING STRIP

Side, Top RH, Top LH

2шт.

48

87394269

RUBBER SEAL

Center, Top and Bottom

2шт.

49

87394271

SEALING STRIP

Side, Bottom RH, Bottom LH

2шт.

50

87394272

GASKET

Corner, Rear RH, Rear LH

2шт.

51

779-14395

SELF-TAP SCREW

4шт.

52

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

53

87497514

SELF-TAP SCREW

4шт.

54

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

55

84282114

LATCH

Assembly, Hood Release, Start Serial: ZARZ01218

1шт.

56

84282102

BRACKET

, Start Serial: ZARZ01218

1шт.

57

84282108

PUSH ROD

, Start Serial: ZARZ01218

1шт.

58

733-1610

COTTER PIN,M1.6 x 10

, Start Serial: ZARZ01218

1шт.
