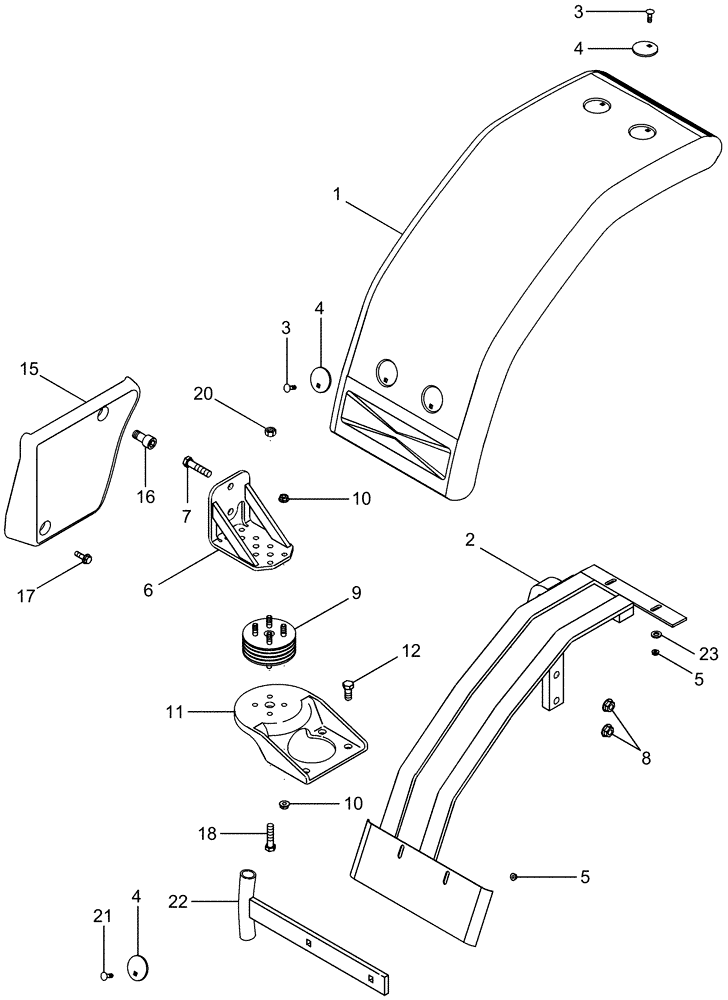

Запчасти Case IH MAGNUM 255 (09-05) - FENDERS - FRONT, WIDE (09) - CHASSIS/ATTACHMENTS

1

122212A1

FENDER

600 mm, Wide

2шт.

2

244031A3

SUPPORT ASSY.

Right Hand, Shown

1шт.

2

244030A3

SUPPORT ASSY.

Left Hand

1шт.

3

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

8шт.

4

1340559C2

SQ HOLE WASHER,8.71mm ID x 63.5mm OD x 4.76mm Thk

2-1/2

12шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

6

87427813

SUPPORT

2шт.

7

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

8

825-51416

FLANGE NUT,Flg, M16, Serr

4шт.

9

226690A2

RUBBER BUMPER

2шт.

10

825-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 8

16шт.

11

87437820

SUPPORT

2шт.

12

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

8шт.

15

253850A1

BUMPER

Right Hand, Shown

1шт.

15

255685A1

BUMPER

Left Hand

1шт.

16

565-111

SCREW,M20 x 40mm, Cl 8.8

2шт.

17

555-6

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

18

827-20100

BOLT,Hex, M20 x 2.5 x 100mm, Cl 10.9

2шт.

20

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

21

612-7

CARRIAGE BOLT,M8 x 40mm, Class 4.6

4шт.

22

87319913

BAR

2шт.

23

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

12шт.
