Запчасти Case IH MAGNUM 255 (09-02) - FRONT WEIGHTS - 45 KG (100 LB) (09) - CHASSIS/ATTACHMENTS

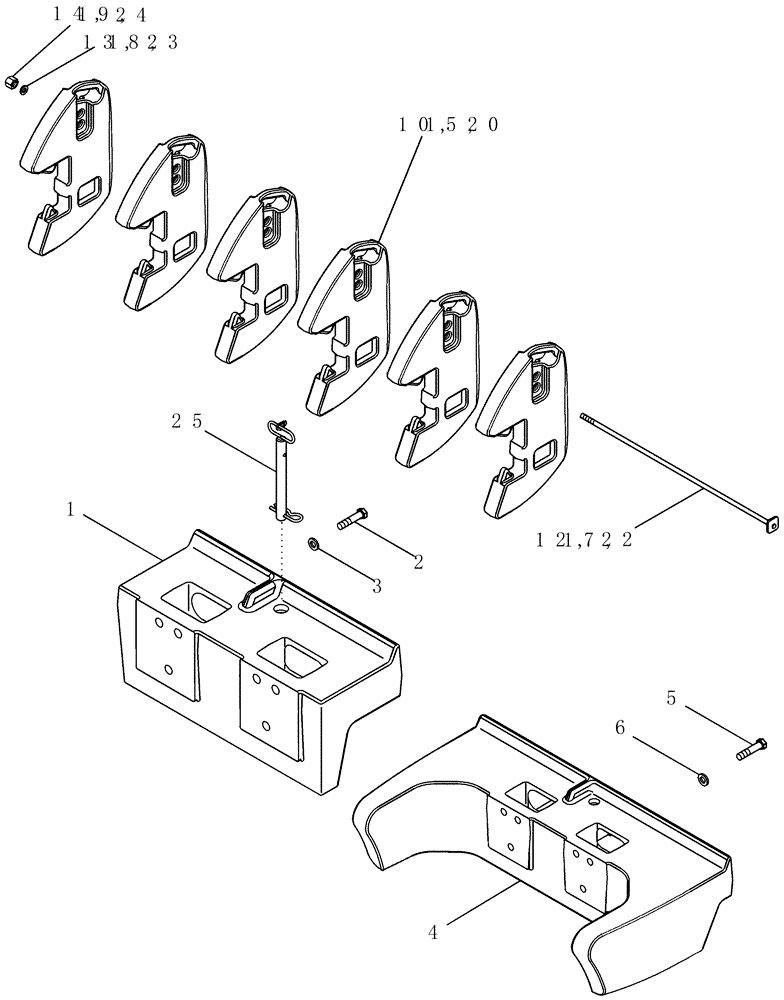

Схема запчастей Case IH MAGNUM 255 - (09-02) - FRONT WEIGHTS - 45 KG (100 LB) (09) - CHASSIS/ATTACHMENTS
1
3
4
23
22
24
5
2
6
25
20

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Small Support, Inc. 1 - 3

1шт.

Order 87435002 From Machinery Price List

1шт.

1

87448319

BRACKET

Small

1шт.

2

258504A1

BOLT

M20 x 90; 10,9

6шт.

3

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

REF

INSTRUCTION

Large Support, Inc. 4 - 6

1шт.

Order 87435001 From Machinery Price List

1шт.

4

87448323

WEIGHT CARRIER

Large

1шт.

5

258504A1

BOLT

M20 x 90; 10,9

6шт.

6

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

6шт.

719669016

DIA KIT, ADD PROD

270 Kg (600 lb), Inc. 10 - 14

1шт.

Order From Machinery Price List

1шт.

10

405846A3

WEIGHT

6шт.

Order From Machinery Price List

1шт.

12

87307687

ROD,THREADED

THREADED ROD 13.28 Inches

1шт.

13

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

14

832-10416

NUT,M16 x 2, Cl 8

1шт.

719670016

KIT

454 Kg (1000 lb), Inc. 15 - 19

1шт.

Order From Machinery Price List

1шт.

15

405846A3

WEIGHT

10шт.

Order From Machinery Price List

1шт.

17

87307686

TRUSS ROD

22.26 Inches

1шт.

18

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

19

832-10416

NUT,M16 x 2, Cl 8

1шт.

719671016

KIT

815 Kg (1800 lb), Inc. 20 - 24

1шт.

Order From Machinery Price List

1шт.

20

405846A3

WEIGHT

18шт.

Order From Machinery Price List

1шт.

22

87307685

TRUSS ROD

40.22 Inches

1шт.

23

896-16016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

24

832-10416

NUT,M16 x 2, Cl 8

1шт.

25

297750A2

PIN,32mm OD x 975.25mm L

1шт.

Выбрано товаров: 32
