Запчасти Case IH MAGNUM 255 (08-26) - POWER BEYOND VALVE ASSEMBLY (08) - HYDRAULICS

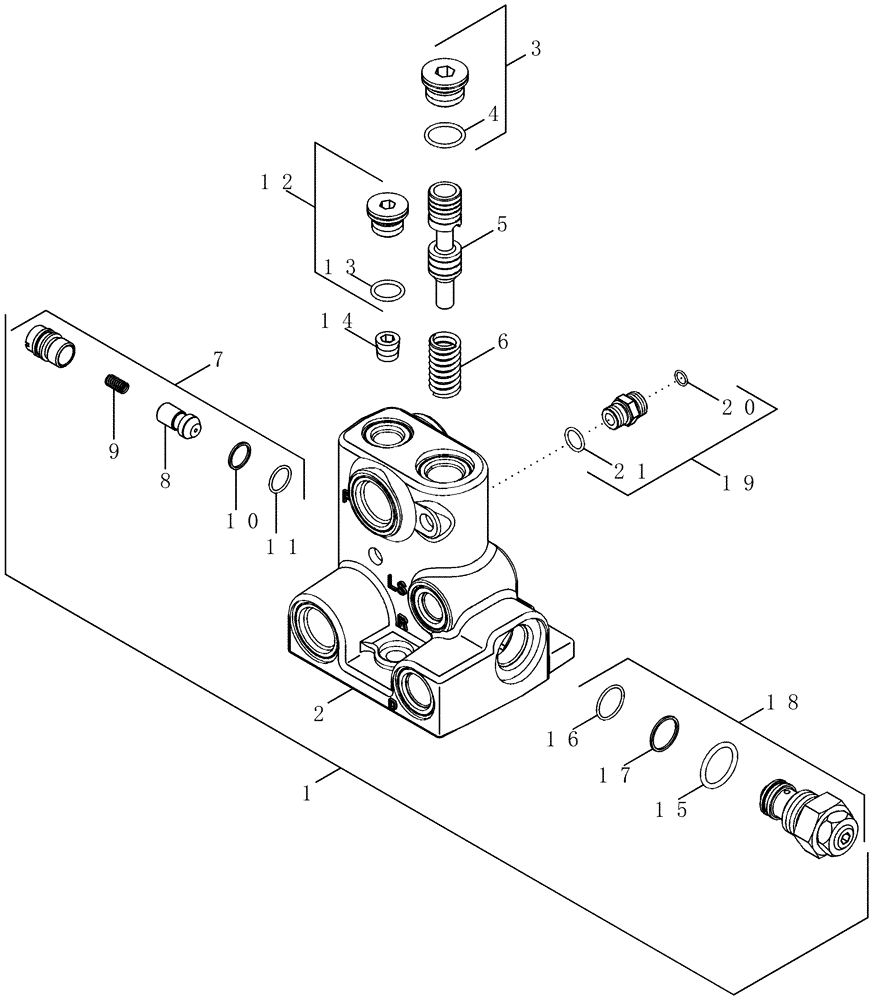

Схема запчастей Case IH MAGNUM 255 - (08-26) - POWER BEYOND VALVE ASSEMBLY (08) - HYDRAULICS
6
9
7
16
11
14
2
21
20
13
1
4
19
15
17
18
3
10
5
8
12

Артикул

Название

Примечание

Количество

1

87338964

HYDRAULIC VALVE

Power Beyond, Inc. 1 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

221579A1

PLUG,M22 x 1.5 ORB

Incl. 4

1шт.

4

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

5

86990388

SPOOL

1шт.

6

87441634

SPRING

1шт.

7

1542563C1

KIT

Inc. 8 - 11

1шт.

8

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

9

NSS

NOT SOLD SEPARAT

Spring

1шт.

10

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

11

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

Back Up

1шт.

12

221578A1

PLUG,M18 x 1.5 ORB

Incl. 13

1шт.

13

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

14

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

16

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

17

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

Back-Up

1шт.

18

315796A1

VALVE PRESSURE RELIE

Inc. 15 - 17

1шт.

19

87376154

HYD CONNECTOR

Orifice, Special, Inc. 20, 21

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 21
