Запчасти Case IH MAGNUM 255 (08-22) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS

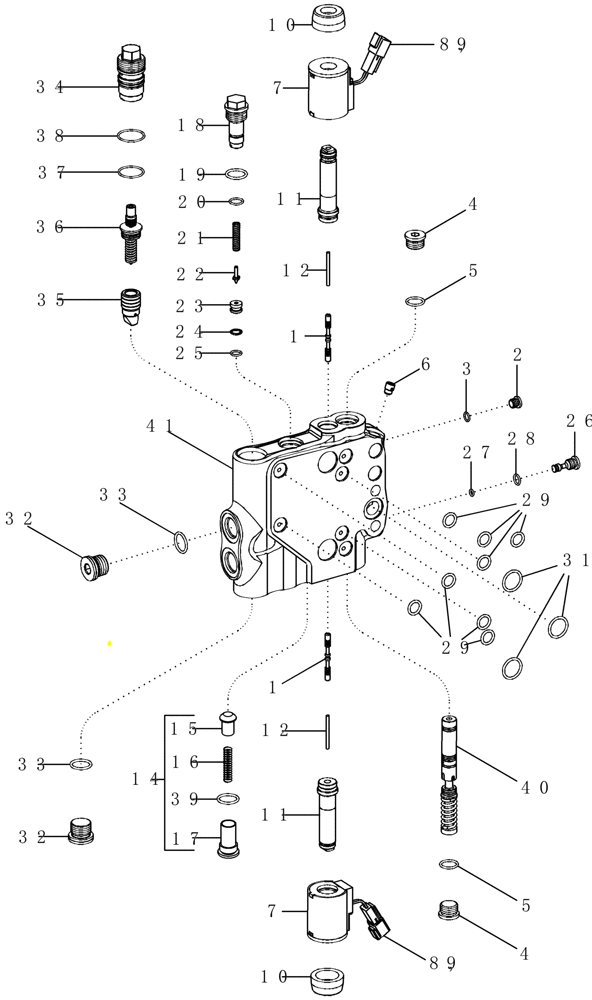

Схема запчастей Case IH MAGNUM 255 - (08-22) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS
41
18
15
35
29
12
2
33
20
5
11
9
19
10
14
28
9
26
23
1
16
27
4
33
7
32
24
36
7
31
21
34
12
25
22
37
6
29
1
17
5
38
39
4
11
40
3
10
32

Артикул

Название

Примечание

Количество

84164342

VALVE

Hitch, Inc. 1 - 41

1шт.

1

188104A1

SPOOL

2шт.

2

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 3

1шт.

3

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

4

218-5206

PLUG,Hex, 3/8"-24 ORB

Includes 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

373758A1

VALVE

1шт.

243254A1

KIT

Solenoid, Inc. 7 - 9

2шт.

7

188105A1

SOLENOID

1шт.

8

225318C1

ELEC CONNECTOR,2 Pin

1шт.

9

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

10

188106A1

NUT

2шт.

11

188117A1

CARTRIDGE,72.25mm OAL

2шт.

12

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

14

84164618

REPAIR KIT

Load Check, Inc. 15, 16, 17, 39

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET

1шт.

16

NSS

NOT SOLD SEPARAT

SPRING

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG

1шт.

84166099

KIT

Hitch Relief, Inc. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG, Relief

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

20

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET

1шт.

23

NSS

NOT SOLD SEPARAT

SEAT

1шт.

24

NSS

NOT SOLD SEPARAT

RING

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

373761A1

PLUG

1шт.

27

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

29

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

8шт.

31

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

3шт.

32

221579A1

PLUG,M22 x 1.5 ORB

Incl. 33

2шт.

33

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

87430152

SERVICE KIT

Meter Out, Inc. 34, 36 - 38

1шт.

34

NSS

NOT SOLD SEPARAT

TUBE

1шт.

35

NSS

NOT SOLD SEPARAT

POPPET, Valve

1шт.

36

NSS

NOT SOLD SEPARAT

STEM, Servo

1шт.

37

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

38

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

41

NSS

NOT SOLD SEPARAT

BODY

1шт.

373757A1

SEAL KIT

Seal, Inc. 3, 5, 19, 20, 24, 25, 27 - 31, 37, 38, 39

1шт.

Выбрано товаров: 44
