Запчасти Case IH MAGNUM 255 (08-21) - REMOTE HYDRAULIC CONTROL VALVE, ASN AJB363596 (08) - HYDRAULICS

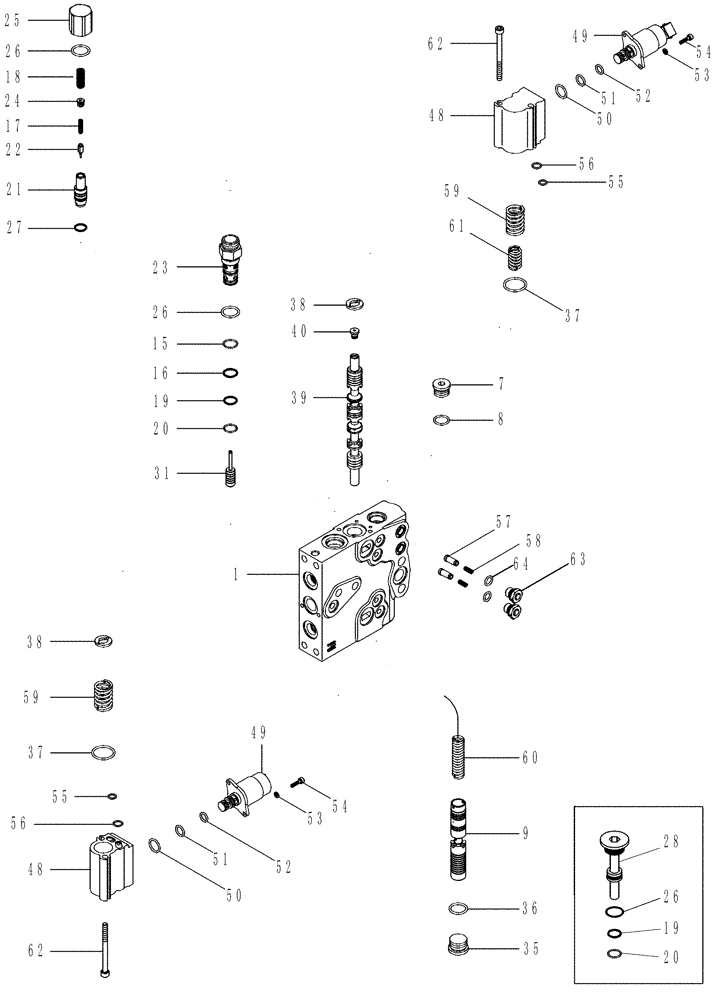

Схема запчастей Case IH MAGNUM 255 - (08-21) - REMOTE HYDRAULIC CONTROL VALVE, ASN AJB363596 (08) - HYDRAULICS
21
27
31
51
16
64
8
55
20
26
36
25
20
49
62
53
24
52
52
9
54
37
56
50
63
50
61
35
23
38
7
57
18
58
39
55
48
59
37
51
28
59
40
56
60
54
17
38
19
22
48
53
26
26
15
49
62
19
1

Артикул

Название

Примечание

Количество

87384974

VALVE

Standard

1шт.

87384974R

REMAN-HYD VALVE

Standard

1шт.

87384974C

CORE-VALVE HYD

Return Number

1шт.

87384975

VALVE

Right Hand End

1шт.

87384975R

REMAN-HYD VALVE

Reman Right Hand End

1шт.

87384975C

CORE-VALVE HYD

Core Return Number

1шт.

87384976

VALVE

Left Hand End Without Hitch

1шт.

87384974

VALVE

Left Hand End With Hitch

1шт.

87384974R

REMAN-HYD VALVE

Left Hand End With Hitch

1шт.

87384974C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

7

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 8

1шт.

8

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

9

446403A1

SPOOL

1шт.

278550A2

CHECK VALVE

Inc. 15 - 27

1шт.

278550A2R

REMAN-HYD VALVE

Inc. 15 - 27

1шт.

278550A2C

CORE-VALVE HYD

Return Number

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING

1шт.

19

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

2шт.

20

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

21

NSS

NOT SOLD SEPARAT

POPPET, Valve

1шт.

22

NSS

NOT SOLD SEPARAT

POPPET, Valve

1шт.

23

NSS

NOT SOLD SEPARAT

BODY

1шт.

24

NSS

NOT SOLD SEPARAT

PLUG

1шт.

25

NSS

NOT SOLD SEPARAT

CAP

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

27

G108727

BACK-UP RING,13.27mm ID x 15.87mm OD x 1.32mm Thk

1шт.

28

284165A1

PLUG,25.4mm OD x 76.58mm L

Inc. 19, 20, 26

1шт.

31

87546296

PISTON

1шт.

35

86625138

PLUG,7/18" - 14

Inc. 36

1шт.

36

86639044

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

37

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

2шт.

38

436518A1

WASHER,11.45mm ID x 22.5mm OD x 3mm Thk

2шт.

87416820

SPOOL

Inc. 39 - 41

1шт.

39

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

40

86632547

PLUG,Hex, 5/16"-24 ORB

Inc. O-Ring

1шт.

87354470

PILOT VALVE

Inc. 48 - 56, 62

2шт.

48

NSS

NOT SOLD SEPARAT

BODY

1шт.

49

87354468

SOLENOID VALVE

Inc. 50 - 52

1шт.

372228A1

SEAL

Inc. 50 - 52

1шт.

50

319721A1

O-RING,2.4mm Thk x 15.3mm ID

15.3 ID x 2.4

1шт.

51

319722A1

O-RING,2.4mm Thk x 10.3mm ID

10.3 ID x 2.4

1шт.

52

319723A1

O-RING,2.4mm Thk x 8.3mm ID

8.3 ID x 2.4

1шт.

53

892-11004

LOCK WASHER,M4

2шт.

54

864-4016

HEX SOC SCREW,M4 x 16mm, Cl 8.8

2шт.

55

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

56

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

57

87648631

PIN,8mm OD x 19mm L

2шт.

58

87648596

SPRING,3.81mm OD x 23.19mm L

2шт.

59

87706278

COMPRESSION SPRING

2шт.

60

436854A1

SPRING,15.11mm OD x 63.35mm L

1шт.

61

87336153

SPRING

1шт.

62

864-6075

HEX SOC SCREW,M6 x 75mm, Cl 8.8

2шт.

63

87648607

PLUG,M12 x 1.5 ORB

Inc. 64

2шт.

64

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 58
