Запчасти Case IH MAGNUM 255 (08-17) - PTO AND DIFFERENTIAL LOCK VALVE ASSEMBLY (08) - HYDRAULICS

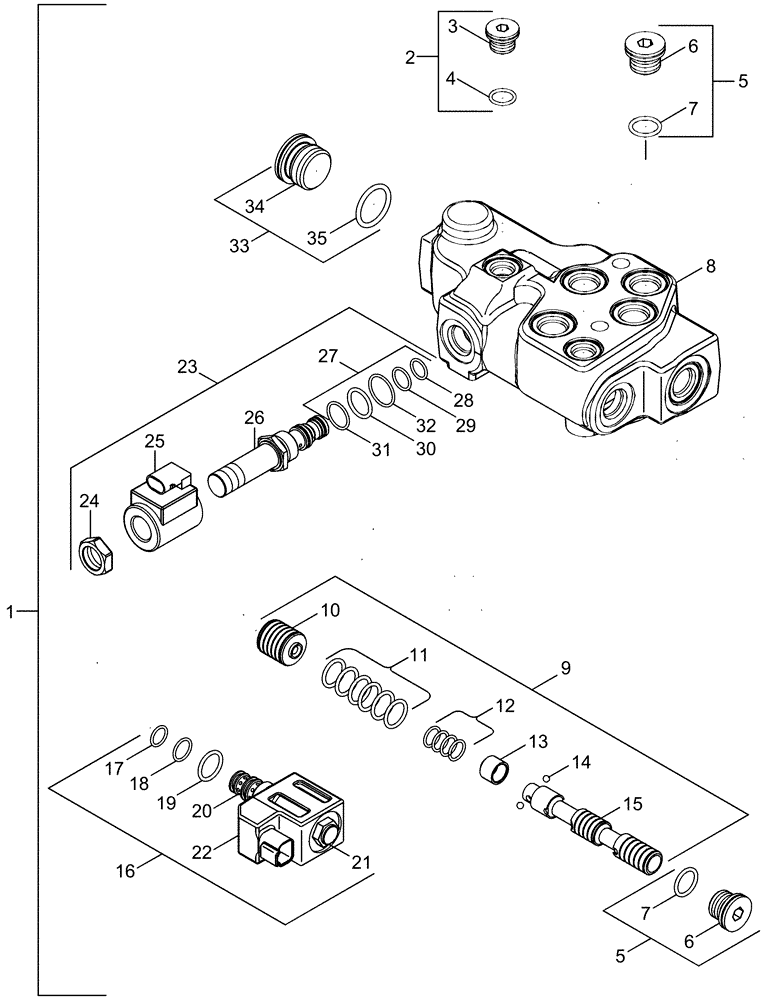

Схема запчастей Case IH MAGNUM 255 - (08-17) - PTO AND DIFFERENTIAL LOCK VALVE ASSEMBLY (08) - HYDRAULICS
29
32
5
7
1
22
28
15
7
21
30
10
14
34
13
33
16
25
20
26
11
18
19
31
12
2
6
17
3
4
6
24
27
35
9
23
5
8

Артикул

Название

Примечание

Количество

1

87705317

VALVE SECTION

PTO And Differential Lock, Inc. 2 - 35

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG

1шт.

4

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

5

221578A1

PLUG,M18 x 1.5 ORB

Incl. 6, 7

3шт.

6

NSS

NOT SOLD SEPARAT

PLUG

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

283642A4

SPOOL

Inc. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING

1шт.

12

NSS

NOT SOLD SEPARAT

SPRING

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

14

NSS

NOT SOLD SEPARAT

BALL

2шт.

15

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

16

349295A1

SOLENOID VALVE

Valve, Differential Lock, Inc. 17 - 22

1шт.

17

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

18

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

CORE

1шт.

21

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

22

298614A1

SOLENOID

1шт.

23

84167521

SOLENOID

Assembly, Inc. 24 - 32

1шт.

24

304836A1

NUT

1шт.

25

304834A1

SOLENOID

COIL

1шт.

26

84172351

CARTRIDGE

1шт.

27

308245A1

SEAL KIT

Inc. 28 - 32

1шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

30

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

31

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

32

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

33

221580A1

PLUG,M27 x 2 ORB

Inc. 34, 35

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG

1шт.

35

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

Выбрано товаров: 35
