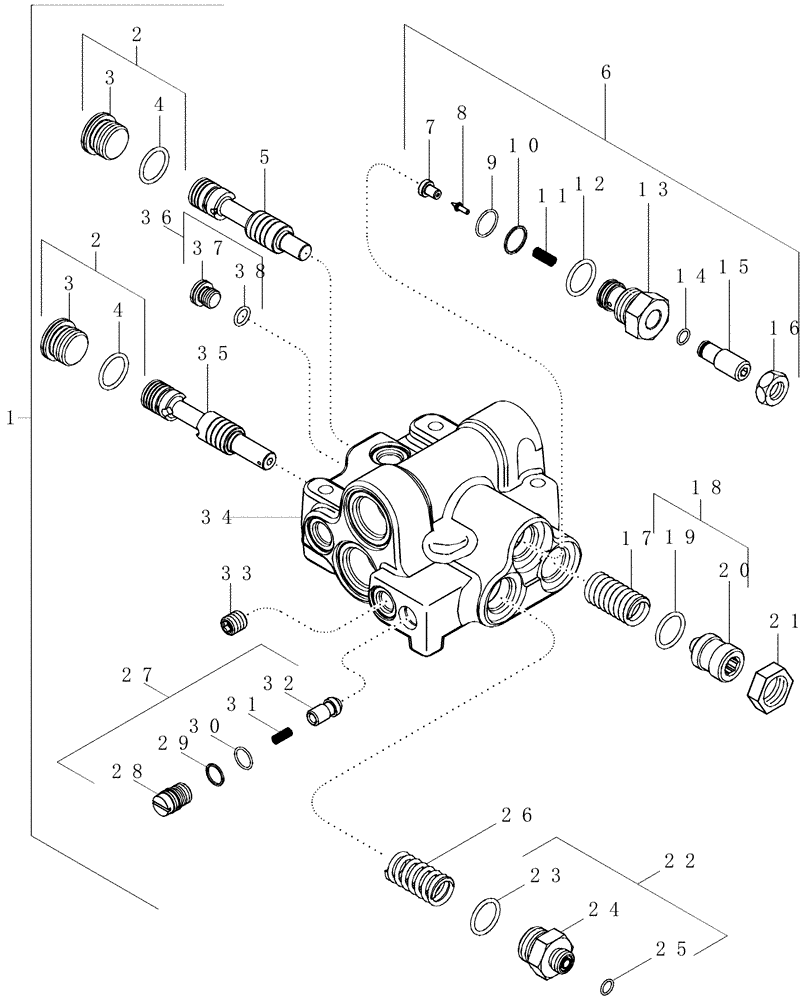

Запчасти Case IH MAGNUM 255 (08-16) - PRIORITY AND REGULATOR VALVE ASSEMBLY (08) - HYDRAULICS

1

87451048

VALVE

Priority And Regulator, Inc. 2 - 38

1шт.

2

221580A1

PLUG,M27 x 2 ORB

Includes 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Plug

1шт.

4

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

5

404442A1

SPOOL

1шт.

6

315796A1

VALVE PRESSURE RELIE

Inc. 7 - 16

1шт.

7

NSS

NOT SOLD SEPARAT

Seat

1шт.

8

NSS

NOT SOLD SEPARAT

Poppet

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring 3/4 ID x 1/16

1шт.

10

NSS

NOT SOLD SEPARAT

Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring 59/64 ID x 7/64

1шт.

13

NSS

NOT SOLD SEPARAT

Cap

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring 3/8 ID x 1/16

1шт.

15

NSS

NOT SOLD SEPARAT

Plug

1шт.

16

NSS

NOT SOLD SEPARAT

Nut 5/8 NF

1шт.

17

448102A2

SPRING

1шт.

18

84168371

PLUG

Inc. 19, 20

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Plug

1шт.

21

218-1280

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

22

313940A1

FITTING

Inc. 23 - 25

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

NSS

NOT SOLD SEPARAT

Fitting

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

26

408447A1

COMPRESSION SPRING

1шт.

27

1542563C1

KIT

Inc. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

Plug

1шт.

29

G108723

RING,14.34mm ID x 16.94mm OD x 1.32mm Thk

1шт.

30

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Spring

1шт.

32

1543329C1

VALVE POPPET,7mm ID x 13.8mm OD x 27mm L

1шт.

33

87427769

PLUG

1шт.

34

NSS

NOT SOLD SEPARAT

Body

1шт.

35

87448952

SPOOL

1шт.

36

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 37, 38

1шт.

37

NSS

NOT SOLD SEPARAT

PLug

1шт.

38

14437785

O-RING,11.3mm ID x 2.4mm

1шт.
