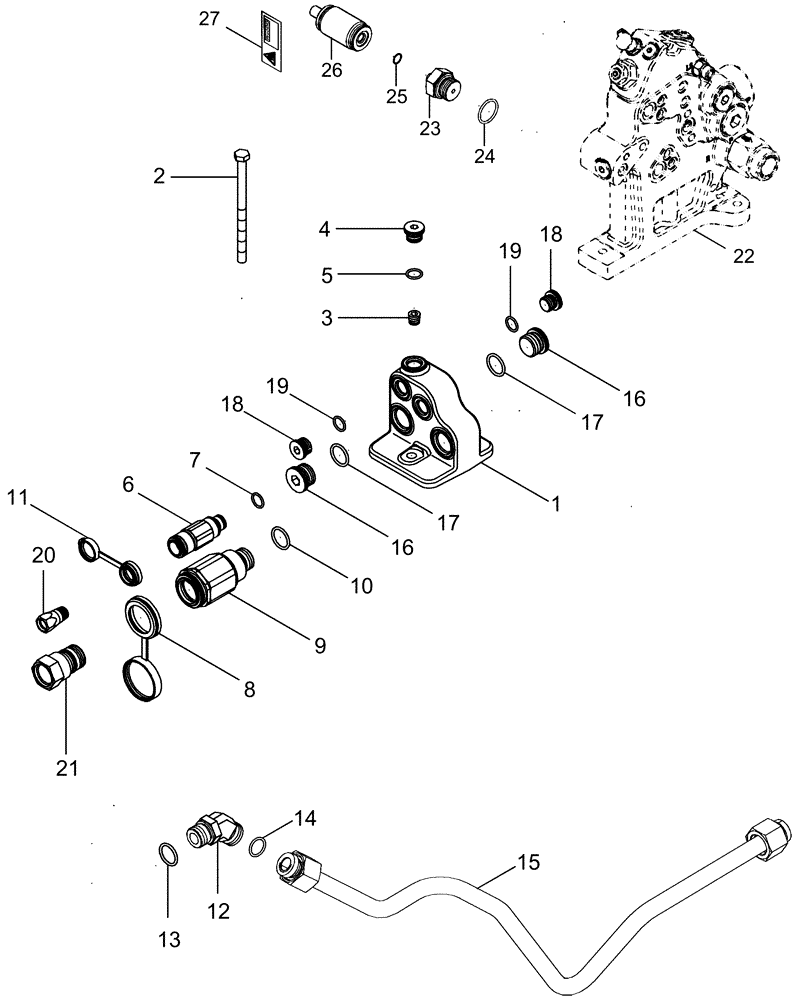

Запчасти Case IH MAGNUM 255 (08-15) - HYDRAULIC SYSTEM - MOTOR RETURN (08) - HYDRAULICS

1

387929A1

VALVE

1шт.

2

814-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 8.8

2шт.

3

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

4

221578A1

PLUG,M18 x 1.5 ORB

Incl. 5

1шт.

5

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

6

380739A1

COUPLING, BREAK AWAY

3/8, Inc. 7

1шт.

7

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8

334216A1

CAP

1шт.

9

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4 in, Inc. 10

1шт.

9a

445015A1

SEAL KIT

1шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

380740A1

CAP

1шт.

12

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Inc. 13, 14

1шт.

13

14438185

O-RING,24mm ID x 3mm

1шт.

14

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

87533663

TUBE,.75" OD

1шт.

16

221580A1

PLUG,M27 x 2 ORB

Includes 17

2шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

18

221578A1

PLUG,M18 x 1.5 ORB

Incl. 19

2шт.

19

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

20

385358A1

QUICK MALE COUPLING,3/8"

3/8 in

1шт.

21

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

3/4 in

1шт.

22

REF

INSTRUCTION

Manifold

1шт.

See Figure 08-19

1шт.

23

87402820

HYD CONNECTOR,M33 x 2 ORB x M14 x 1.5 ORB

M33 Or x M14 Or, Inc. 24, 25

2шт.

24

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

25

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

26

87402747

ACCUMULATOR,0.02L

1шт.

27

82029752

DECAL

1шт.
