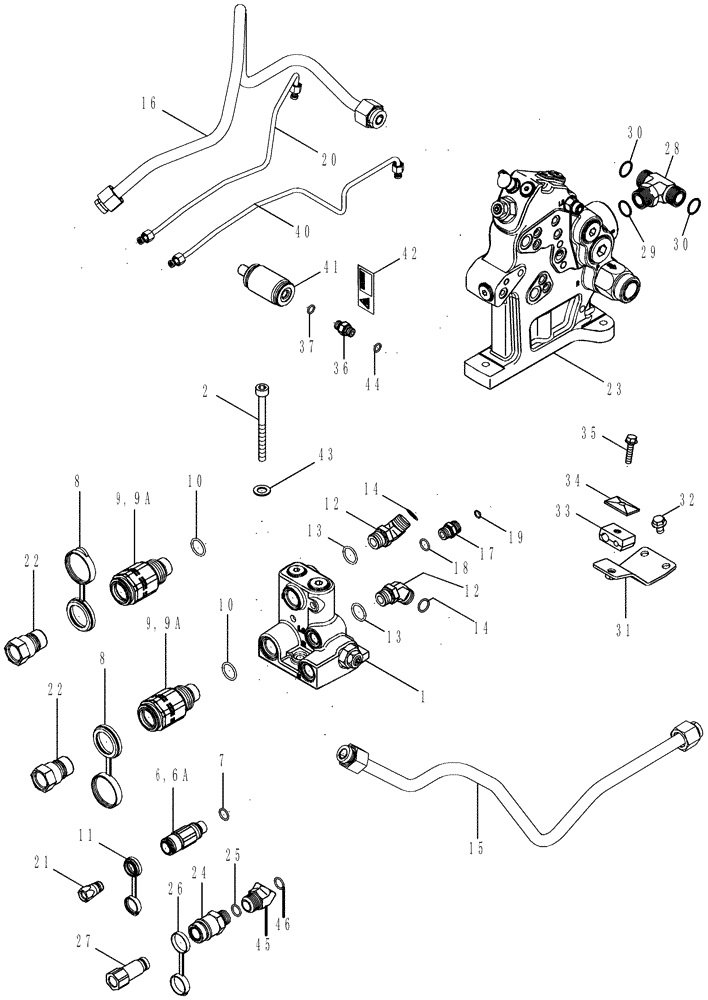

Запчасти Case IH MAGNUM 255 (08-14) - HYDRAULIC SYSTEM - POWER BEYOND (08) - HYDRAULICS

1

87338964

HYDRAULIC VALVE

1шт.

See Figure 08-25

1шт.

2

87605317

HEX SOC SCREW,M10 x 160mm, Cl 8.8

Hex, M10 x 160 8.8 ZND

2шт.

6

294603A1

BODY

1/4 in, In. 7

1шт.

6a

445014A1

SEAL KIT

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

334216A1

CAP

2шт.

9

298291A1

COUPLING, QUICK, FEM,Assembly, 3/4"

3/4 in, Inc.10

2шт.

9a

445015A1

SEAL KIT

1шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

334218A1

CAP

1шт.

12

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Inc. 13, 14

2шт.

13

14438185

O-RING,24mm ID x 3mm

1шт.

14

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

15

87533661

TUBE,.75" OD

Return

1шт.

16

87656846

TUBE,0.75" OD

Supply

1шт.

17

87376154

HYD CONNECTOR

Special, Orifice, Inc. 18, 19

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

20

87560338

TUBE,9.53 mm OD x 477 mm L

Load Sense

1шт.

With Hitch

1шт.

21

347756A1

QUICK MALE COUPLING,ISO 6.3, 1/4" x 9/16" - 18, Fem SAE ORB

1/4 in

1шт.

22

347755A1

COUPLING,ISO 20, 3/4" x 1 1/16" - 12, Fem SAE ORB

3/4 in

1шт.

23

REF

INSTRUCTION

Manifold

1шт.

See Figure 08-19

1шт.

24

380739A1

COUPLING, BREAK AWAY

3/8, Inc. 25

1шт.

25

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

26

380740A1

CAP

1шт.

27

385358A1

QUICK MALE COUPLING,3/8"

3/8

1шт.

28

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 29, 30

1шт.

29

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

30

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

31

87442374

BRACKET

1шт.

32

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

2шт.

33

255212A1

CLAMP

1шт.

34

1347127C1

PLATE

1шт.

35

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

36

87402820

HYD CONNECTOR,M33 x 2 ORB x M14 x 1.5 ORB

12 Or, Inc. 37, 44

1шт.

37

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

38

221578A1

PLUG,M18 x 1.5 ORB

Incl. 39

2шт.

39

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

40

87560347

TUBE,9.53 mm OD x 480 mm L

Load Sense

1шт.

Without Hitch

1шт.

41

87402747

ACCUMULATOR,0.02L

1шт.

42

82029752

DECAL

1шт.

43

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

44

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

45

87726025

ELBOW

Inc. 46

1шт.

46

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.
