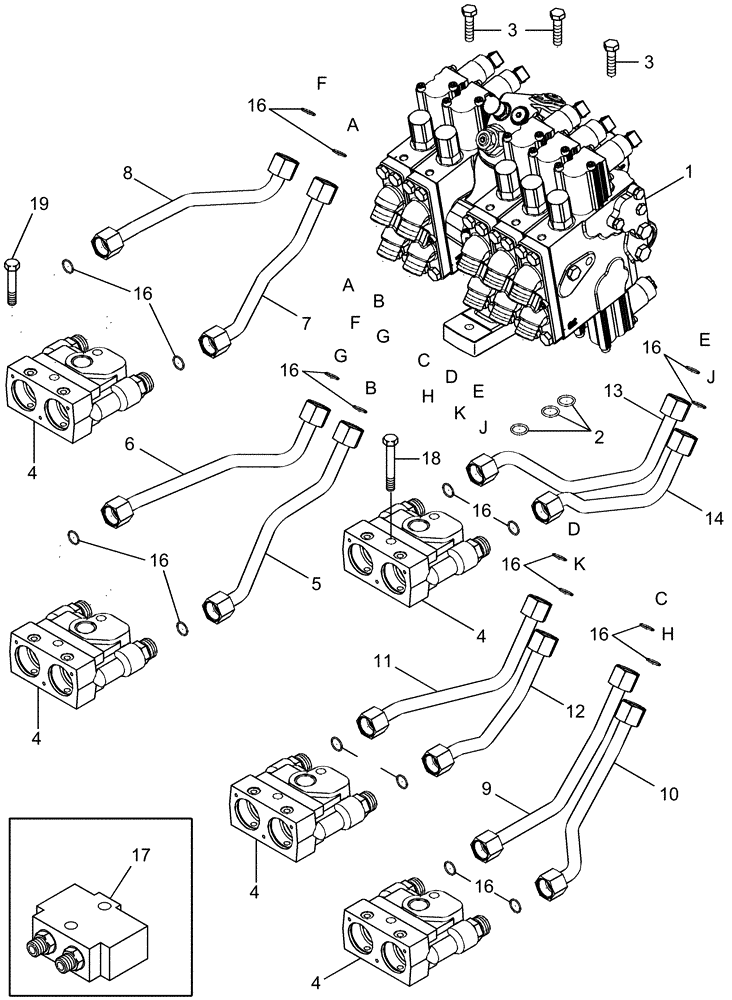

Запчасти Case IH MAGNUM 255 (08-12) - HYDRAULIC SYSTEM - REMOTE COUPLERS (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control

1шт.

See Figure 08-18

1шт.

2

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3шт.

3

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

3шт.

4

275182A2

HYDRAULIC VALVE

Hydraulic

3-4шт.

See Figure 08-22

1шт.

5

436814A1

TUBE

1st Raise

1шт.

6

436813A1

TUBE

1st Drop

1шт.

7

436815A1

TUBE

2nd Raise

1шт.

8

436811A1

TUBE

2nd Drop

1шт.

9

426757A1

TUBE

3rd Raise

1шт.

10

426756A1

TUBE

3rd Drop

1шт.

11

412082A1

TUBE

4th Raise

1шт.

12

450500A1

TUBE

4th Drop

1шт.

13

412084A1

TUBE

5th Raise

1шт.

14

450501A1

TUBE

5th Drop

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

17

87452849

QUICK MALE COUPLING

1шт.

See Figure 08-09

1шт.

18

814-10200

BOLT,Hex, M10 x 1.5 x 200mm, Cl 8.8

2шт.

19

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

2шт.
