(08-11) - HYDRAULIC SYSTEM - PTO/DIFFERENTIAL LOCK VALVE

Запчасти Case IH MAGNUM 255 (08-11) - HYDRAULIC SYSTEM - PTO/DIFFERENTIAL LOCK VALVE (08) - HYDRAULICS

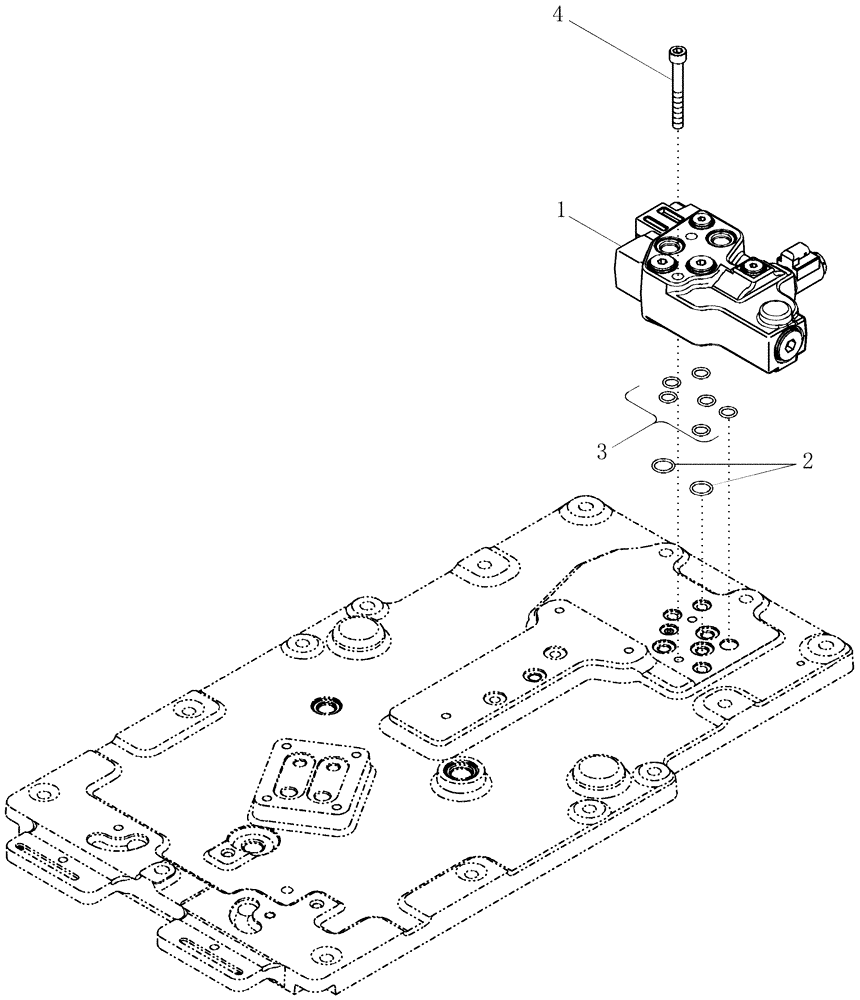

Схема запчастей Case IH MAGNUM 255 - (08-11) - HYDRAULIC SYSTEM - PTO/DIFFERENTIAL LOCK VALVE (08) - HYDRAULICS
2
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87705317

VALVE SECTION

PTO/Differential Lock

1шт.

See Figure 08-17

1шт.

2

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

3

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

6шт.

4

87437262

BOLT,Hex Skt, M10 x 80mm, Cl 8.8

2шт.
