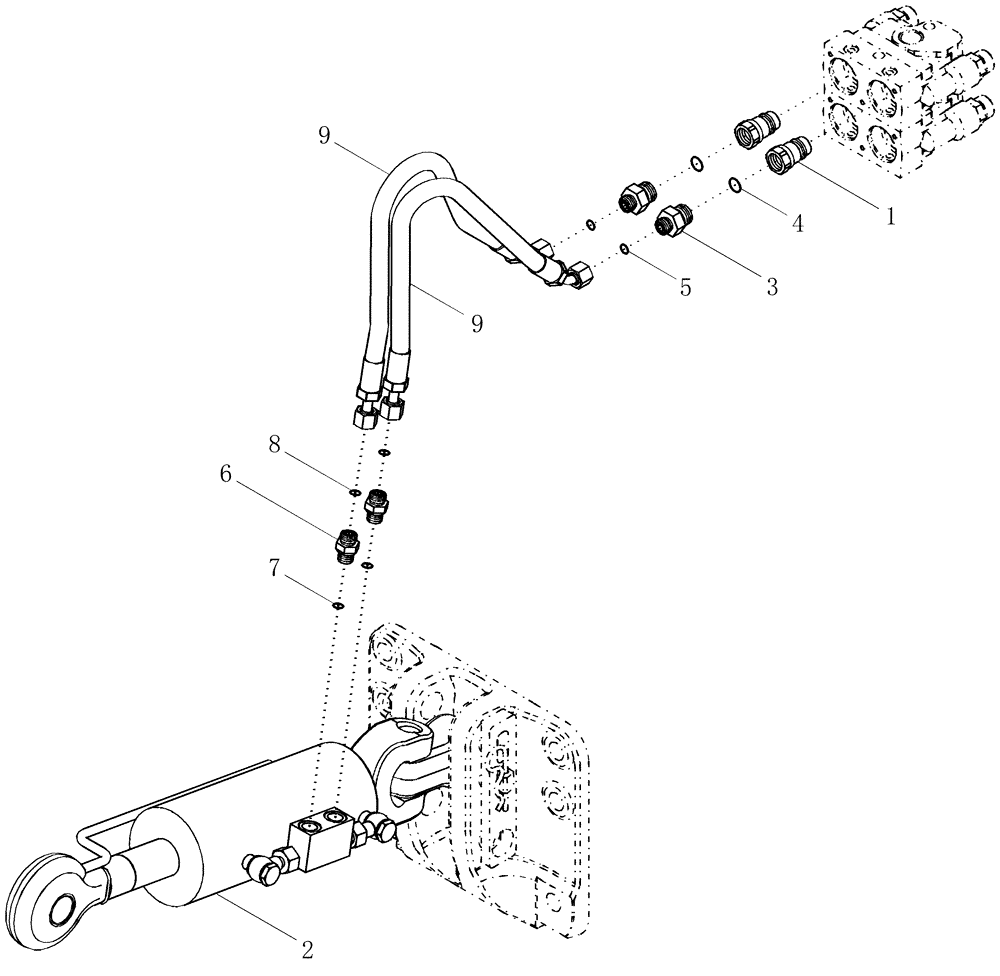

Запчасти Case IH MAGNUM 255 (08-08) - HYDRAULIC TOP LINK - HITCH, SHORT ARMS (08) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

2шт.

2

87453964

TOP LINK

Short, Used With Short Draft Arms, 970 mm (38 in) Center To Center

1шт.

See Figure 09-45 For Service Components

1шт.

3

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Inc. 4, 5

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

6

700-157

HYD CONNECTOR,11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 7, 8

2шт.

7

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

1шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

9

87441258

HOSE

705 mm (27-3/4 in)

2шт.
