Запчасти Case IH MAGNUM 255 (08-07) - HYDRAULIC SYSTEM - HITCH (08) - HYDRAULICS

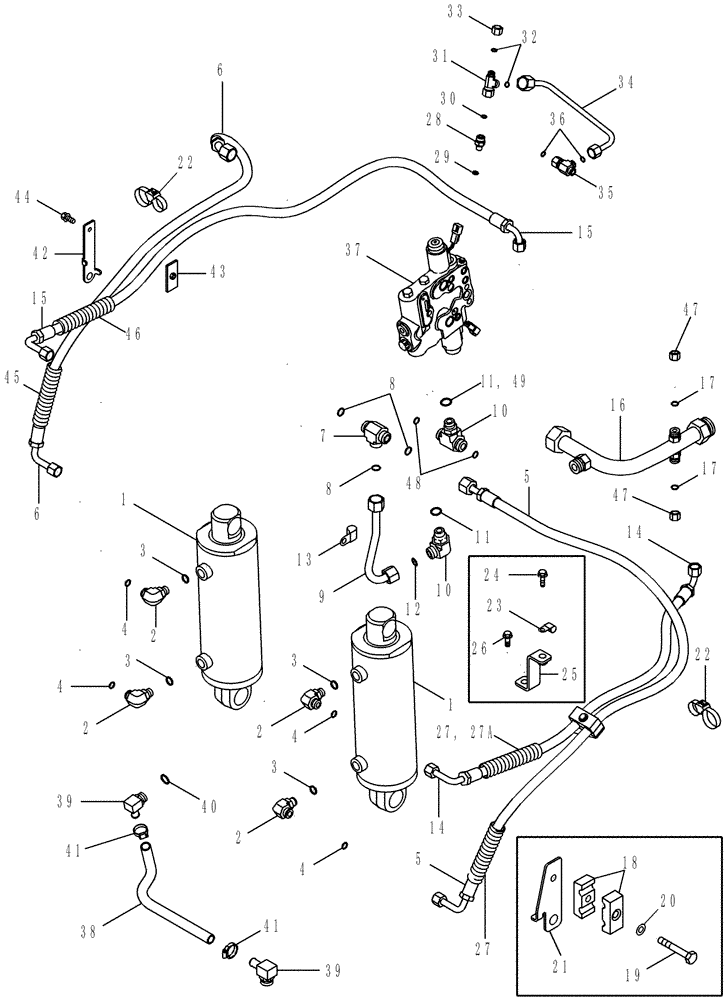

Схема запчастей Case IH MAGNUM 255 - (08-07) - HYDRAULIC SYSTEM - HITCH (08) - HYDRAULICS
19
17
13
36
18
30
1
37
31
10
38
41
17
21
42
2
14
8
2
16
3
29
48
44
41
4
8
47
39
32
20
22
27
45
43
22
2
7
14
1
3
24
9
40
35
6
28
2
12
5
4
4
3
15
34
23
5
33
46
26
25
39
11
47
4
6
15
10
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER, Hitch

2шт.

See Figures 08-30, 08-31, 08-32

1шт.

2

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 3, 4

4шт.

3

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

87448971

HOSE,12.7mm ID x 1369mm L, SAE 100R2

Supply, Right Hand, With Hydraulic Trailer Brake

1шт.

5

87540691

HOSE,12.7mm ID x 1115mm L, SAE 100R2

Supply, Right Hand

1шт.

6

87448974

HOSE

Supply, Left Hand, With Hydraulic Trailer Brake

1шт.

6

87450321

HOSE,12.7mm ID x 816mm L, SAE 100R2

Supply, Left Hand

1шт.

7

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 8, With Hydraulic Trailer Brake

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

9

87435660

TUBE,.625" OD

Hitch Supply, With Hydraulic Trailer Brake

1шт.

10

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 11, 12, With Hydraulic Trailer Brake

1шт.

10

87455805

TEE

Inc. 11, Without Trailer Brake

1шт.

10

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

Inc. 48, 49

1шт.

Use with 110 mm Hitch Cylinders

1шт.

11

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

12

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

13

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

1шт.

14

87448972

HOSE,12.7mm ID x 999mm L, SAE 100R6

Return, Right Hand

1шт.

14

87708026

HOSE

Return, Right Hand

1шт.

Use with 110 mm Hitch Cylinders

1шт.

15

87448973

HOSE,12.7mm ID x 1525mm L, SAE 100R6

1шт.

15

87708028

HOSE

Return, Left Hand

1шт.

Use with 110 mm Hitch Cylinders

1шт.

16

450507A1

TUBE

Return, Left Hand

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

18

329804A1

CLAMP,22mm ID

2шт.

19

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

21

87449394

BRACKET

1шт.

22

86991000

CLAMP

22шт.

23

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

1шт.

24

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

1шт.

25

86985195

BRACKET

With Hydraulic Trailer Brake

1шт.

26

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

1шт.

27

87451398

CONDUIT

Right Hand Hitch Supply

1шт.

27

87451399

TUBE

Right Hand Hitch Supply, With Hydraulic Trailer Brake

1шт.

27a

87318281

CONDUIT

Right Hand Hitch Supply

1шт.

Use with 110 mm Hitch Cylinders

1шт.

28

700-165

HYD CONNECTOR,11/16" - 16 Male ORFS x M12 x 1.5 Male ORB

Inc. 29, 30

1шт.

29

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

31

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 32

1шт.

32

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

33

701-900

CAP,11/16" - 16

1шт.

34

87356174

TUBE,0.375" OD

Hitch Valve Load Sense

1шт.

35

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 36

1шт.

36

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

37

412509A4

VALVE

1шт.

See Figure 08-22

1шт.

38

87309896

HOSE,15.88 mm ID x 235.00 mm

1шт.

39

87309895

ELBOW

Inc. 40

2шт.

40

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

41

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

42

87318116

BRACKET

Hose Clamp

1шт.

43

384871A1

PLATE

1шт.

44

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

45

87318282

CONDUIT

Left Hand Hitch Supply

1шт.

45

87318281

CONDUIT

Left Hand Hitch Supply, With Hydraulic Trailer Brake

1шт.

46

87451397

CONDUIT

Left Hand Hitch Return

1шт.

46

87318283

CONDUIT

Left Hand Hitch Return

1шт.

46

87451400

CONDUIT

Left Hand Hitch Return

1шт.

Use with 110 mm Hitch Cylinders

1шт.

47

701-905

CAP,13/16" - 16

2шт.

Use with 110 mm Hitch Cylinders

1шт.

48

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

Use with 110 mm Hitch Cylinders

1шт.

49

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Use with 110 mm Hitch Cylinders

1шт.

50

214389

PLUG,3/4" - 16 ORB

(Not Shown)

1шт.

Выбрано товаров: 71
