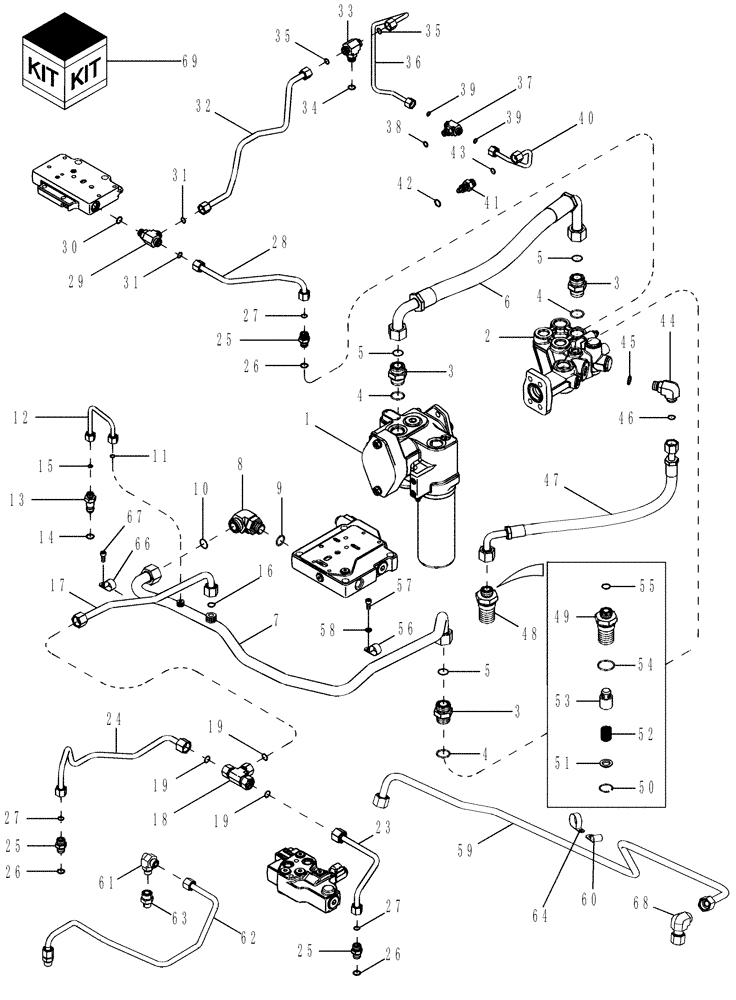

1
87483992
PUMP,69.15 CC
Charge
1шт.
87483992R
REMAN-HYD PUMP
Magnum 255 (Emerging Mkts.)
1шт.
87483992C
CORE-HYDRAULIC PUMP
Return Number
1шт.
2
401600A1
HEAD ASSY.
Filter, Standard Flow
1шт.
2
405409A1
HEAD ASSY.
Filter, High Flow
1шт.
3
700-105
HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB
Inc. 4, 5
3шт.
4
637-64296
O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro
1шт.
5
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
6
451064A1
HOSE,25.4mm ID x 680mm L
Pump to Filter Inlet
1шт.
7
87319222
HYD TUBE,1" OD
Master Clutch
1шт.
8
87010650
ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB
Inc. 9, 10
1шт.
9
637-64236
O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro
1шт.
10
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
11
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
12
87319223
TUBE,0.50" OD
Range
1шт.
13
87318672
UNION
1шт.
14
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
15
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
16
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
17
84155095
HOSE,15.88mm ID x 432mm L
Brake Supply
1шт.
18
84989665
TEE,1"-14 ORFS
Inc. 19
1шт.
19
9992069
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
3шт.
23
84572682
TUBE
Right Hand Brake, Length 267.4 mm (10.52 in)
1шт.
24
84252865
HYD TUBE,0.50" OD
Left Hand Brake, Length 441.4 mm (17.37 in)
1шт.
25
700-102
HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB
Incl. 26, 27
2шт.
26
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
27
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
28
451060A3
TUBE
Odd/Even Lube
1шт.
29
86579702
TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x M18 x 1.5 ORB
Inc. 30, 31
1шт.
30
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
31
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
32
437336A3
HYD TUBE
Drop Box
1шт.
33
86579710
TEE,13/16"-16 ORFS x M18 x 1.5 ORB Br
Inc. 34, 35
1шт.
34
637-63153
O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro
1шт.
35
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
36
87443736
HYD TUBE,0.375" OD
Dropbox Output Lube Without Creep
1шт.
36
87443738
HYD TUBE,0.375" OD
Dropbox Output Lube With Creep
1шт.
See Figure 08-05
1шт.
37
700-401
TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB
Inc. 38, 39
1шт.
38
637-63113
O-RING,2.2mm Thk x 11.3mm ID, Cl 6
1шт.
39
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
40
282278A1
HYD TUBE,0.375" OD, 120, 50 mm Length
Dropbox Rear Bearing Lube
1шт.
41
93105C1
UNION
1шт.
42
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
43
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
44
700-306
ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB
Incl. 45, 46
1шт.
45
637-63193
O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro
1шт.
46
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
47
442847A1
HOSE,15.88mm ID x 655mm L
Relief
1шт.
48
407616A2
VALVE,M42 x 2
Inc. 48 - 54
1шт.
49
407615A2
VALVE BODY
1шт.
50
107452A1
CIRCLIP
1шт.
51
107456A1
CUP WASHER
1шт.
52
431858A1
SPRING
1шт.
53
NSS
NOT SOLD SEPARAT
Plunger
1шт.
54
637-64386
O-RING,2.9mm Thk x 38.6mm ID, Cl 6, 90 Duro
1шт.
55
238-6018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro
1шт.
56
515-22254
CLAMP,1", Insul, 5/16" Bolt
1шт.
57
864-8020
HEX SOC SCREW,M8 x 20mm, Cl 8.8
1шт.
58
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
59
84164430
HYD TUBE,0.625" OD
PTO Supply
1шт.
60
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
1шт.
61
86579691
90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB
1шт.
62
87481994
HYD TUBE,0.5" OD
PTO Valve to Rear Plate
1шт.
63
87705892
HYD CONNECTOR
1шт.
64
515-22349
CLAMP,1 3/8", Insul, 5/16" Bolt
1шт.
65
700-313
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB
1шт.
66
515-22159
CLAMP,5/8", Insul, 5/16" Bolt
1шт.
67
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
1шт.
68
84989393
ELBOW,90 Degree, 1"-14 ORFS x 1"-14 Fem Sw
1шт.
69
84154799
KIT
PTO Clutch Lube Upgrade, Start Serial: Z8RZ02400
1шт.
