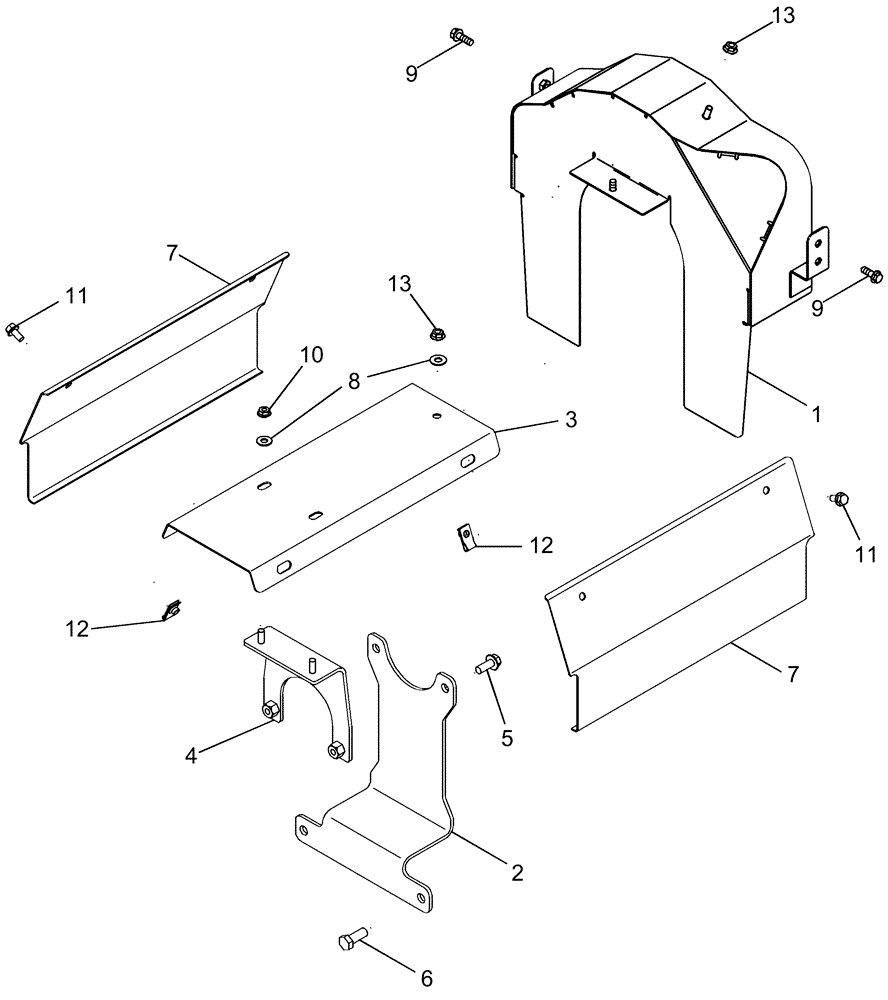

Запчасти Case IH MAGNUM 255 (02-09) - FLYWHEEL SHIELDS (02) - ENGINE

1

87522079

SHIELD

1шт.

2

87530413

BRACKET

1шт.

3

87530410

SHIELD

1шт.

4

87533238

MOUNTING PLATE

1шт.

5

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

6

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

7

87530412

SHIELD

2шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

9

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

11

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

12

833-41308

SPRING NUT,M8, U

4шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

14

87545917

SERVICE KIT

Three Sheild Adapting, (Not Shown)

1шт.
