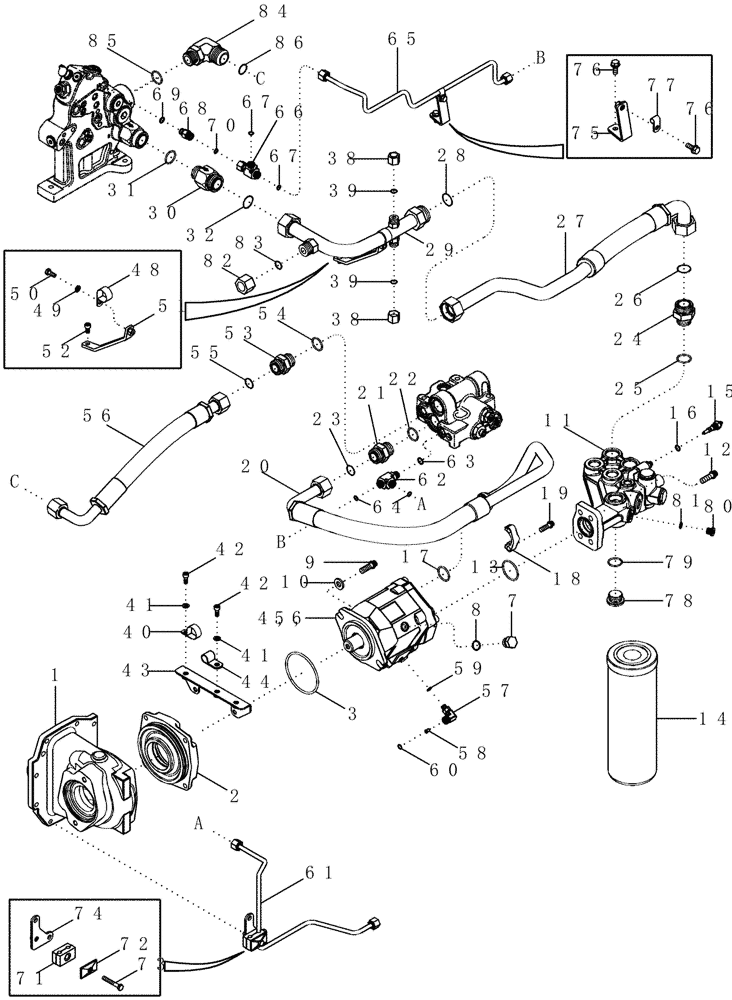

Запчасти Case IH MAGNUM 255 (08-03) - HYDRAULIC SYSTEM - PISTON PUMP AND FILTER, STANDARD FLOW CAPACITY (08) - HYDRAULICS

1

389550A1

HOUSING

1шт.

See Figure 06-32

1шт.

2

405664A2

CAGE

1шт.

See Figure 06-32

1шт.

3

238-5345

O-RING,0.21" Thk x 3.975" ID, -345, Cl 5, 75 Duro

1шт.

4

87429249

HYDRAULIC PUMP,56 CC

Standard Flow Capacity

1шт.

87429249R

REMAN-HYD PUMP,55 CC

MAGNUM 255 (EMERGING MARKET) (1/06-)

1шт.

87429249C

CORE-HYDRAULIC PUMP

Return Number

1шт.

5

87489367

SERVICE KIT

Compensator

1шт.

6

87553152

GASKET

1шт.

7

86512512

PLUG,7/8" - 14 ORB

Incl. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

2шт.

10

896-16012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

11

401600A1

HEAD ASSY.

Filter

1шт.

12

868-12035

12 PT SCREW,M12 x 35mm, Cl 12.9

4шт.

13

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

14

277311A1

HYDRAULIC OIL FILTER

1шт.

15

1957801C1

PRESSURE SWITCH

Indicator Assy, Elect

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

18

86980728

COLLAR CLAMP

2шт.

19

868-10030

12 PT SCREW,M10 x 30mm, Cl 12.9

4шт.

20

87438800

HOSE

1шт.

21

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 22, 23

1шт.

22

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

24

700-134

HYD CONNECTOR,1-11/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 25, 26

1шт.

25

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

26

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

27

450508A1

HOSE

1шт.

28

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

29

450507A1

TUBE

1шт.

30

254851A1

CHECK VALVE

Inc. 31, 32

1шт.

31

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

32

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

38

9840575

CAP,13/16" - 16 ORFS

2шт.

39

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

40

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

1шт.

41

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

42

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

43

451054A1

BRACKET

1шт.

44

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

1шт.

48

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

49

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

50

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

51

450515A1

BRACKET

1шт.

52

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.

53

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 54, 55

1шт.

54

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

55

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

56

87413846

HYDRAULIC HOSE,25.4mm ID x 463mm L, SAE 100R12

1шт.

57

451226A1

90 ELBOW

Inc. 58, 59, 60

1шт.

58

133519C1

SCREEN

1шт.

59

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

60

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

61

451209A1

HYD TUBE

1шт.

62

700-441

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Inc. 63, 64

1шт.

63

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

64

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

65

433592A1

TUBE

1шт.

66

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Inc. 67

1шт.

67

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

68

87308571

CHECK VALVE,11/16" - 16 ORFS x M14 x 1.5 ORB

Inc. 69, 70

1шт.

69

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

70

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

71

1546024C1

CLAMP

1шт.

72

384870A1

PLATE

1шт.

73

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

1шт.

74

451211A1

PLATE

1шт.

75

86988626

BRACKET

1шт.

76

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

77

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

1шт.

78

221527A1

PLUG,Hex Soc, M33 x 2, ORB

Inc. 79

1шт.

79

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

80

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 81

1шт.

81

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

82

701-907

CAP,1-3/16" - 12

Inc. 83

1шт.

83

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

84

700-404

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Inc. 85, 86, With Power Beyond

1шт.

See Figure 08-14

1шт.

84

413993A1

90 ELBOW

Inc. 85, 86, Without Power Beyond (Shown)

1шт.

85

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

1шт.

86

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1- 2шт.
