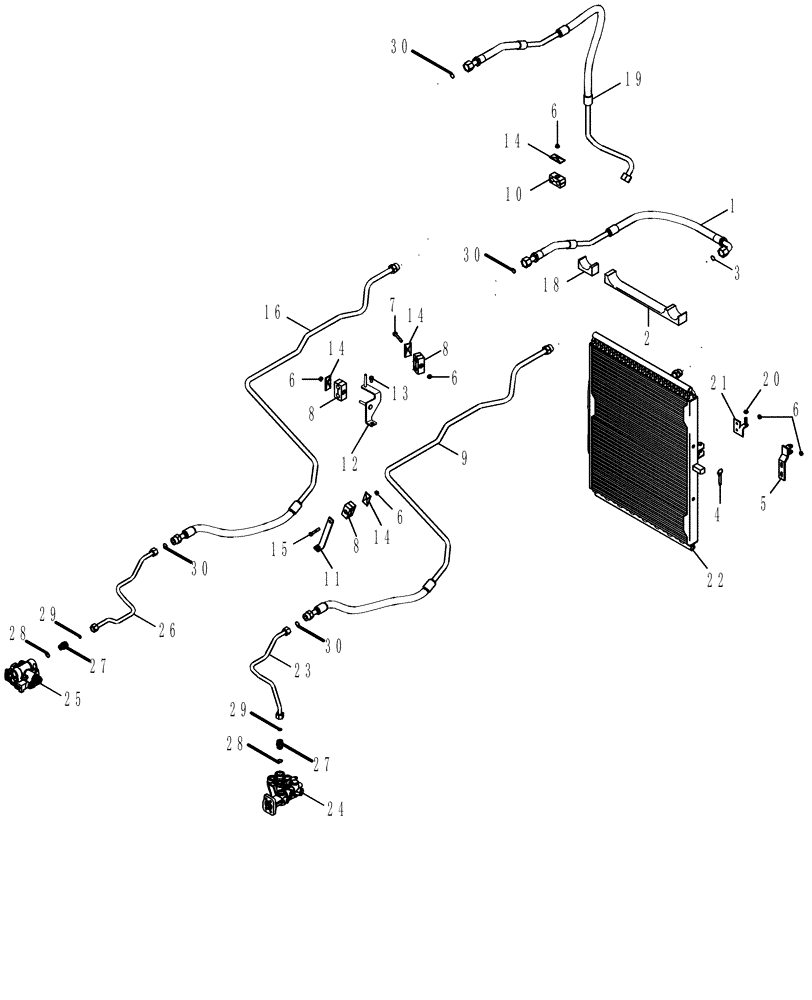

Запчасти Case IH MAGNUM 255 (08-01) - HYDRAULIC SYSTEM - OIL COOLER STANDARD PERFORMANCE (08) - HYDRAULICS

1

87358481

HOSE ASSY.

Oil Cooler Supply

1шт.

2

87456457

INSULATOR,50mm W x 452mm L x 45mm Thk

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

4

86017630

HITCH PIN,9.53mm OD x 50.55mm L

1шт.

5

87332352

BRACKET

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

9шт.

7

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

8

1546027C1

CLAMP

3шт.

9

87580078

TUBE,709 mm L

Oil Supply

1шт.

10

118576A1

CLAMP

2шт.

11

87336914

BRACKET

Oil Cooler Tubes

1шт.

12

87594301

BRACKET

1шт.

13

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

1шт.

14

1347127C1

PLATE

2шт.

15

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

16

87519085

TUBE,690 mm L

Oil Return

1шт.

18

87456576

INSULATOR,45mm W x 81mm L x 40mm Thk

1шт.

19

84286634

HOSE

Oil Cooler Return

1шт.

20

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

21

87455275

BRACKET

With Lower Hinge, Serial Range: -10/19/09

1шт.

21

87603124

BRACKET

With lower Hinge, Start Serial: 10/19/09

1шт.

22

87360031

OIL COOLER

Transmission, Serial Range: -Z7RZ04678

1шт.

22

87549515

OIL COOLER

Transmission, Start Serial: Z7RZ04678

1шт.

23

87306467

TUBE,0.75" OD

Oil Cooler Return to Filter

1шт.

24

401600A1

HEAD ASSY.

Filter

1шт.

25

87427822

VALVE

Priority

1шт.

26

87443859

TUBE,0.75" OD

Priority Valve

1шт.

27

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Inc. 28, 29

2шт.

28

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

29

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

30

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.
