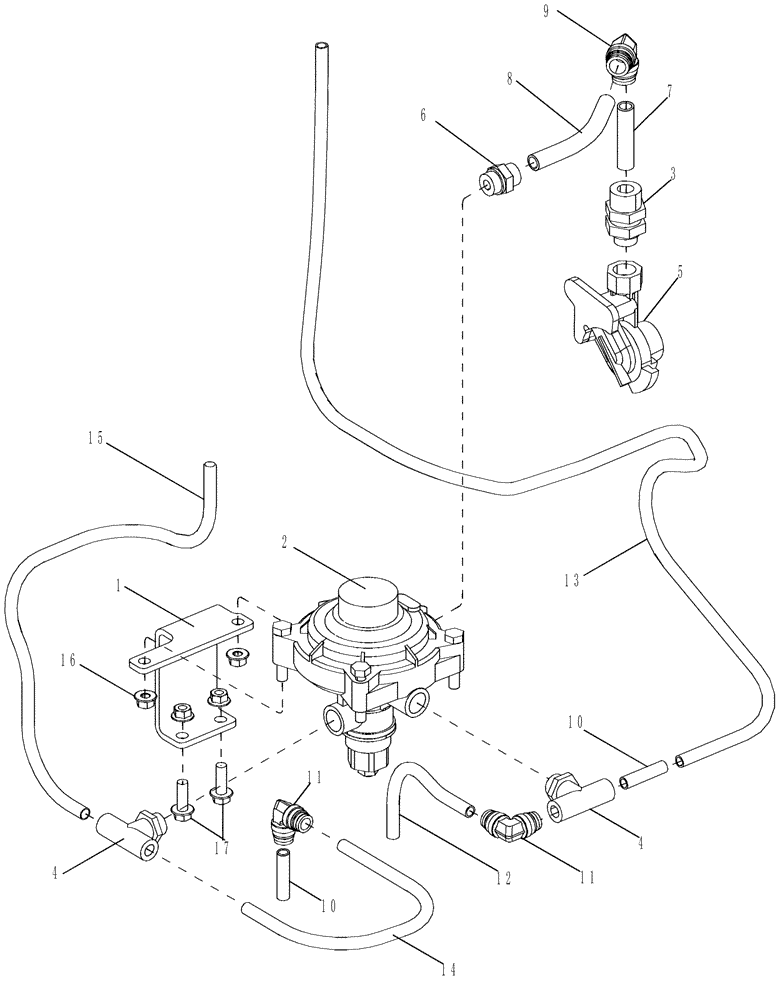

Запчасти Case IH MAGNUM 255 (07-13) - TRAILER BRAKES - PNEUMATIC, COUPLERS, SINGLE LINE (07) - BRAKES

719089006

DIA KIT, TRACTOR

Inc. 1 - 17

1шт.

1

87616996

BRACKET

Air Brake 1-Line Valve Mounting

1шт.

2

T101913

VALVE

Control Trailer

1шт.

3

442908A1

HYD CONNECTOR

Bulkhead M22 x 16 Tube

1шт.

4

442931A1

TEE

Air Break Push-In M22 x 12

2шт.

5

3141447R1

BREAKER POINTS

Coupling

1шт.

6

86984484

CONNECTION

Air Break Push-In M22 x 16

1шт.

7

87664142

AIR HOSE

Pneumatic 16 mm x 66.5 mm Straight

1шт.

8

87664134

AIR HOSE,16.00 mm ID x 129.00 mm

Brake, Black Coupler

1шт.

9

87664144

FITTING

Elbow 16 mm Pneumatic

1шт.

10

87664141

AIR HOSE

Pneumatic 12 mm Dia x 50 mm Straight

2шт.

11

87664143

FITTING

Elbow 12 mm Pneumatic

2шт.

12

87664136

AIR HOSE,12.00 mm ID x 148.00 mm

Brake, Yellow Coupler

1шт.

13

87456289

AIR HOSE,655.00 mm

Air Brake, Double Check Valve Out

1шт.

14

87664137

AIR HOSE,12.00 mm ID x 162.00 mm

Brake, Red Coupler

1шт.

15

86985954

AIR HOSE

Air Brake 1-Valve Assembly

1шт.

16

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

17

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.
