Запчасти Case IH MAGNUM 255 (07-09) - TRAILER BRAKES - PNEUMATIC, AIR COMPRESSOR MOUNTING AND DRIVE (07) - BRAKES

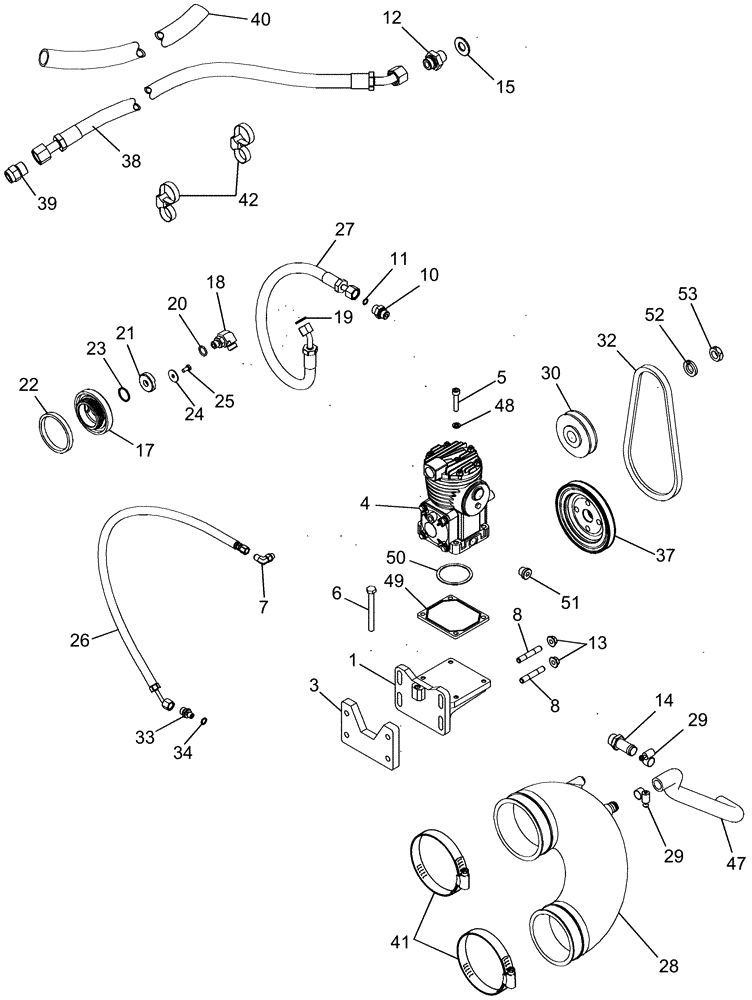

Схема запчастей Case IH MAGNUM 255 - (07-09) - TRAILER BRAKES - PNEUMATIC, AIR COMPRESSOR MOUNTING AND DRIVE (07) - BRAKES
1
37
18
25
10
15
47
29
14
24
32
21
13
53
51
23
4
29
39
20
48
28
5
22
12
19
17
34
8
38
27
41
52
49
6
42
8
7
33
26
40
11
50
30
3

Артикул

Название

Примечание

Количество

1

87354605

SUPPORT

1шт.

3

87354608

ADJUSTING PLATE

1шт.

4

87340869

AIR COMPRESSOR

1шт.

4a

87580916

SEAL KIT

(Not Shown)

1шт.

5

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

4шт.

6

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

7

87364913

ADAPTER

Elbow, M10 x 7/16

1шт.

8

87366493

STUD

4шт.

10

87434646

UNION,M16 x 11/16" ORFS

11/16 fc sl x 16, Inc. 11

1шт.

11

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

12

87551841

ADAPTER

1шт.

13

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

14

87434210

STEM

1шт.

15

87551845

COPPER WASHER

1шт.

17

J918215

ADAPTER

1шт.

18

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Inc. 19, 20, 44

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

21

177335A3

LARGE PLATE

PLATE, LARGE

1шт.

22

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

23

J915800

SEAL,Square, 1.68mm Thk x 25.12mm ID, -22

SEALRING

1шт.

24

T103887

WASHER

2шт.

25

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

26

87365032

HOSE

Compressor Supply

1шт.

27

87365056

HOSE ASSY.

Lube Out

1шт.

28

87357622

HOSE

Air Cleaner to Turbo, Serial Range: -Z7RZ03901

1шт.

28

87651299

INTAKE AIR HOSE,101.60 mm ID, 114.30 mm ID x 228.60 mm

Air Cleaner to Turbo With Air Brakes, Start Serial: Z7RZ03901

1шт.

29

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

30

84261691

PULLEY

1шт.

32

84271496

V-BELT

1шт.

33

700-171

HYD CONNECTOR,9/16" - 18 Male ORFS x M10 x 1 Male ORB

Inc. 34

1шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

37

87380498

PULLEY

1шт.

38

87547253

HOSE

Outlet

1шт.

39

86991153

ADAPTER

1шт.

40

87403388

CONDUIT

1шт.

41

214-3280

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm, W/ Liner

2шт.

42

86991000

CLAMP

Tie, Dual

2шт.

44

NSS

NOT SOLD SEPARAT

Elbow

1шт.

45

NSS

NOT SOLD SEPARAT

Connector

1шт.

46

NSS

NOT SOLD SEPARAT

Union

1шт.

47

87364042

HOSE

Intake Hose

1шт.

48

892-11008

LOCK WASHER,8mm ID

4шт.

49

87433913

PLATE ASSY.

1шт.

50

87531675

GASKET

1шт.

51

87456432

PLUG

1шт.

52

92-11075

LOCK WASHER,3/4"

1шт.

53

933678R1

THIN NUT,Thin, M18 x 1.5, Cl 04

1шт.

Выбрано товаров: 48
