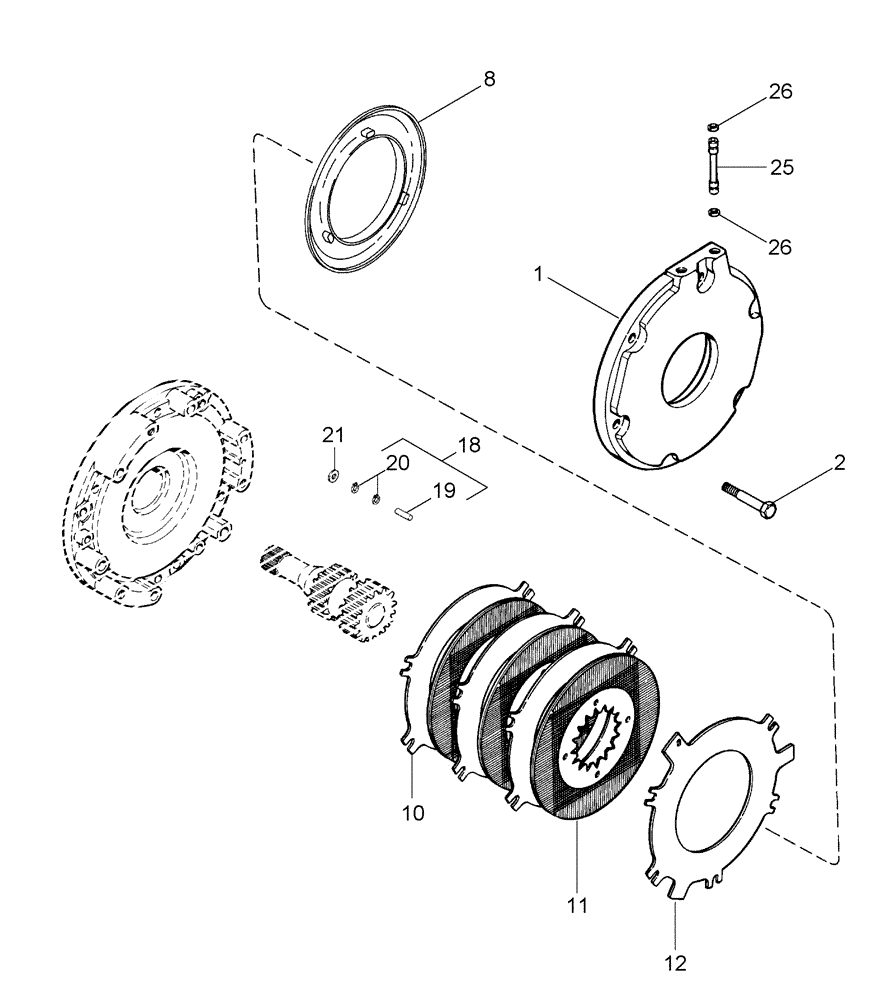

Запчасти Case IH MAGNUM 255 (07-05) - BRAKES - DIFFERENTIAL (07) - BRAKES

1

1342723C2

COVER

2шт.

2

813-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

Right Hand

6шт.

2

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

Left Hand

6шт.

8

1997422C1

PISTON

2шт.

10

120486C1

BRAKE PLATE,192mm ID x 350mm OD x 2.74mm Thk

8шт.

11

120488C2

BRAKE PLATE

8шт.

12

1981187C1

PLATE,192mm ID x 317.29mm OD x 2.74mm Thk

2шт.

18

1349198C1

ADJUSTER

Inc. 19, 20

6шт.

19

37-1828

DOWEL,1/2" x 1 3/4"

1шт.

20

100-1450

SNAP RING,#50, Ext

2шт.

21

1342928C1

BELLEVILLE WASHER

12шт.

25

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

4шт.

26

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

8шт.
