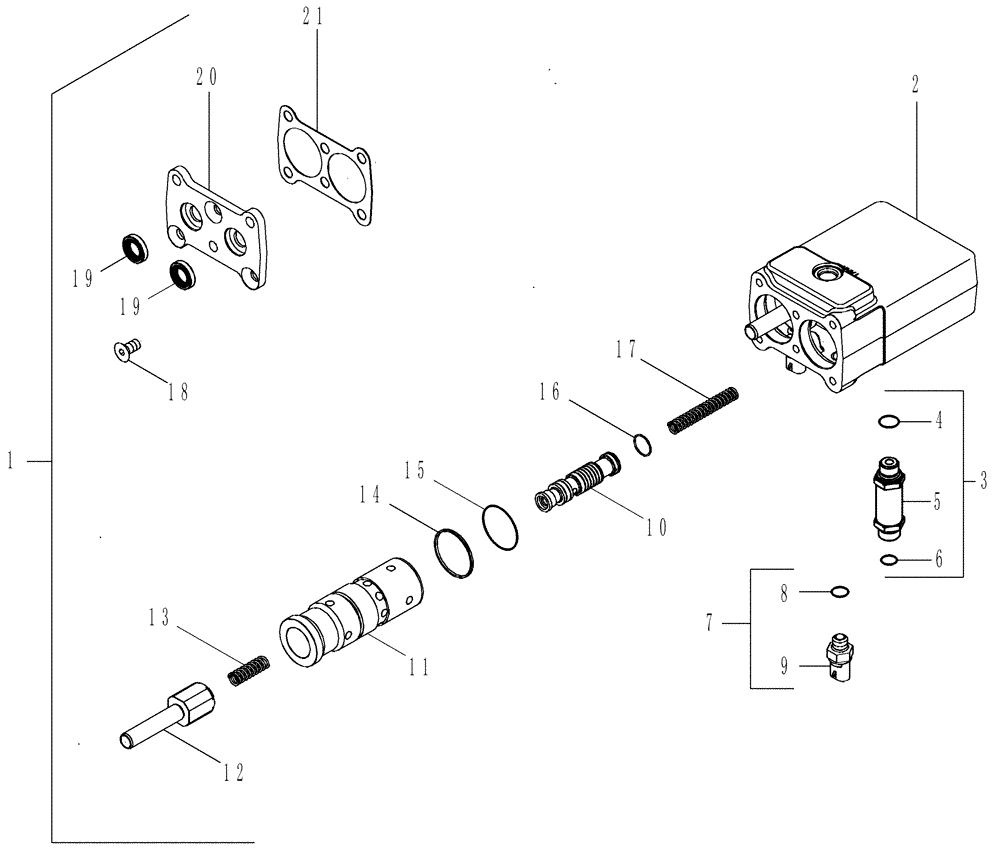

Запчасти Case IH MAGNUM 255 (07-04) - BRAKES - CONTROL VALVE (07) - BRAKES

1

87731065

BRAKE VALVE

Inc. 1 - 21

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

87731851

CHECK VALVE,13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 4 - 6

1шт.

4

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

BODY

1шт.

6

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

7

279266A1

SWITCH

Brake, Incl 8, 9

2шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

Switch

1шт.

10

397106A5

SPOOL

2шт.

11

397105A5

SLEEVE

2шт.

12

433199A1

POPPET

2шт.

13

433196A2

SPRING

2шт.

14

407387A1

SEAL,47.64mm ID x 50.8mm OD x 2.38mm Thk

SEALRING

2шт.

15

238-7131

O-RING,0.103" Thk x 1.674" ID, -131, Cl 7, 75 Duro

2шт.

16

407282A1

SNAP RING

2шт.

17

397110A1

COMPRESSION SPRING

2шт.

18

220056A1

SCREW,Hex Soc Flat Hd, M10 x 20mm, Cl 8.8

3шт.

19

A63399

OIL SEAL,15.87mm ID x 28.73mm OD x 6.35mm Thk

2шт.

20

397111A1

PLATE

1шт.

21

403356A1

GASKET,0.92mm Thk

1шт.
