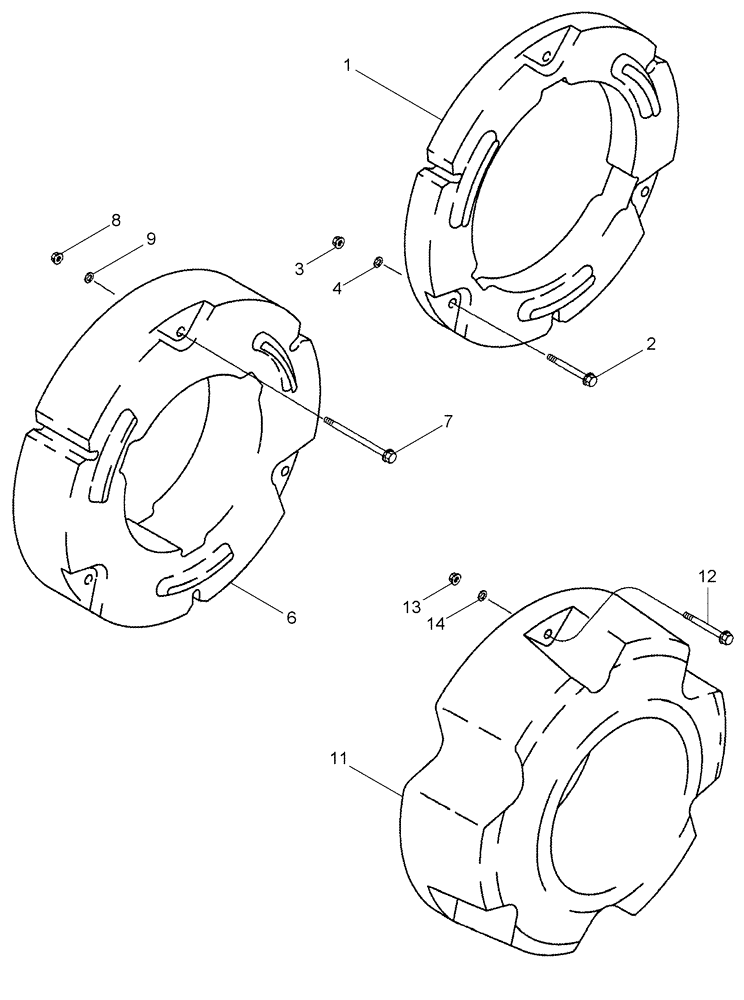

Запчасти Case IH MAGNUM 255 (06-43) - REAR WHEEL WEIGHTS (06) - POWER TRAIN

1

405828A1

WHEEL WEIGHT

Wheel, 200 lb

2шт.

2

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

M16 x 130; 10.9

6шт.

3

832-10416

NUT,M16 x 2, Cl 8

6шт.

4

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

6

87310406

WHEEL WEIGHT

500 lb

2шт.

7

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

M16 x 130; 10.9

6шт.

8

832-10416

NUT,M16 x 2, Cl 8

6шт.

9

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

11

405830A1

WEIGHT

Wheel, 1000 lb

2шт.

12

87393412

BOLT,Hex, M16 x 130mm, Cl 10.9

M16 x 130; 10.9

6шт.

13

832-10416

NUT,M16 x 2, Cl 8

6шт.

14

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.
