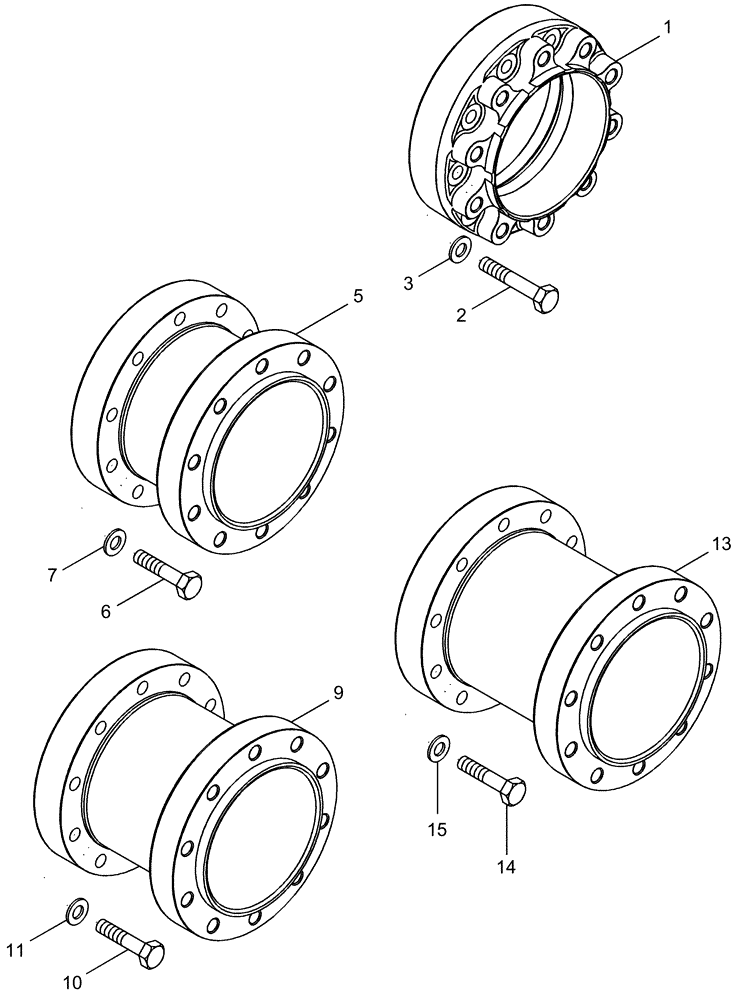

Запчасти Case IH MAGNUM 255 (06-42) - SPACER - DUAL REAR WHEELS (06) - POWER TRAIN

1

405822A1

SPACER

127 mm (5 in)

2шт.

2

827-22160

BOLT,Hex, M22 x 2.5 x 160mm, Cl 10.9

20шт.

3

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

5

405823A1

SPACER

254 mm (10 in)

2шт.

6

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

20шт.

7

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

9

405824A1

SPACER

330 mm (13 in)

2шт.

10

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

20шт.

11

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.

13

405825A1

SPACER

381 mm (15 in)

2шт.

14

827-22130

BOLT,Hex, M22 x 2.5 x 130mm, Cl 10.9

20шт.

15

896-11022

WASHER,24mm ID x 44mm OD x 4mm Thk

20шт.
