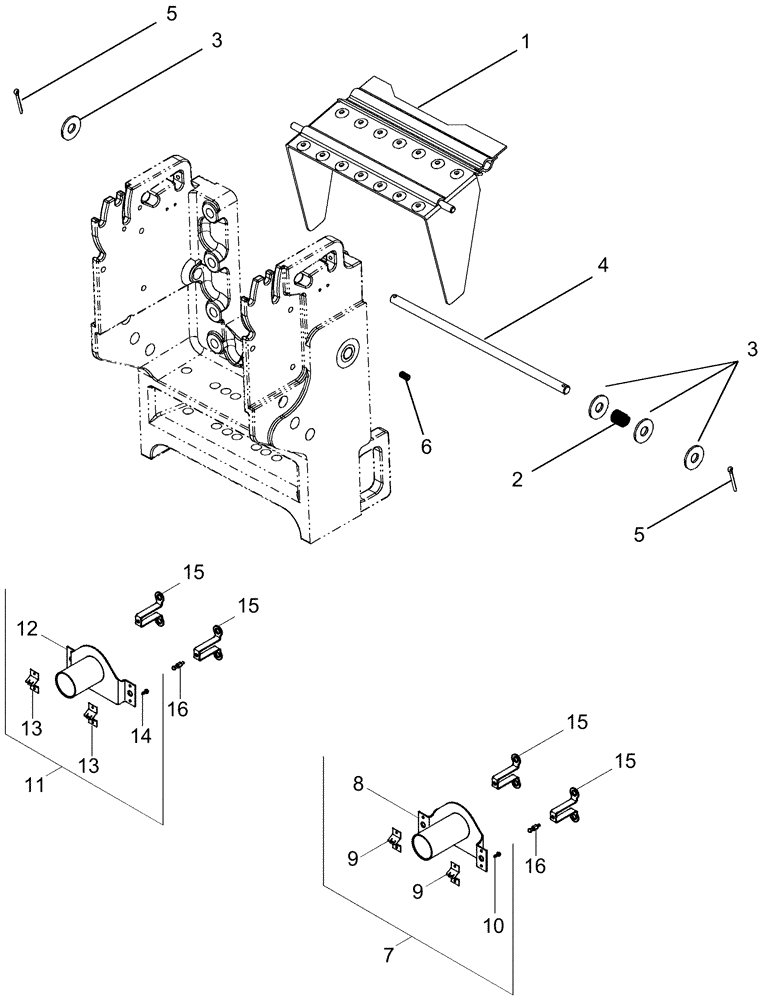

Запчасти Case IH MAGNUM 255 (06-39) - POWER TAKE OFF ASSEMBLY - SHIELDS (06) - POWER TRAIN

1

379252A2

SHIELD

1шт.

2

179657A2

SPRING

1шт.

3

495-21069

WASHER,5/8"

4шт.

4

225672A2

ROD

1шт.

5

733-5040

COTTER PIN,M5 x 40

2шт.

6

87681203

SET SCREW,Hex Skt, M12 x 20mm, Cl 8.8, Full Thd, Cup Pt

4шт.

7

311112A4

GUARD

, Start Serial: Z7RW05000

1шт.

8

NSS

NOT SOLD SEPARAT

, Start Serial: Z7RW05000

1шт.

9

1968039C3

FASTENER

, Start Serial: Z7RW05000

2шт.

10

280-5348

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

, Start Serial: Z7RW05000

4шт.

11

311112A4

GUARD

, Start Serial: Z7RW05000

1шт.

12

NSS

NOT SOLD SEPARAT

, Start Serial: Z7RW05000

1шт.

13

1968039C3

FASTENER

, Start Serial: Z7RW05000

2шт.

14

280-5348

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

, Start Serial: Z7RW05000

4шт.

15

308308A1

SUPPORT

, Start Serial: Z7RW05000

2шт.

16

1977929C1

STUD,M5 x 0.8

, Start Serial: Z7RW05000

2шт.
