Запчасти Case IH MAGNUM 255 (06-34) - POWER TAKE OFF ASSEMBLY - INPUT SHAFT (06) - POWER TRAIN

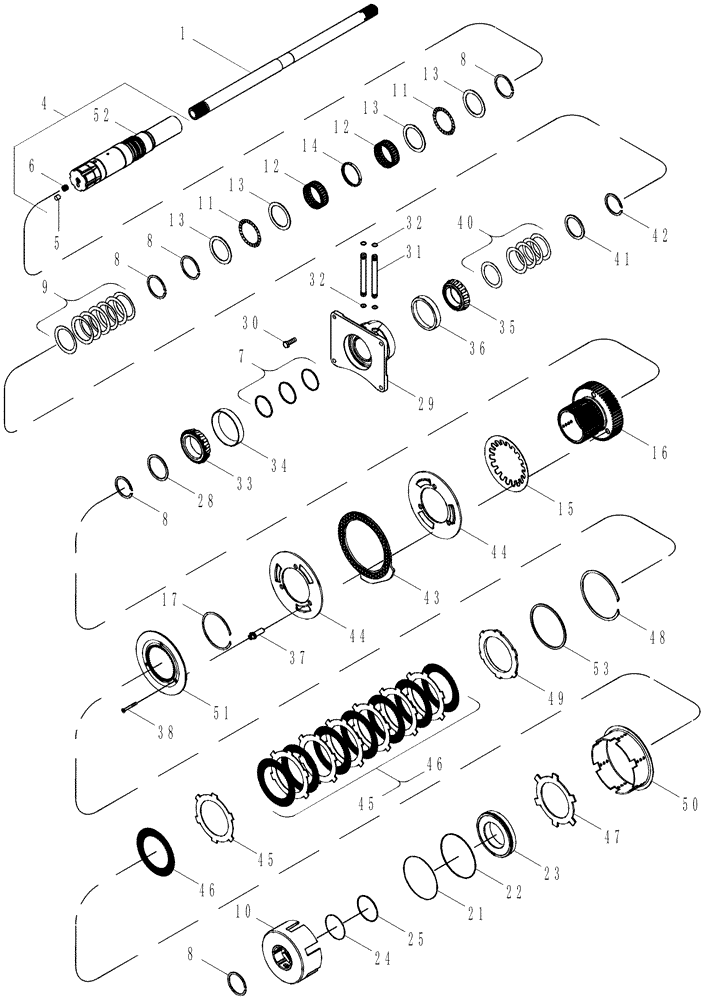

Схема запчастей Case IH MAGNUM 255 - (06-34) - POWER TAKE OFF ASSEMBLY - INPUT SHAFT (06) - POWER TRAIN
4
12
12
37
8
47
28
25
9
30
36
31
51
46
46
5
22
42
48
8
45
11
15
41
40
52
17
33
8
53
50
8
23
44
44
29
14
35
6
7
1
34
43
32
21
8
38
16
49
32
13
45
13
13
24
13
10
11

Артикул

Название

Примечание

Количество

1

198496A1

COUNTERSHAFT

1шт.

4

87696447

SHAFT

Inc. 5, 6, 52

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG

1шт.

6

877-31212

SET SCREW,Hex Skt M12 x 12mm, Flat Pt

1шт.

7

1286026C1

SEALING RING,Locking, 59.41mm ID x 63.41mm OD x 2.87mm Thk

Seal

3шт.

8

93350C1

RING

Retaining

5шт.

9

1286012C2

BELLEVILLE WASHER

Belleville

7шт.

Transmission BSN AJB0365565

1шт.

9

87425389

BELLEVILLE SPRING

Washer

7шт.

Transmission ASN AJB0365565

1шт.

10

446596A4

CARRIER

1шт.

11

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

2шт.

12

435716A1

NEEDLE BEARING,63.49mm ID x 73.04mm OD x 25.21mm W

2шт.

13

1286043C1

THRUST WASHER,63.56mm ID x 82.38mm OD x 2.37mm Thk

4шт.

14

86989332

RING

Needle Bearing Support

1шт.

15

435636A1

SPRING

Brake Apply Disc

2шт.

16

445794A2

DRIVING GEAR

61T

1шт.

16

87696444

GEAR

61T, with Seal Groove for Ring Seal ref 53

1шт.

17

101-11400

SNAP RING,#400, 3.771, Ext

1шт.

21

1286083C1

O-RING,1.78mm Thk x 120.37mm ID, -48, 60 Duro

1шт.

22

1286079C1

RING,128.96mm ID x 132mm OD x 2.28mm Thk

1шт.

23

446597A2

PISTON

1шт.

24

1286081C1

O-RING,1.78mm Thk x 69.57mm ID, -39, 60 Duro

1шт.

25

1286076C1

RING,73.46mm ID x 76.5mm OD x 2.28mm Thk

1шт.

28

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

1шт.

29

254105A1

CAGE

Has Drilled Lube Circuit

1шт.

Transmission BSN AJB0373913

1шт.

29

87696449

CAGE

No Drilled Lube Circuit

1шт.

Transmission ASN AJB0373913

1шт.

30

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

31

413665A1

TUBE

2шт.

32

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

4шт.

33

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

1шт.

34

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

1шт.

35

659458R1

ROLLER BEARING,2.25" ID x 0.864"

1шт.

36

105497H

BEARING CUP,96.85mm OD x 15.77mm W

1шт.

37

435718A3

ADJUSTER

Pin, Brake

3шт.

Transmission BSN AJB0365565

1шт.

37

87367860

PIN,12.69mm OD x 60mm L

Pin, Brake

3шт.

Transmission ASN AJB0365565

1шт.

38

87427330

LOCK BOLT,M6 x 1 x 50mm, Cl 10.9

M6 x 50, With Loctite

3шт.

Transmission BSN AJB0365565

1шт.

40

446943A1

SHIM

Kit, Inc. 40

1шт.

40

249776A1

SHIM,0.203mm Thk

2шт.

40

249777A1

SHIM,0.356mm Thk

2шт.

40

249778A1

SHIM,0.508mm Thk

2шт.

40

249779A1

SHIM,0.559mm Thk

2шт.

40

249780A1

SHIM,0.635mm Thk

2шт.

41

87427329

SPACER,57.55mm ID x 72mm OD x 3.12mm L

1шт.

42

375374R1

RING

1шт.

43

435892A2

BRAKE DISC,154.5mm ID x 197mm OD x 7.74mm Thk

1шт.

44

435393A2

PLATE

2шт.

45

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

7шт.

Transmission BSN AJB0365565

1шт.

45

87738316

DISC,107mm ID x 158mm OD x 2.01mm Thk

Separator

8шт.

Transmission ASN AJB0365565

1шт.

46

1997907C1

PLATE

Friction

8шт.

47

435389A1

DISC

1шт.

Transmission BSN AJB0365565

1шт.

48

1285996C1

SNAP RING,151mm OD, Internal

1шт.

49

1342645C3

CLUTCH DISC

CLUTCH DISK

1шт.

50

86989330

TUBE

1шт.

Transmission BSN AJB0365565

1шт.

51

86989331

BRAKE DISC

Pusher

1шт.

Transmission BSN AJB0365565

1шт.

51

87366290

BRAKE DISC,98.63mm ID x 135mm OD x 3.5mm Thk

Pusher, 3.5 mm Thick

1шт.

Use Either 87366284 or 87366290

1шт.

Transmission ASN AJB0365565

1шт.

51

87366284

BRAKE DISC,98.63mm ID x 135mm OD x 3mm Thk

Pusher, 3.0 mm Thick

1шт.

Use Either 87366284 or 87366290

1шт.

52

NSS

NOT SOLD SEPARAT

Shaft

1шт.

53

87690675

RING,Locking, 97.5mm ID x 106.6mm OD x 4.5mm Thk

Seal

1шт.

Выбрано товаров: 72
