Запчасти Case IH MAGNUM 255 (06-29) - REAR AXLE - HOUSING (06) - POWER TRAIN

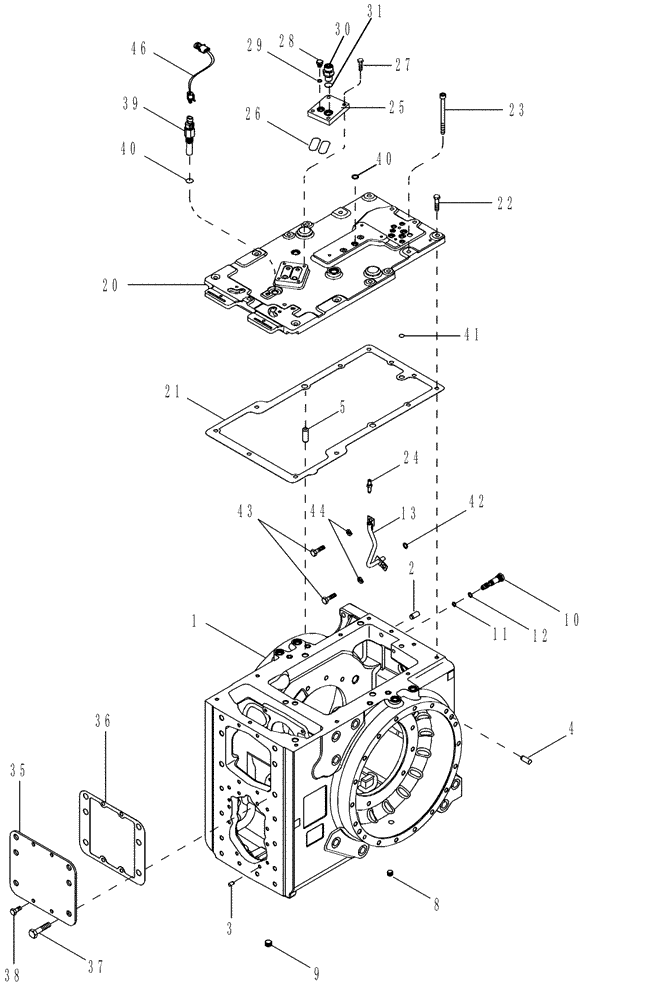

Схема запчастей Case IH MAGNUM 255 - (06-29) - REAR AXLE - HOUSING (06) - POWER TRAIN
26
1
40
21
23
8
4
38
28
36
9
2
27
35
13
12
3
40
39
11
46
29
20
44
25
10
31
5
42
43
37
41
30
24
22

Артикул

Название

Примечание

Количество

1

87713053

HOUSING ASSY.

Inc. 2 - 12

1шт.

2

837-16035

DOWEL,M16 x 35

1шт.

3

837-10020

DOWEL,M10 x 20

2шт.

4

837-16040

DOWEL,M16 x 40

4шт.

5

37-11232

DOWEL,3/4" x 2"

2шт.

8

192791A1

PLUG

1/2 in

2шт.

9

192792A1

PLUG

3/4 in

1шт.

10

411075A1

FITTING

1шт.

11

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

12

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

13

409741A1

TUBE

1шт.

20

87371409

COVER

Rear Frame

1шт.

21

413900A1

GASKET,0.79mm Thk

1шт.

22

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

15шт.

23

863-12150

HEX SOC SCREW,M12 x 150mm, Cl 12.9

4шт.

24

414320A1

FITTING

1шт.

25

87696450

PLATE

1шт.

26

238-6139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 6, 90 Duro

2шт.

27

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

28

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 29

1шт.

29

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

30

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Inc. 31

1шт.

31

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

35

236602A1

COVER

For Tractors Without Three Point Hitch

1шт.

36

379145A2

GASKET,0.79mm Thk

1шт.

37

628-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

6шт.

38

628-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

39

352787A2

SENSOR

Axle Speed

1шт.

Transmission BSN AJB0372635

1шт.

39

87548200

SENSOR

PTO and Transmission Speed

1шт.

Transmission ASN AJB0372635

1шт.

40

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

4шт.

41

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

42

239-5112

O-RING,Rect, .5" ID x .688" OD, Cl 5

1шт.

43

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

44

892-11012

LOCK WASHER,M12

2шт.

46

87631267

WIRE HARNESS

PTO Sensor

1шт.

Transmission ASN AJB0372635

1шт.

Выбрано товаров: 38
