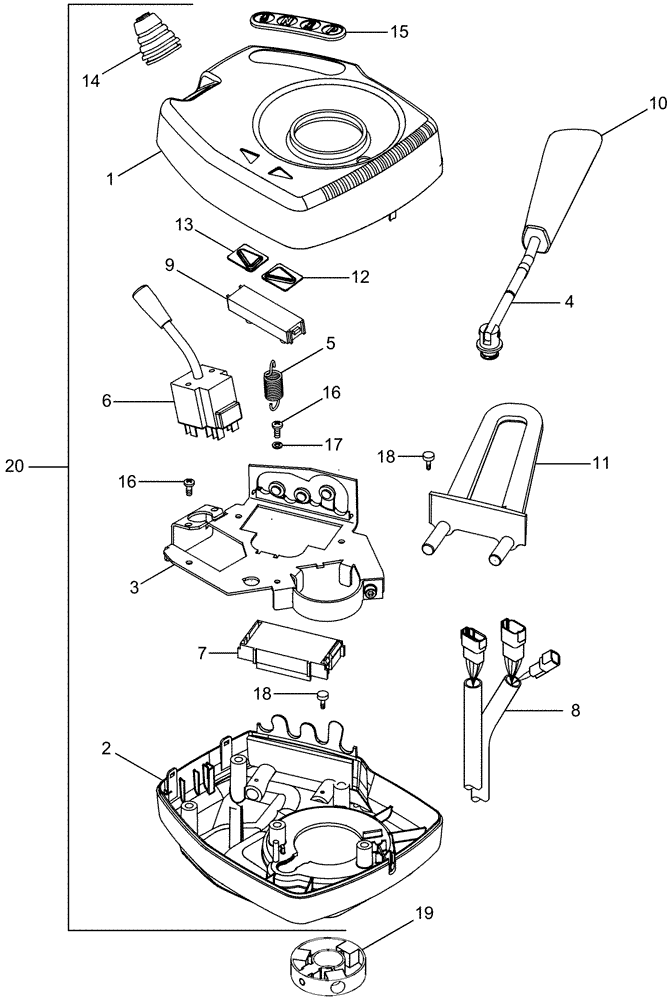

Запчасти Case IH MAGNUM 255 (06-28) - LEVER ASSEMBLY - TRANSMISSION CONTROL (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
325064A1
HOUSING
Upper
1шт.
2
325065A1
HOUSING
Lower
1шт.
3
325362A1
CHASSIS
1шт.
4
325363A1
LEVER
Transmission Control
1шт.
5
250939A1
SPRING
1шт.
6
284777A1
SWITCH
Universal W/ Dipping W/ Self-Cancel
1шт.
7
447256A2
SWITCH
Transmission Control, One Plug on Back, Serial Range: -Z9RZ06497
1шт.
If Part Number 84166771 is Substituted for 447256A2, Harness 84180381 Must Also Be Ordered.
1шт.
7
84180381R
REMAN-SENSOR
MAGNUM 255 TRACTOR (EMERGING MARKET), Transmission Control, One Plug on Back, Serial Range: -Z9RZ06497 (1/06-), Reman for New PN 447256A2
1шт.
7
84180381C
CORE-SENSOR
Return Number
1шт.
7
84166771R
REMAN ELECT CONTROL
MAGNUM 255 Transmission Control, Serial Range: - Z9RZ06497 (1/06-), Reman for New P/N 447256A2
1шт.
7
84166771C
CORE-ELECTRONIC CONT
Return Number
1шт.
7
84166771
MODULE
Transmission Control, Two Plugs on Back, Start Serial: Z9RZ06497
1шт.
7
84166771R
REMAN ELECT CONTROL
MAGNUM 255 Transmission Control, Start Serial Z9RZ06497 (1/06-)
1шт.
7
84166771C
CORE-ELECTRONIC CONT
Return Number
1шт.
8
375681A1
SENSOR
Turn Signal Self-Cancelling Sensor, Serial Range: -Z9RZ06497
1шт.
Use With 447256A2 Switch
1шт.
8
84180381R
REMAN-SENSOR
MAGNUM 255 TRACTOR (EMERGING MARKET), Turn Signal Self-Cancelling Sensor, Serial Range: -Z9RZ06497 (1/06-), Reman for New PN 375681A1
1шт.
8
84180381C
CORE-SENSOR
Return Number
1шт.
8
84180381
SENSOR,Turn Signal Self Cancel
Turn Signal Self-Cancelling Sensor, Start Serial: Z9RZ06497
1шт.
Use With 84166771 Switch
1шт.
8
84180381R
REMAN-SENSOR
MAGNUM 255 TRACTOR (EMERGING MARKET), Turn Signal Self-Cancelling Sensor, Start Serial: Z9RZ06497 (1/06-)
1шт.
8
84180381C
CORE-SENSOR
Return Number
1шт.
9
303465A2
LAMP,12V, 2W
1шт.
10
325533A1
HANDLE
1шт.
11
325066A2
GUARD
1шт.
12
303466A1
SYMBOLS
SYMBOL RH
1шт.
13
303467A1
SYMBOLS
SYMBOL LH
1шт.
14
325068A1
BELLOWS
1шт.
15
358353A1
SYMBOLS
SYMBOL
1шт.
16
840-1410
SCREW,Pan, M4 x 10mm, Cl 4.8
7шт.
17
892-11004
LOCK WASHER,M4
7шт.
18
905974R1
SELF-TAP SCREW,Pan Hd, M2.9 x 13
2шт.
19
253679A1
RING
Magnet
1шт.
20
86993721
CONSOLE
Inc. 1 -18
1шт.
Выбрано товаров: 35
