Запчасти Case IH MAGNUM 255 (06-23) - VALVE ASSEMBLY - TRANSMISSION CONTROL (450729A2) (06) - POWER TRAIN

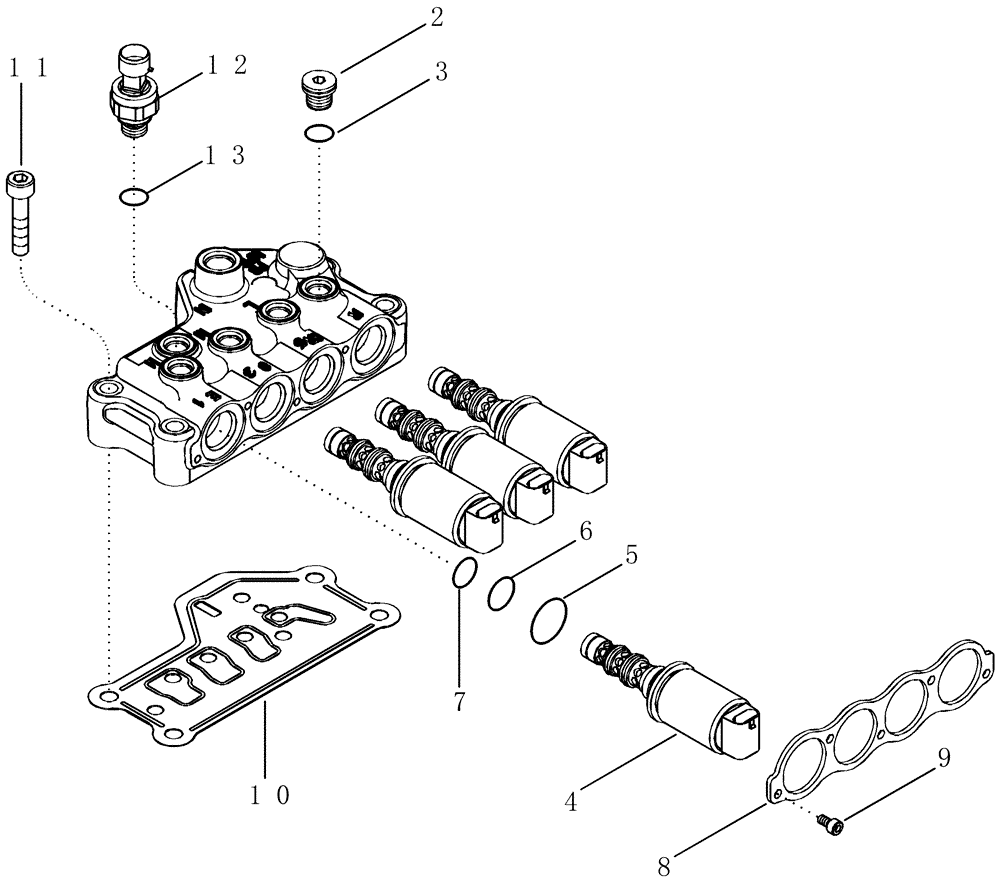

Схема запчастей Case IH MAGNUM 255 - (06-23) - VALVE ASSEMBLY - TRANSMISSION CONTROL (450729A2) (06) - POWER TRAIN
6
13
4
2
10
12
5
7
9
8
3
11

Артикул

Название

Примечание

Количество

450729A2

VALVE

Inc. 1 - 9, 12, 13

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

221576A1

PLUG,Hex Soc, M14 x 1.5, ORB

Incl. 3

4шт.

3

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

87440439

SOLENOID VALVE

Inc. 5 - 7

4шт.

5

87014033

O-RING,0.07" Thk x 0.801" ID, -19, Cl 7, 75 Duro

1шт.

6

238-7016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

1шт.

7

238-7015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 7, 75 Duro

1шт.

8

86985026

COVER,3mm Thk

1шт.

9

864-5010

HEX SOC SCREW,M5 x 10mm, Cl 8.8

6шт.

10

87399290

GASKET,0.92mm Thk

1шт.

11

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

4шт.

12

86987513

SENSOR

Pressure, Inc. 13

1шт.

13

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

Выбрано товаров: 14
