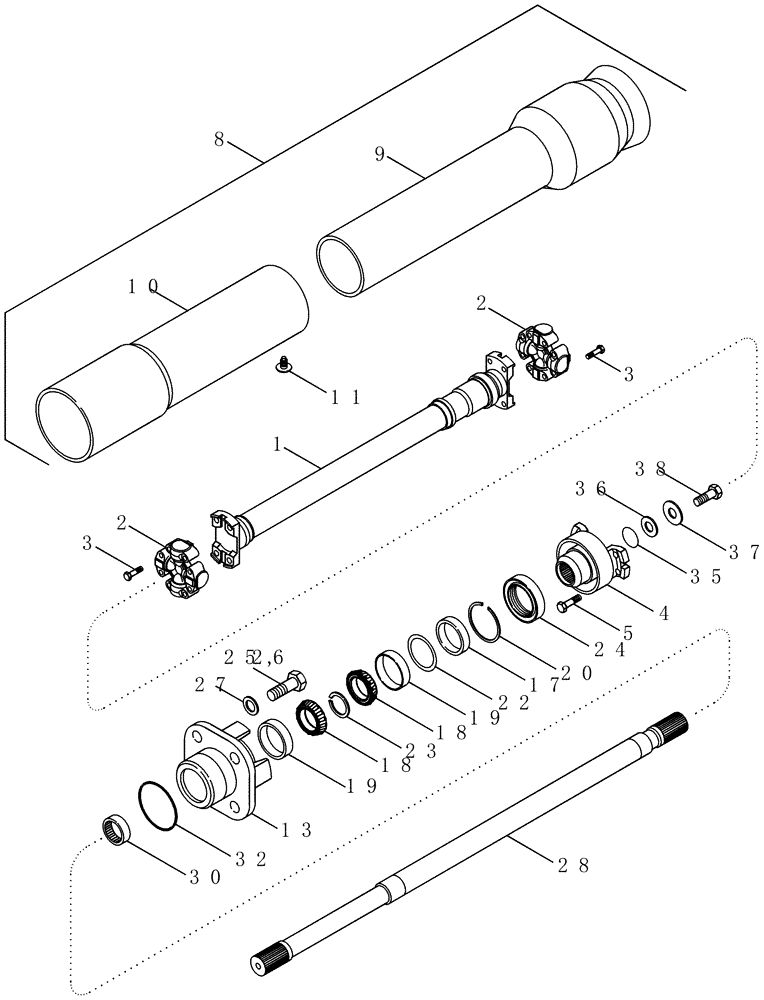

Запчасти Case IH MAGNUM 255 (06-21) - MFD AXLE - DRIVE SHAFT (06) - POWER TRAIN

1

258853A2

DRIVE SHAFT

5C; Inc. 2, 3

1шт.

2

258854A2

U-JOINT SPIDER

2шт.

3

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

4

258855A1

YOKE

1шт.

5

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

8

441554A2

PROTECTIVE SLEEVE

Inc. 9 - 10

1шт.

9

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

10

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

11

93199C1

FASTENER

2шт.

13

199922A2

CAGE

1шт.

17

199923A1

SPACER,60.12mm ID x 73mm OD x 3.12mm L

1шт.

18

235519A1

ROLLER BEARING,41.28mm ID x 19.72mm W

2шт.

19

235521A1

BEARING, CUP,73.44mm OD x 14.63mm W

2-57/64 OD

2шт.

20

199981A1

SNAP RING

1шт.

22

249528A1

SHIM,0.203mm Thk

1шт.

22

199929A1

SHIM,60.5mm ID x 73mm OD x 0.36mm Thk

1шт.

22

199928A1

SHIM,60.5mm ID x 73mm OD x 0.5mm Thk

1шт.

22

199927A1

SHIM,60.5mm ID x 73mm OD x 0.56mm Thk

1шт.

22

222675A1

SHIM,60.5mm ID x 73mm OD x 0.64mm Thk

1шт.

23

222732A1

SNAP RING

1шт.

24

226851A1

OIL SEAL,60.33mm ID x 85.22mm OD x 17.02mm Thk

1шт.

25

628-20060

SCREW,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

26

828-20150

BOLT,Hex, M20 x 2.5 x 150mm, Cl 10.9

2шт.

27

896-12020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

28

87425393

SHAFT

1шт.

30

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

1шт.

32

238-5043

O-RING,0.07" Thk x 3.489" ID, -43, Cl 5, 75 Duro

1шт.

35

238-5220

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

1шт.

36

337680A1

SHIM,17mm ID x 40mm OD x 0.2mm Thk

1шт.

36

222674A1

SHIM,17mm ID x 40mm OD x 0.36mm Thk

1шт.

36

222000A1

SHIM,17mm ID x 40mm OD x 0.5mm Thk

1шт.

36

222001A1

SHIM,17mm ID x 40mm OD x 0.56mm Thk

1шт.

36

222002A1

SHIM,17mm ID x 40mm OD x 0.64mm Thk

1шт.

37

221943A1

WASHER,17.5mm ID x 50mm OD x 6mm Thk

1шт.

38

628-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

1шт.
