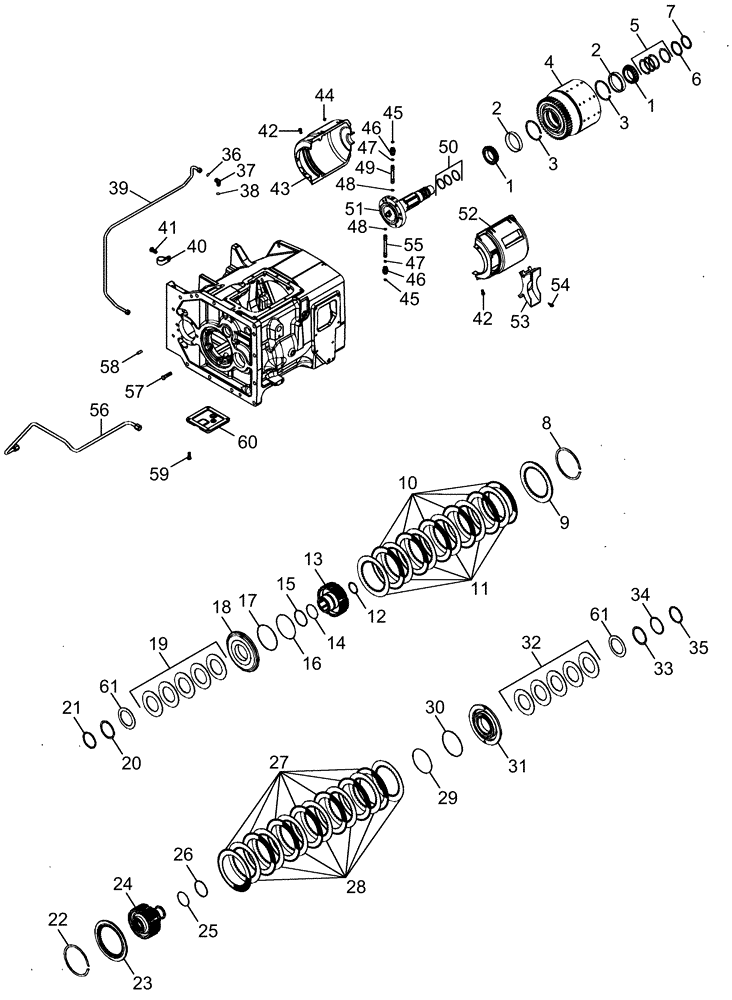

Запчасти Case IH MAGNUM 255 (06-19) - RANGE TRANSMISSION - MFD CLUTCH AND PARK BRAKE - TRANSMISSION BSN AJB367211 (06) - POWER TRAIN

1

630694C1

BEARING CONE,64.98mm ID x 105mm OD x 24mm W

2шт.

2

86577049

TAPERED BEARING,65mm ID x 105mm OD x 24mm W

2шт.

3

101-21412

SNAP RING,#412, 4.430", Int

2шт.

4

87455297

GEAR

1шт.

5

138121A1

SHIM,65mm ID x 80mm OD x 0.2mm Thk

1шт.

5

1997893C1

SHIM,65.5mm ID x 80mm OD x 0.51mm Thk

1шт.

5

1997894C1

SHIM,65.5mm ID x 80mm OD x 0.56mm Thk

1шт.

5

1997895C1

SHIM,65.5mm ID x 80mm OD x 0.64mm Thk

1шт.

6

1277309C1

WASHER,65.25mm ID x 77mm OD x 3mm Thk

1шт.

7

1997891C1

SNAP RING

1шт.

8

87347811

CIRCLIP

1шт.

9

87329141

BACKING PLATE

1шт.

10

87449793

SEPARATOR

Plate

6шт.

11

87348160

PLATE

Friction

6шт.

12

101-11225

SNAP RING,#225, Ext

1шт.

13

87552528

HUB,6T Internal Plus 6 Gaps / 33T External Plus 6 Gaps

1шт.

14

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

1шт.

15

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

16

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

1шт.

17

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

18

87337887

PISTON

1шт.

19

87305967

BELLEVILLE SPRING

5шт.

20

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

84.5 mm ID x 1.50 mm Thk

1шт.

21

87434027

CIRCLIP

1шт.

22

87347811

CIRCLIP

1шт.

23

87329141

BACKING PLATE

1шт.

24

87347832

HUB,24T Internal / 33T External Plus 6 Gaps

1шт.

25

87433971

SEAL,139.65mm ID x 143.05mm OD x 2.87mm Thk

1шт.

26

87037455

O-RING,0.103" Thk x 5.237" ID, -160, Cl 7, 75 Duro

1шт.

27

87348160

PLATE

Friction

6-7шт.

28

87449793

SEPARATOR

Plate

6-7шт.

29

87433970

SEAL,85.4mm ID x 88.8mm OD x 2.87mm Thk

1шт.

30

238-7151

O-RING,0.103" Thk x 2.99" ID, -151, Cl 7, 75 Duro

1шт.

31

87337887

PISTON

1шт.

32

87305967

BELLEVILLE SPRING

5шт.

33

87329116

SHIM,84.5mm ID x 100mm OD x 1.52mm Thk

84.5 mm ID x 1.50 mm Thk

1шт.

34

84278151

RETAINER

1шт.

35

87434027

CIRCLIP

1шт.

36

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

37

700-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Inc. 36, 38

1шт.

38

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

39

87307978

TUBE,0.50" OD

1шт.

40

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

42

87331111

HEX SOC SCREW,M8 x 16mm, Cl 8.8

M8 x 16; 8.8

4шт.

43

87337875

SHIELD

Lower Half

1шт.

44

87332637

CLIP

6шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

46

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Inc. 45, 47

2шт.

47

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

48

238-6013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

4шт.

49

87425392

HYD TUBE,7.5 mm ID x 14.15 mm OD x 132 mm L

1шт.

50

445336A1

SEALING RING,Locking, 50.91mm ID x 54.91mm OD x 2.87mm Thk

SEALRING

3шт.

51

87536356

SHAFT

Inc. 58

1шт.

52

87337873

SHIELD

Upper Half

1шт.

53

87343231

SHIELD

Constant Mesh Gear

1шт.

54

87348536

RIVET,6.4mm OD x 22.8mm L

1шт.

55

120514C2

TUBE,7.47 mm ID, 11.85 mm OD

1шт.

56

124306A1

TUBE,12.7 mm OD, 469, 181 mm Length

1шт.

57

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

6шт.

58

837-10025

DOWEL,M10 x 25

1шт.

59

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

60

87327182

COVER

1шт.

See Figure 07-06

1шт.

61

87639547

SHIM,84.5mm ID x 100mm OD x 1mm Thk

84.5 mm ID x 1.0 mm Thk

1шт.
