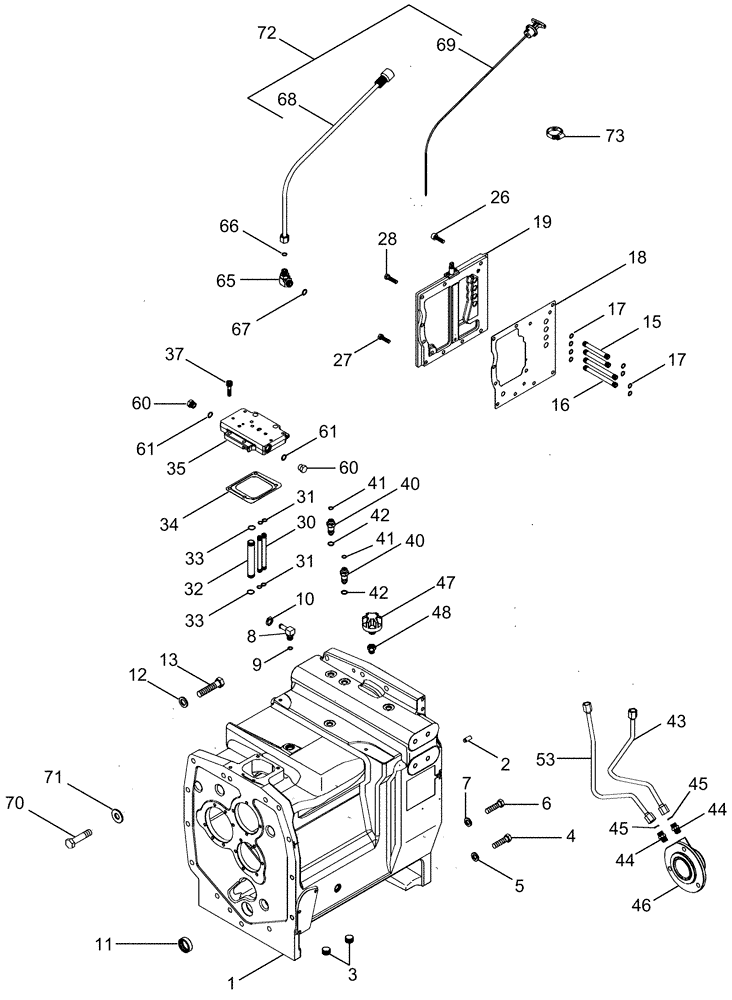

Запчасти Case IH MAGNUM 255 (06-03) - SPEED TRANSMISSION - HOUSING (06) - POWER TRAIN

1

84140470

HOUSING ASSY.

Inc. 2, 3

1шт.

2

837-12030

DOWEL,M12 x 30mm OAL

2шт.

3

192792A1

PLUG

3/4 in

2шт.

4

828-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

7шт.

5

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

7шт.

6

828-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

2шт.

7

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

8

87454069

ELBOW,90 Degree Hose Barb, 1/2" ID x M18 x 1.5 Male ORB

1шт.

9

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10

214-1408

HOSE CLAMP,11.2mm - 19.8mm

1шт.

11

205369R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 15.88mm W

1шт.

12

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

13

87308873

12 PT SCREW,Flg, M16 x 90mm, Cl 12.9

1шт.

15

235976A2

TUBE,8 mm ID, 13 mm OD

2шт.

16

235977A2

TUBE,13 mm OD

2шт.

17

272217

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

8шт.

18

87433655

GASKET,0.92mm Thk

1шт.

19

87433653

PLATE ASSY.

1шт.

See Figure 06-04

1шт.

26

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

2шт.

27

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.

28

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

30

235977A2

TUBE,13 mm OD

2шт.

31

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

4шт.

32

300827A1

TUBE,22.85 mm OD, 141.8 mm Length

1шт.

33

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

2шт.

34

87424932

GASKET,0.92mm Thk

1шт.

35

87444975

MANIFOLD

1шт.

See Figure 06-05

1шт.

37

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

4шт.

40

87341626

FITTING

2шт.

With Creep or 19 Speed/With 50 KPH

1шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

42

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

43

87341628

TUBE,9.53 mm OD

Lube, Serial Range: -AJB0366999

1шт.

With Creep or 19 Speed/With 50 KPH

1шт.

43

87544717

HYD TUBE,7.03 mm ID x 9.53 mm OD

Lube, Start Serial: AJB0366999

1шт.

With Creep or 19 Speed/With 50 KPH

1шт.

44

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 45

2шт.

With Creep or 19 Speed/With 50 KPH

1шт.

45

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

46

87341627

MANIFOLD

1шт.

47

1971726C1

BREATHER,1/4" - 18

1шт.

48

87306797

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

1шт.

53

87341629

TUBE,9.53 mm OD

Pressure, Serial Range: -AJB0366999

1шт.

With Creep or 19 Speed/With 50 KPH

1шт.

53

87544716

HYD TUBE,7.03 mm ID x 9.53 mm OD x 286.72, 124.59 mm L

Pressure, Start Serial: AJB0366999

1шт.

With Creep or 19 Speed/With 50 KPH

1шт.

60

214389

PLUG,3/4" - 16 ORB

2шт.

Without Creep or 19 Speed/Without 50 KPH

1шт.

61

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

65

86579691

90 ELBOW,90 Degree, 13/16"-18 ORFS x M18 x 1.5 ORB

Inc. 66, 67

1шт.

66

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

67

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

68

295149A1

TUBE,0.5" OD, 511, 380 mm Length

1шт.

69

295316A1

DIPSTICK,786.87mm L

1шт.

70

828-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

2шт.

71

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

72

297501A1

GAUGE

Assy., Inc. 68, 69

1шт.

73

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Dipstick

1шт.

74

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

(Not Shown)

4шт.
