Запчасти Case IH MAGNUM 255 (02-03) - DEAERATION SYSTEM (02) - ENGINE

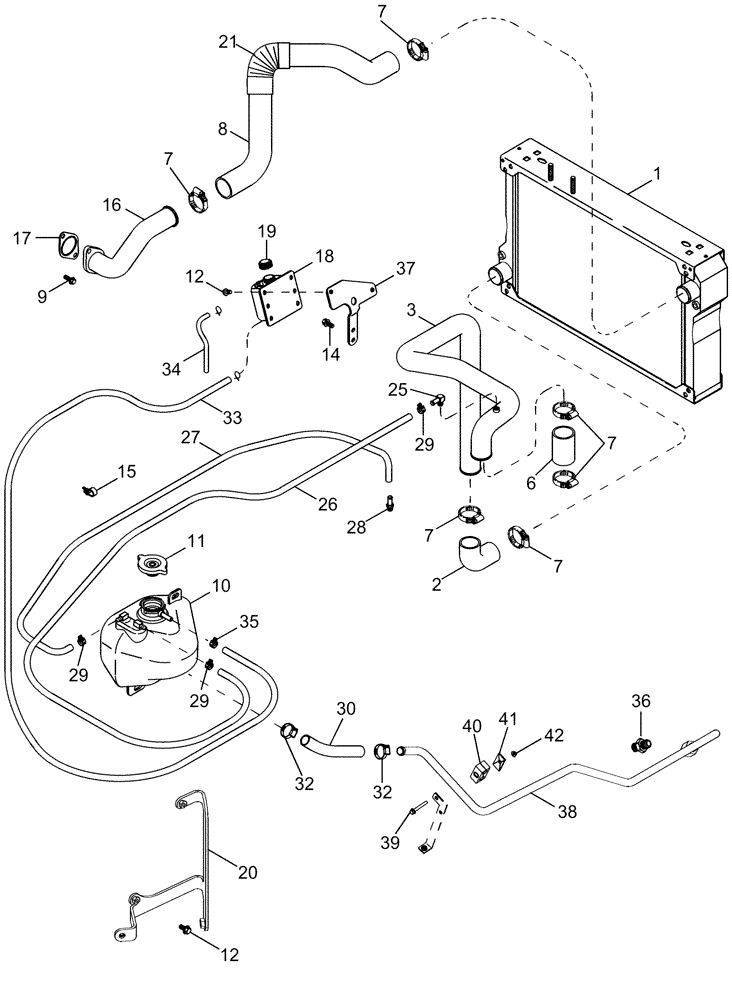

Схема запчастей Case IH MAGNUM 255 - (02-03) - DEAERATION SYSTEM (02) - ENGINE
10
11
32
7
34
7
28
20
40
18
25
39
30
9
26
16
12
29
7
27
1
21
33
41
35
38
32
3
17
6
2
12
15
7
37
19
29
7
36
29
14
8
42

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

Radiator

1шт.

See Figure 02-02

1шт.

2

87381277

HOSE

1шт.

3

87455330

TUBE,437.4 mm L

Radiator

1шт.

6

433405A1

RADIATOR HOSE,56.40 mm ID x 100.00, SAE J20 or SAE 20R4 CLASS D1

2шт.

7

L115548

CLAMP,57.15mm - 79.38mm

6шт.

8

87733724

HOSE

Engine, Coolant outlet, Inc. 21, If Used

1шт.

8

84246483

HOSE

Engine, Coolant Outlet, With Spring Insert, Inc. 21, If Used

1шт.

9

87403515

BOLT

M8 x 20; 8.8

2шт.

10

87413715

RESERVOIR

Deaeration Tank

1шт.

11

A170241

RADIATOR CAP

15 psi

1шт.

12

555-1

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

14

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

15

87445732

CLAMP

3шт.

16

87430751

TUBE,134, 115 mm L

1шт.

17

J945603

GASKET,1.65mm Thk

1шт.

18

L127093

RESERVOIR

1шт.

19

238903A1

FILLER CAP

1шт.

20

87339308

BRACKET

Deaeration Tank

1шт.

21

87733645

SLEEVE,64mm ID x 76.2mm OD x 540mm L

Protective

1шт.

25

217-130

ELBOW,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

26

87442539

HOSE,6.35 mm ID x 1490.00 mm, SAE 30R7

1шт.

Cut From 382997C2

1шт.

27

87525458

HOSE,6.35 mm ID x 1790.00 mm, SAE 30R7

1шт.

Cut From 382997C2

1шт.

28

217-150

FITTING,1/4" Hose Barb x 1/8" Male NPTF

1шт.

29

87589798

HOSE CLAMP

7/16

6шт.

30

87395776

HOSE

Deaeration Tank to Engine, 249 mm (9.8 in)

1шт.

Cut From 429211A1

1шт.

32

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

33

87338147

RADIATOR HOSE,6.35mm ID x 2225mm L

1шт.

Cut From 382997C2

1шт.

34

242070A1

HOSE,7.9mm ID x 450mm L, SAE 30R7

1шт.

35

214-1308

HOSE CLAMP,#8, 1/2", Spring

1шт.

36

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

37

87381548

BRACKET

Coolant Recovery Bottle

1шт.

38

87746650

TUBE,.75" OD

1шт.

39

844-8060

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

1шт.

40

118576A1

CLAMP

1шт.

41

1347127C1

PLATE

Clamp

1шт.

42

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

Выбрано товаров: 41
