Запчасти Case IH MAGNUM 255 (05-11) - FRONT AXLE PLANETARIES AND HUB - MFD, 12 BOLT HUB (05) - STEERING

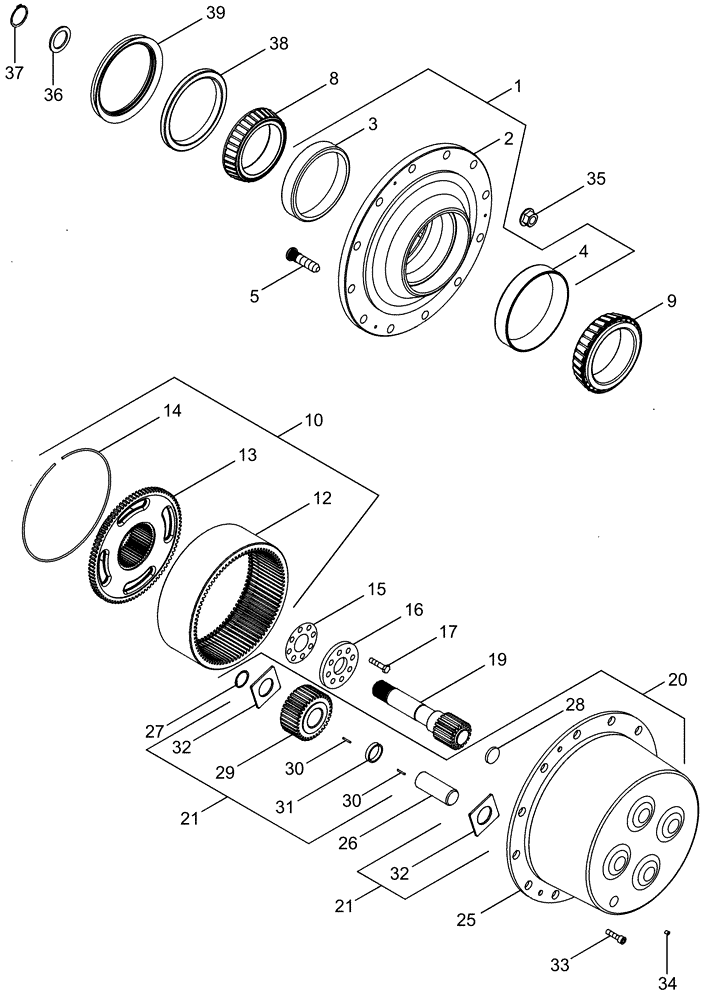

Схема запчастей Case IH MAGNUM 255 - (05-11) - FRONT AXLE PLANETARIES AND HUB - MFD, 12 BOLT HUB (05) - STEERING
38
19
25
29
21
30
35
27
30
17
39
26
33
8
21
14
15
10
2
37
4
28
9
31
34
32
32
5
1
12
13
3
36
20
16

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

HUB ASSEMBLY, Order Components

2шт.

2

295168A1

HUB

2шт.

Axle BSN Z7RZ02024

1шт.

2

87390163

HUB

2шт.

Axle ASN Z7RZ02024

1шт.

3

L31698

BEARING CUP

7-3/16 OD x 1-15/16 inch wide (183 x 49 MM)

2шт.

4

135649A1

BEARING CUP,196.85mm OD x 38.1mm W

2шт.

5

297495A1

STUD,Wheel Bolt, M20 x 1.5 x 79.5mm

24шт.

8

311042A1

BEARING ASSY,123.83mm ID x 38.1mm W

2шт.

9

135648A1

ROLLER BEARING,133.35mm ID x 46.04mm W

2шт.

10

281985A1

RING GEAR,Assembly, Planetary

Inc. 12 - 14

2шт.

12

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

13

NSS

NOT SOLD SEPARAT

Hub

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

15

302180A1

SHIM KIT

Inc. 15

2шт.

15

NSS

NOT SOLD SEPARAT

Shim .002

5шт.

15

NSS

NOT SOLD SEPARAT

Shim .003

5шт.

15

NSS

NOT SOLD SEPARAT

Shim .005

5шт.

15

NSS

NOT SOLD SEPARAT

Shim .010

5шт.

15

NSS

NOT SOLD SEPARAT

Shim .020

5шт.

15

NSS

NOT SOLD SEPARAT

Shim .030

5шт.

16

281986A1

LARGE PLATE

PLATE, LARGE

2шт.

17

628-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

16шт.

19

281982A3

SUN GEAR,Planetary Drive, HD, 18T

2шт.

19

281982A3R

REMAN-GEAR

SUN GEAR

2шт.

19

281982A3C

CORE-GEAR

RETURN NUMBER

2шт.

20

302174A1

GEAR WHEEL

Inc. 25 - 32

2шт.

20

302174A1R

REMAN-AXLE

Reman Inc. 25 - 32

2шт.

20

302174A1C

CORE-AXLE

Core Return Number

2шт.

21

316328A1

FIP KIT

Inc. 29 - 32

1шт.

25

NSS

NOT SOLD SEPARAT

Flange

1шт.

26

302196A1

PIN,38.1mm OD x 100mm L

4шт.

27

100-21150

SNAP RING,1.50", Int, #150

4шт.

28

302184A1

HOLE PLUG BUTTON

1шт.

29

NSS

NOT SOLD SEPARAT

Gear

4шт.

30

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

Bearing

328шт.

31

NSS

NOT SOLD SEPARAT

Spacer

4шт.

32

NSS

NOT SOLD SEPARAT

Washer, Thrust

8шт.

33

864-6020

HEX SOC SCREW,M6 x 20mm, Cl 8.8

6шт.

34

221-887

PLUG

3/4

2шт.

35

253212A1

NUT,M20 x 1.5, Class 10

24шт.

36

87403378

THRUST WASHER

1шт.

37

87403379

RING, SNAP

RING SNAP

1шт.

38

87390190

SEAL KIT

Hub Seal

1шт.

39

87390352

SEAL KIT

V-Ring Seal

1шт.

Выбрано товаров: 45
